Summary of Contents for Silent Call Communications Sidekick II SK09214-2

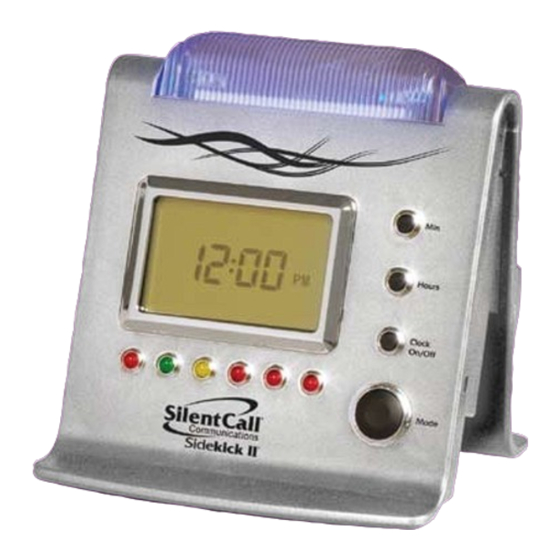

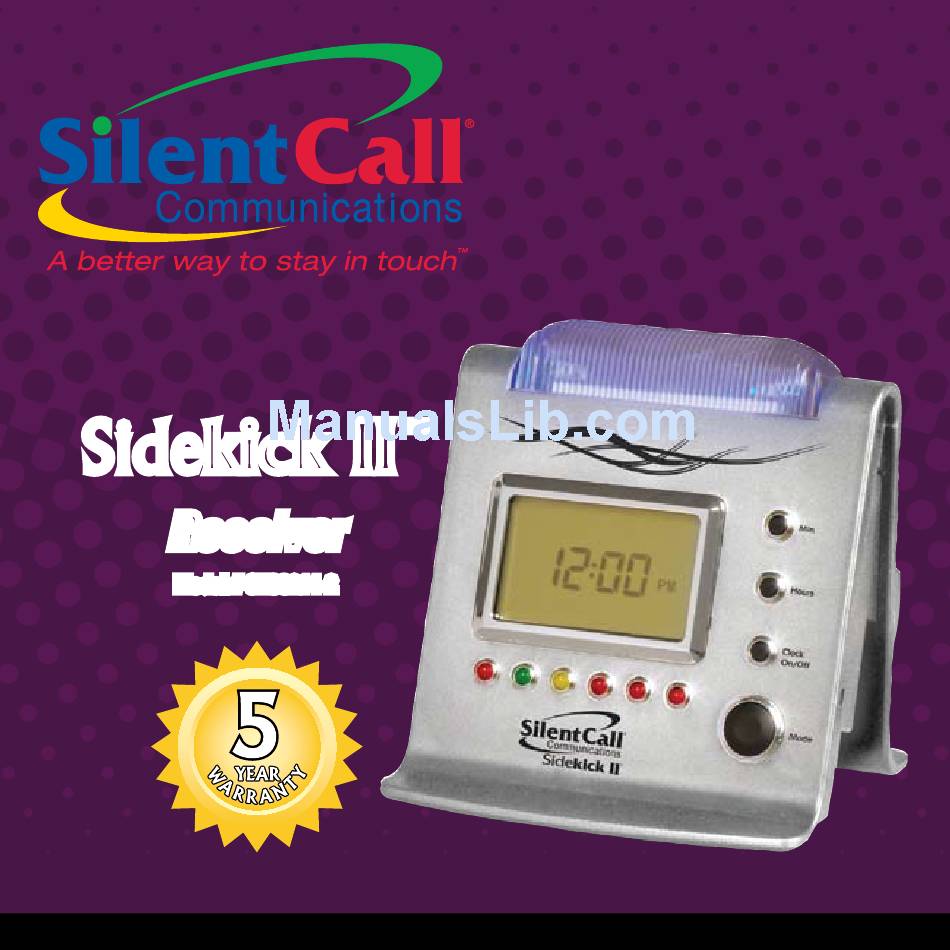

- Page 1 www.silentcall.com Sidekick II Sidekick II ™ ™ Receiver Receiver Model # SK09214-2 Model # SK09214-2 318MHz...
-
Page 3: Setup And Operation
Sidekick II Receiver Model # SK09214-2 (318 MHz Receiver) Setup and Operation: 1. Plug the power supply pin jack into the power supply terminal located next to the Power ON/ OFF switch on the back of the receiver. (see page 5 for diagram) Plug power supply into a wall electrical outlet. -
Page 4: Setting Alarm Clock
2. Turn the Power ON at the ON/OFF SWITCH on the back of the receiver. The front panel display will show the time 11:59AM. A blue light will be visible from the Strobe lens. The blue light indicates that the unit’s AC power is on. An amber tone light will appear if the unit is in battery backup mode. - Page 5 Remove screw to gain access to battery backup compartment. 2 AAA Batteries Clock Battery Backup Accessory Battery Backup 12V NI-CAD 300mA Compartment & Connector Battery Backup On/Off Switch On/Off Antenna Switch Telephone Power Supply Vibrator Jack Interface Input Terminal...
-
Page 6: Lcd Display
6. To turn the ALARM on or off, press and release the “Alarm Clock” button. When the alarm is turned ON the BELL ICON will appear on the screen. LCD Display: The LCD Display screen is back lighted. The back light brightness is automatically controlled by the light level in the room. - Page 7 transmitters When the Sidekick II Receiver detects an incoming signal from any of the Silent Call 318 MHz transmitters it will notify you by: Transmitter Type Icon Notification Alarm Clock Bell Icon, Strobe flashes (Vibrator Optional) Sound Monitor Transmitter Sound Icon, Orange LED, Strobe flashes (Vibrator Optional) Telephone Transmitter Phone Icon, Green LED, Strobe flashes...
- Page 8 transmission Range: Transmission range refers to the distance a Silent Call Transmitter can communicate with the Sidekick II Receiver. Range is measured in an outdoor environment without obstructions from metal objects or buildings. The range for the Sidekick II Receiver is up to 500 feet. The actual range inside a building will vary depending on many factors outside of one’s control.
-
Page 9: All Erase
During that time, the unit will be repaired or replaced free of charge when shipped prepaid to Silent Call Communications. This warranty is void if the defect is caused by customer abuse or neglect. We honor the smoke detector manufacturer’s warranty for... - Page 12 5095 Williams Lake Road Waterford, MI 48329 Phone 800-572-5227 v/tty www.silentcall.com...
