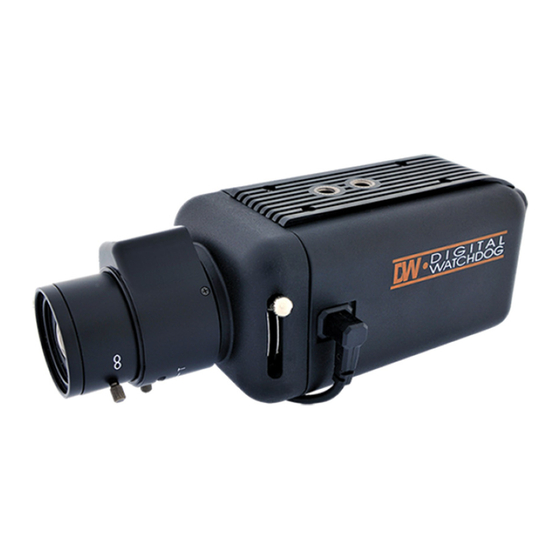

Starlight MPA Box Camera
DWC-C261T
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
06252014

Advertisement

loading
Need help?

Need help?

Do you have a question about the DWC-C261T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DW DWC-C261T

Summary of Contents for DW DWC-C261T

  • Page 1 Starlight MPA Box Camera DWC-C261T ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 06252014...
  • Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Mount Installation Instructions Adjustment of Focus Module OSD Menu 11-23 Troubleshooting Warranty Information 25-26 Specifications 27-28...
  • Page 4 FEATURES* 1/3" Sony 1.3M CMOS 820 TV Lines [B/W], 800 TV Lines [Color] Compatible with C/ CS Mount Lenses True Day & Night with IR Cut Filter 3D DNR (3D Digital Noise Reduction) WDR (Wide Dynamic Range) Star-Light (Super Low Light Technology) HME (Highlight Masking Exposure) Defog (Extreme Weather Image Copmensation) Digital Quick Zoom &...
  • Page 5 PARTS & DESCRIPTION* Lens Connector Box Camera Moun ing Bracket Connectors A-Iris Socket Back Focus Alarm +/- RS485 Connector OSD Control Arrows and Enter Buttons Power LED BNC Video Output AC / DC Power Input Terminal Block...
  • Page 6 DIMENSIONS IN MILLIMETERS (IN)* 47.6 14.5(0.57”) (1.87”) 62.0(2.44”) 119.7(4.71”) 119.7(4.71”) 131.8(5.19”)

  • Page 7: Inside The Box

    INSIDE THE BOX* Included with C2 Box Camera Color Box User Manual Mini-DIN Connector (For Video or DC Auto Iris Lens) Adapter Ring for “C” Type Lenses Two-Port Terminal Block (for AC or DC Power Connection) Cable Extension for Alarm In / Out and RS-485...

  • Page 8: Installation

    INSTALLATION* Using an appropriate mounting bracket, mark and drill the necessary holes to mount the bracket to a wall or ceiling. Attach the mounting bracket to the surface using machine screws. Attach the box camera to the moun ing bracket. Adjust the camera’s position.
  • Page 9 INSTALLATION* Connect an appropriate lens to he camera lens connector by twisting he lens clockwise. The camera is compatible with any C or CS mount lens. For “C” lenses, please use the provided Adapter Ring. See page 10 for details. *Lens is not included. Connect the lens’...

  • Page 10: Adjustment Of Back Focus

    ADJUSTMENT OF BACK FOCUS* Please make sure the lens is C or CS Mount. To use C Mount lens, please insert the included C ring to the lens; then insert the lens. To use CS Mount lens, fix the lens directly into the front camera without the C ring. Focus Adjustment To adjust the focus, slide the focus lever on the side of the front camera.

  • Page 11: Module Osd Menu

    MODULE OSD MENU* EXPOSURE COLOR DAY & NIGHT FUNCTION LENS WB BAL. D&N MODE SHARPNESS MANUAL / DC ATW / AWB / PUSH / AUTO / COLOR / B&W 0 ~ 10 BACKLIGHT CONTROL GAMMA MANUAL OFF / HME / BLC / WDR AUTO / EXT.
  • Page 12 EXPOSURE LENS Manual mode supports the fixed board lens or the manual Manual iris lens. DC mode supports the auto-iris varifocal lens. NOTE: Both MANUAL and DC mode have FOCUS ADJ. You can adjust the focus by finding the highest number on he FOCUS SET. DC Lens Submenu MANUAL Lens Submenu Mode: MANUAL: Set the lens mode to Normal or Deblur.
  • Page 13 EXPOSURE BACKLIGHT HIGHLIGHT MASKING EXPOSURE HME allows objects to appear clearly on the screen by masking extremely bright areas. To setup HME, set the level and mode. The lower the setting, the darker the masking areas have to be. Select from: 0 ~ 20. Mode: Select when to enable HME settings.
  • Page 14 EXPOSURE DYNAMIC RANGE COMPRESSOR DRC enables dark areas in images to become more visible wi hout overexposing the bright areas to create one perfect image. Select from: Off, Low, Middle, or High NOTE: If WDR or DEFOG are enabled, the DRC set ings are set automatically and will not be available for adjustment.
  • Page 15 COLOR WB MODE Auto Tracking White Balance Control mode compensates for color temperature changes between 2400K and 11000K Auto White Balance Control mode compensates for color temperature changes lower than 2000K and higher than 15000K PUSH Push fixes the white balance based on he current lighting automa ically. MANUAL Users can control the white balance manually by changing RED GAIN and BLUE GAIN (see below).
  • Page 16 DAY & NIGHT D&N MODE AUTO / In AUTO mode, the camera switches between day and night automatically depending COLOR / on light level. If COLOR is selected, the camera always stays in day/color mode. B&W If B&W is selected, camera always stays in night/B&W mode. CONTROL Select if he Day/ Night switch will be based on the AGC levels (AUTO), or using IR LED lights (EXT.)
  • Page 17 DAY & NIGHT CONTROL (CONT.) - CDS: The camera’s Day/ Night switch will be set according to the LED board in the camera. * CDS Threshold: Marks the light level at which the camera will switch between color and B/W. The lower he value, the camera will require less light (more darkness) to switch to Night Mode.
  • Page 18 FUNCTION SHARPNESS Sets he image sharpness. The higher the number, the sharper the image. 0 ~ 10 GAMMA Select the desired gamma level. 0.55 is default setting. 0.45 ~ 0 65 MIRROR / FLIP Reflects the camera horizontally. M RROR FLIP Reflects the camera vertically.

  • Page 19: Motion Set

    MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. MOTION OFF / ON Select to enable or disable the camera’s motion detection. If ON is selected: DET. SETTINGS Use this submenu to adjust the motion detection’s sensi ivity, detection dwell time, Motion Estimate, and setup a Signal Output Action: - Sensitivity: The smaller he movement you want to detect, the higher the sensitivity value must be.
  • Page 20 MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. ALARM Select to enable or disable he camera’s motion detection, and select which conditions will trigger the alarm from the following op ions: - Shaking (ON / OFF): “Camera Moving!!”...
  • Page 21 PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. PRIVACY SET - Select the zone number you want to setup. - To enable it, turn the display option ON. - H-POS: Move he Zone position Left or right.
  • Page 22 SETUP COMMUNICATION Use this setup menu to adjust the camera’s ID and Baudrate. The camera’s default Protocol is Pelco-D. - CAM ID: Provide an ID number for the camera ( 0 ~ 255 ). - BAUDRATE: 9600bps is default. Select the baudrate from the following options: 2400/4800/9600/57600/115200 bps.
  • Page 23 EXIT EXIT SAVE Exit the OSD menu after saving the recent changes. INITIAL Exit the OSD menu after resetting the camera to factory default.

  • Page 24: Troubleshooting

    TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.

  • Page 25: Warranty Information

    WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defec ive, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
  • Page 26 LIMITS & EXCLUSIONS* There are no express warranties except as listed. The warrantor will not be liable for incidental or consequential damages (including damage to recording media without limitation) resulting from the use of these products or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for particular purpose, are limited to the applicable warranty period set forth above.

  • Page 27: Specifications

    SPECIFICATIONS* VIDEO Image Sensor 1/3” Sony 1.3 Mega Pixel CMOS Sensor 1280 (H) x 1024 (V) Active Pixels Scanning System 2 : 1 Interlace Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal Horizontal Resolution 820 TV Lines [B/W], 800 TV Lines [Color] Minimum Illumination F1.2 (30IRE): 0.14 Lux [Color] F1.2 (30IRE): 0 03 Lux [B/W]...
  • Page 28 SPECIFICATIONS* OPERATIONAL Intelligent Motion Detection Digital Quick Zoom Motion Detection 4 Motion Regions Privacy Zones 16 Programmable Privacy Masks Sharpness 0 ~ 10 Gamma 0.45 ~ 0.65 De-Fog OFF/ ON ENVIRONMENTAL Operating Temperature C ~ 60 C (-4 F ~ 140 Operating Humidity Less than 90% (Non-Condensing) ELECTRICAL...
  • Page 29 MEMO*...
  • Page 30 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm EST...
