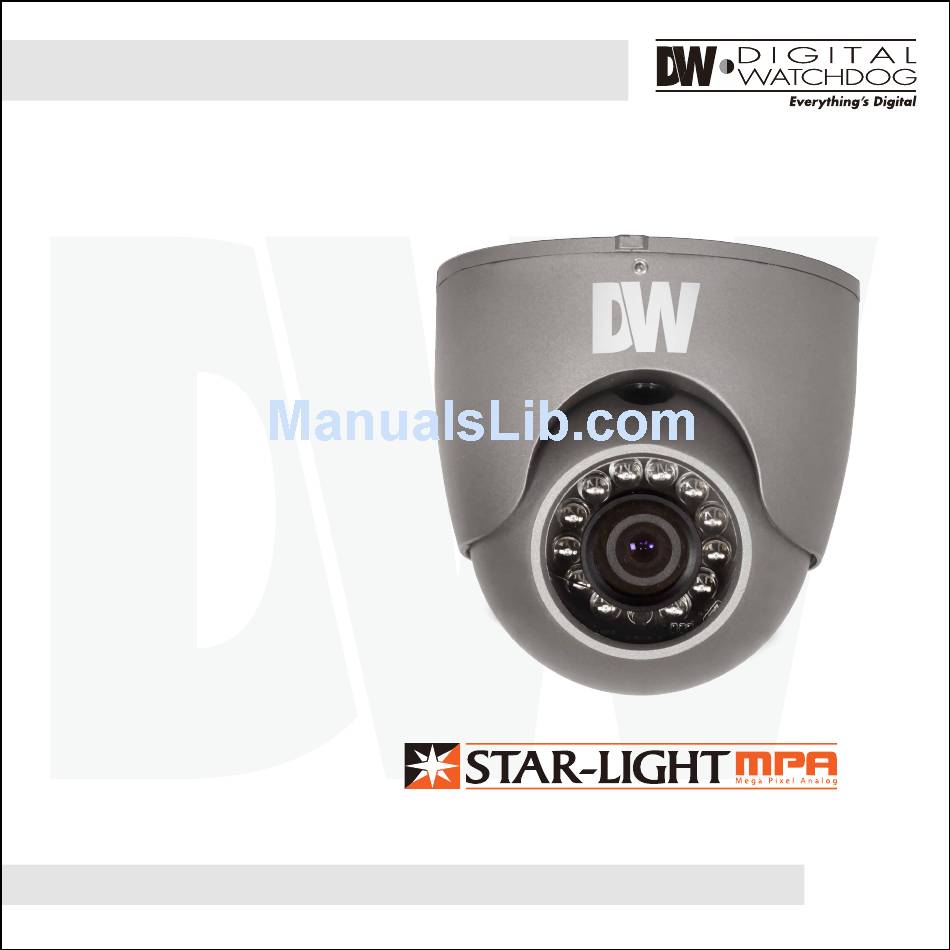

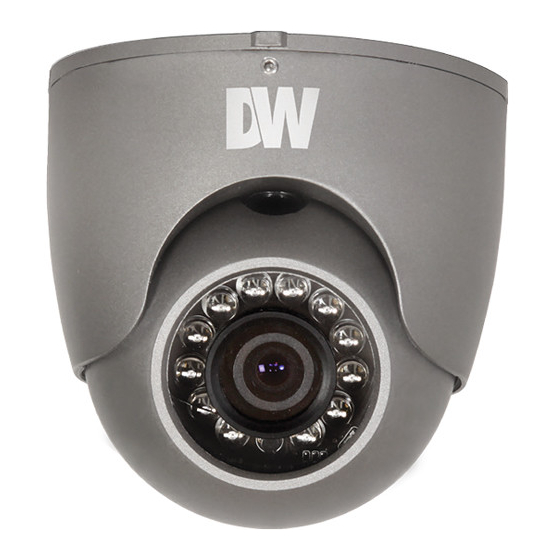

Ball Camera
DWC-BL2651TIR
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
12172014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWC-BL2651TIR and is the answer not in the manual?

Questions and answers

Related Manuals for DW DWC-BL2651TIR

Summary of Contents for DW DWC-BL2651TIR

  • Page 1 Ball Camera DWC-BL2651TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 12172014...
  • Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.

  • Page 3: Table Of Contents

    Table of Contents TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Mount Installation Instructions Connecting to Monitors Control Board Module OSD Menu 11-22 Troubleshooting Warranty Information 24-25 Specifications 26-27...
  • Page 4 FEATURES* 1/3” Sony 1.3MP CMOS, 820TVL [B/W], 800TVL [Color] QuickZoom™ Full Frame 8x Digital Zoom with no Loss in Resolution Star-Light™ Super Low Light Technology Wide Dynamic Range (WDR) 3.6mm Fixed Lens Smart IR™ with Intelligent Camera Sync. 50ft Range 3D Digital Noise Reduction (DNR) Highlight Masking Exposure (HME) De-Fog™...

  • Page 5: Parts And Descriptions

    PARTS & DESCRIPTION* Ball Cover Gap Sponge Ball Base Set Screw Camera’s Lens Ball Camera Module OSD Plug...

  • Page 6: Dimensions

    DIMENSIONS IN MILLIMETERS (IN)* 46.0 1.81” 80.0 3.15”...

  • Page 7: Inside The Box

    4 Machine Screws and 4 Dry Wall Anchors Secondary Video-BNC Cable External OSD Controller Ball Camera DWC-BL2651TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 07232013...

  • Page 8: Installation Instructions

    INSTALLATION INSTRUCTIONS* 1. To disassmble the camera, uncrew the small screw at the base of the camera’s housing. The ball with the camera module will get loose and separate from the ball housing. 2. Use the camera or mounting template to mark and drill the necessary holes in the wall or ceiling.

  • Page 9: Connecting To Monitors

    CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC CCTV Monitor Monitor Power Connection - 12VDC All cameras are equipped with a second video output for on-site configuration.

  • Page 10: Control Board

    CONTROL BOARD* The Ball camera includes an external OSD Joystick to control the camera’s OSD setup menu. Unscrew the protecting cover at the top of the camera’s ball module. Connect the included external OSD Joystick Controller. Use the Joystick to control the camera’s OSD options.

  • Page 11: Module Osd Menu

    MODULE OSD MENU* EXPOSURE COLOR DAY & NIGHT FUNCTION LENS WB BAL. D&N MODE SHARPNESS MANUAL ATW / AWB / PUSH / AUTO / COLOR / B&W 0 ~ 10 BACKLIGHT CONTROL GAMMA MANUAL OFF / HME / BLC / WDR COLOR GAIN AUTO / EXT.
  • Page 12 EXPOSURE LENS Manual mode supports the fixed board lens or the manual Manual iris lens. NOTE: MANUAL mode has FOCUS ADJ. You can adjust the focus by finding the highest number on the FOCUS SET. MANUAL Lens Submenu - Mode: Set the lens mode to Normal or Deblur. - Brightness: Adjust the camera’s brightness from 0~20.
  • Page 13 EXPOSURE BACKLIGHT HIGHLIGHT MASKING EXPOSURE HME allows objects to appear clearly on the screen by masking extremely bright areas. To setup HME, set the level and mode. The lower the setting, the darker the masking areas have to be. Select from: 0 ~ 20. Mode: Select when to enable HME settings.
  • Page 14 EXPOSURE DYNAMIC RANGE COMPRESSOR DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image. Select from: Off, Low, Middle, or High NOTE: If WDR or DEFOG are enabled, the DRC settings are set automatically and will not be available for adjustment.
  • Page 15 COLOR WB MODE Auto Tracking White Balance Control mode compensates for color temperature changes between 2400K and 11000K Auto White Balance Control mode compensates for color temperature changes lower than 2000K and higher than 15000K PUSH Push fixes the white balance based on the current lighting automatically. MANUAL Users can control the white balance manually by changing RED GAIN and BLUE GAIN (see below).
  • Page 16 DAY & NIGHT D&N MODE AUTO / In AUTO mode, the camera switches between day and night automatically depending COLOR / on light level. If COLOR is selected, the camera always stays in day/color mode. B&W If B&W is selected, camera always stays in night/B&W mode. CONTROL Select if the Day/ Night switch will be based on the AGC levels (AUTO), or using IR LED lights (EXT.)
  • Page 17 DAY & NIGHT CONTROL (CONT.) - CDS: The camera’s Day/ Night switch will be set according to the LED board in the camera. * CDS Threshold: Marks the light level at which the camera will switch between color and B/W. The lower the value, the camera will require less light (more darkness) to switch to Night Mode.
  • Page 18 FUNCTION SHARPNESS Sets the image sharpness. The higher the number, the sharper the image. 0 ~ 10 GAMMA Select the desired gamma level. 0.55 is default setting. 0.45 ~ 0.65 MIRROR / FLIP Reflects the camera horizontally. MIRROR FLIP Reflects the camera vertically. Mirror / Flip OFF Mirror ON Flip ON...

  • Page 19: Motion Set

    MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. MOTION OFF / ON Select to enable or disable the camera’s motion detection. If ON is selected: DET. SETTINGS Use this submenu to adjust the motion detection’s sensitivity, detection dwell time, Motion Estimate, and setup a Signal Output Action: - Sensitivity: The smaller the movement you want to detect, the higher the sensitivity value must be.
  • Page 20 MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. ALARM Select to enable or disable the camera’s motion detection, and select which conditions will trigger the alarm from the following options: - Shaking (ON / OFF): “Camera Moving!!”...

  • Page 21: Mask Color

    PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. PRIVACY SET - Select the zone number you want to setup. - To enable it, turn the display option ON. - H-POS: Move the Zone position Left or right.
  • Page 22 SETUP COMMUNICATION Use this setup menu to adjust the camera’s ID and Baudrate. The camera’s default Protocol is Pelco-D. - CAM ID: Provide an ID number for the camera ( 0 ~ 255 ). - BAUDRATE: 9600bps is default. Select the baudrate from the following options: 2400/4800/9600/57600/115200 bps.
  • Page 23 EXIT EXIT SAVE Exit the OSD menu after saving the recent changes. INITIAL Exit the OSD menu after resetting the camera to factory default.

  • Page 24: Troubleshooting

    TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.

  • Page 25: Warranty Information

    WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
  • Page 26 LIMITS & EXCLUSIONS* There are no express warranties except as listed. The warrantor will not be liable for incidental or consequential damages (including damage to recording media without limitation) resulting from the use of these products or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for particular purpose, are limited to the applicable warranty period set forth above.

  • Page 27: Specifications

    SPECIFICATIONS* VIDEO Image Sensor 1/3” Sony 1.3 Mega Pixel CMOS Sensor 1280 (H) x 1024 (V) Active Pixels Scanning System 2 : 1 Interlace Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal Horizontal Resolution 820 TV Lines [B/W], 800 TV Lines [Color] Minimum Illumination 0.14Lux (F1.2 , 30IRE) at Color 0.03Lux (F1.2 , 30IRE) at TDN(B/W)
  • Page 28 OPERATIONAL Auto Gain Control 0 ~ 20 Intelligent Motion Detection Digital Quick Zoom Motion Detection 4 Motion Regions Privacy Zones 16 Programmable Privacy Masks Enhanced Day & Night Function LED Operation point selection, External LED ON/OFF Control Sharpness 0 ~ 10 Gamma 0.45 ~ 0.65 De-Fog...
  • Page 29 MEMO*...
  • Page 30 MEMO*...
  • Page 31 MEMO*...
  • Page 32 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm EST...
