MULTIMEDIA SPEAKER SYSTEM

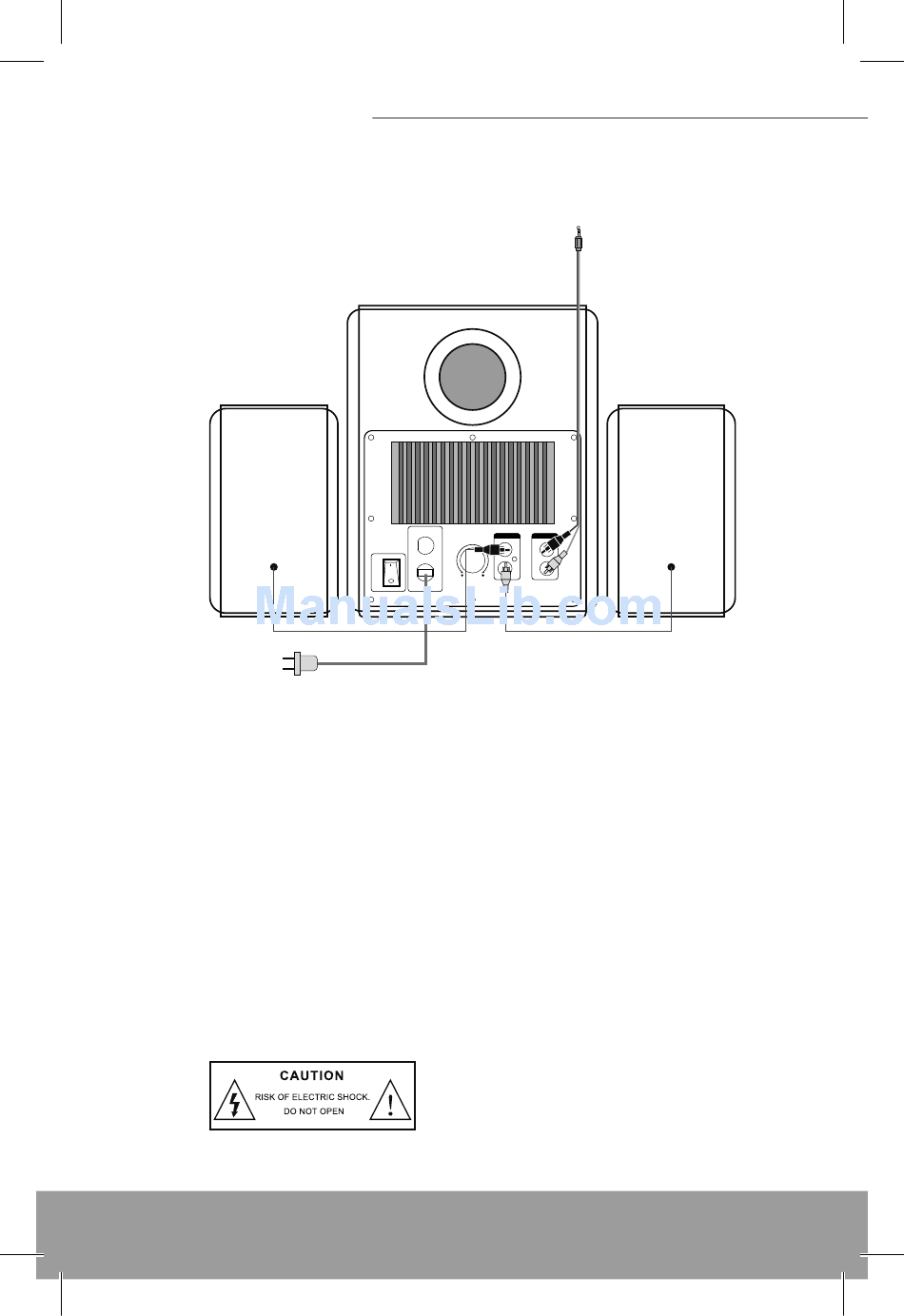

System Connection

To sound card, CD, MP3, etc
R
ON
OFF
1. Connect the satellite speaker cables to the L&R audio output
sockets on the back of the subwoofer, then put the left channel
satellite speaker on the left and the right satellite on the right.
2. Connect the RCA plug of the audio cable (one end with RCA
plug, the other end with 3.5mm stereo plug) to the audio input
socket on the back of the subwoofer , the 3.5mm stereo plug to
the audio output socket of PC or other audio equipment.
3. Make sure all the cable are connected correctly, then connect
the power cord to AC outlet.
Important Safety
Instructions
do not expose the apparatus to rain or moisture.
SUBWOOFER
FUSE
T400mAL250V
AUDIO OUTPUT AUDIO INPUT
BASS
R R
L L
+ +
AC IN
Caution:
To reduce the risk of electric shock,
do not dismantle the apparatus and
L
5
