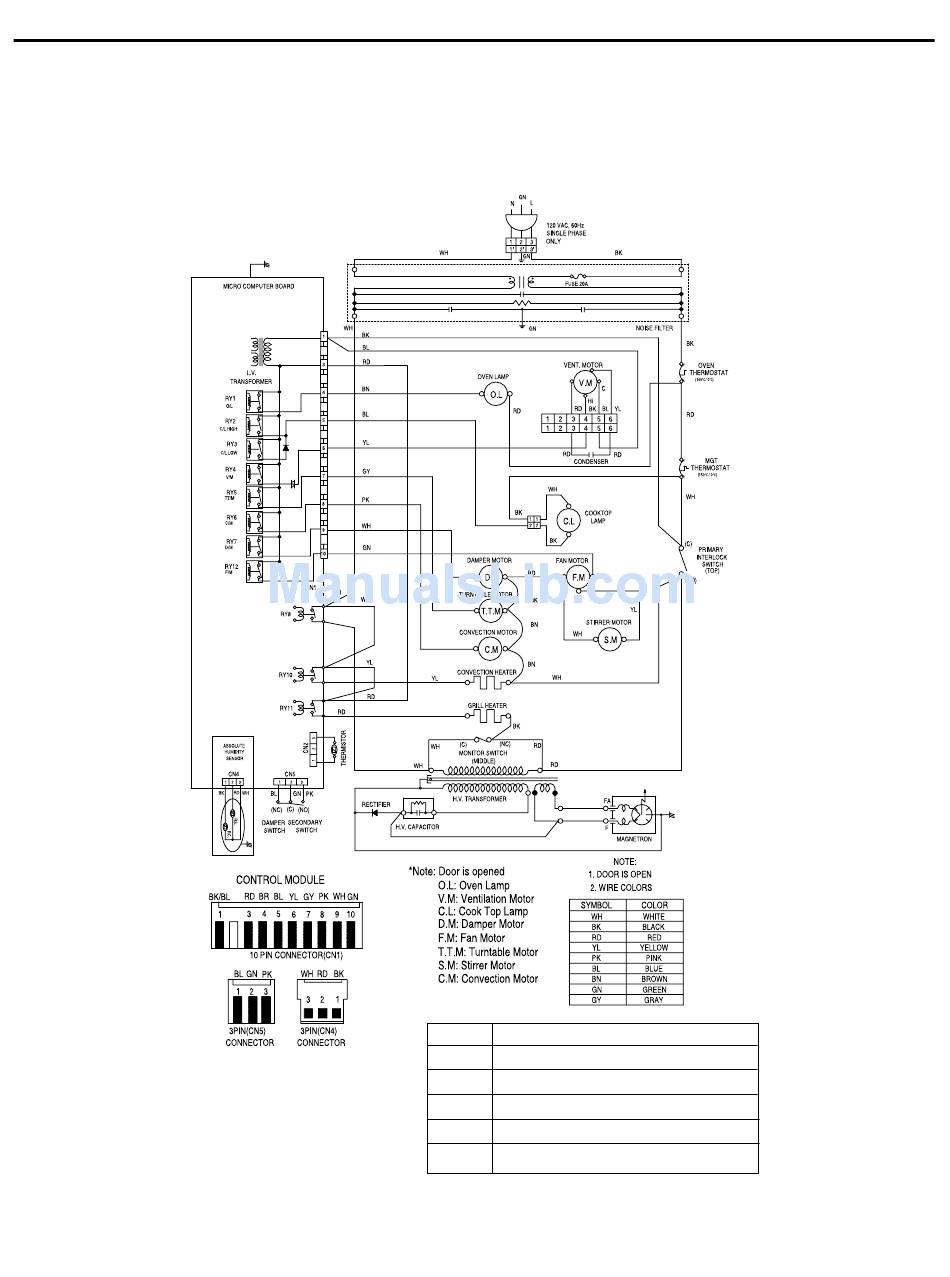

SCHEMATIC DIAGRAM (II)
For Model: MMV6178AAB
MMV6178AAQ
MMV6178AAS
MMV6178AAW
*Check the Model No. (ADD Noise filter)
DISPLAY ERROR MODE
F1
F2
F3
F4
F5
5-2
THERMISTOR OPEN
THERMISTOR SHORT FOR COOKING
THERMISTOR SHORT AFTER COOKING
SENSOR OPEN
DAMPER SWITCH SENSING ERROR
