INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
Series 700, 800, and 900
Turbine Sprayers
120 V AC 50/60 Hz: Series 700 and 900
120 VAC 60 Hz: Series 800
Maximum Working Pressure:
Series 700 and 800: 5 psi (0.34 bar)
Series 900: 6 psi (0.41 bar)

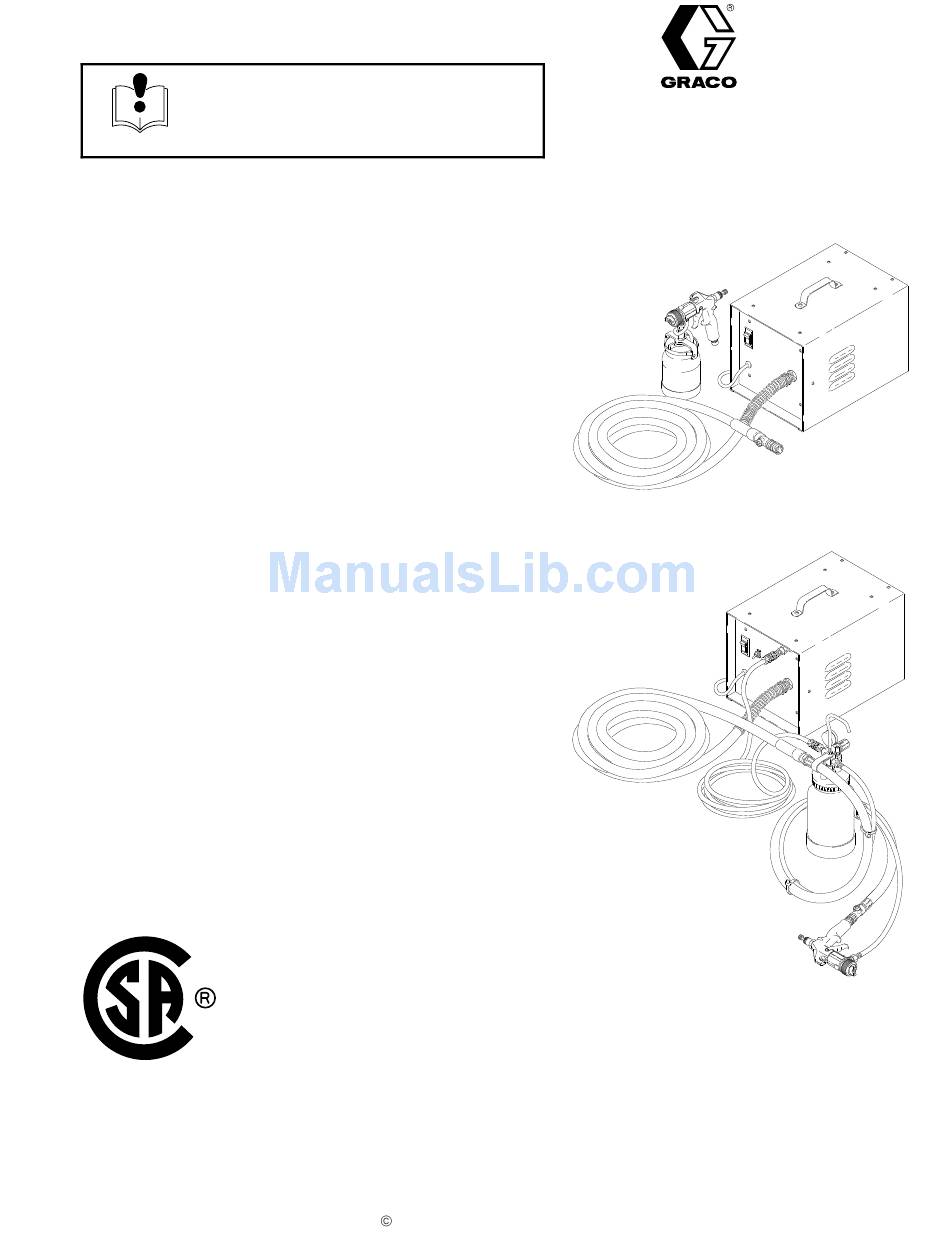

Model M73109, Series A
Complete Series 700 Turbine, with hose and turbine gun
Model M73111, Series A
Basic Series 700 Turbine, without hose or gun
Model M73154, Series A
Complete Series 800 Turbine,
with remote 2 qt cup, hose, and turbine gun
Model M73157, Series A
Basic Series 800 Turbine, without hose or gun
Model M73331, Series A
Complete Series 900 Turbine, with hose and turbine gun
Model M73333, Series A
Basic Series 900 Turbine, without hose or gun
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 1994, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308–422
Rev. B
Supersedes A
Series 700 and 900
03015
Series 800
03016A
