Worx WG780E Safety And Operating Manual

Worx WG780E Safety And Operating Manual

3 in 1 cordless lawn mower
Hide thumbs Also See for WG780E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

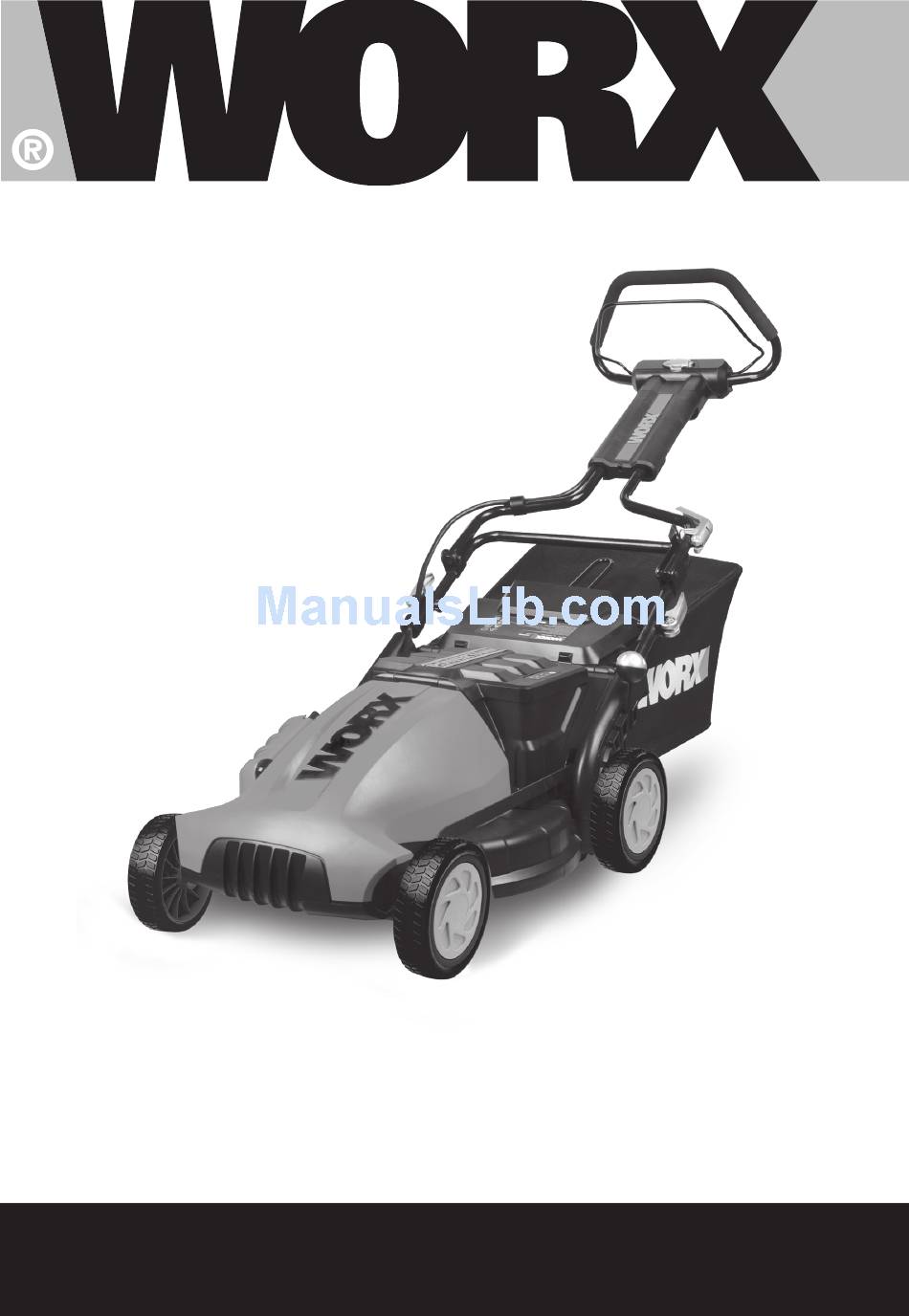

SAFETY AND OPERATING MANUAL
3 in 1 Cordless lawn mower
WG780E

Advertisement

Table of Contents
loading

Related Manuals for Worx WG780E

Summary of Contents for Worx WG780E

  • Page 1 SAFETY AND OPERATING MANUAL 3 in 1 Cordless lawn mower WG780E...

  • Page 2: General Power Tool Safety Warnings

    MAINTENANcE ANd STORAGE Replace worn or damaged blades and bolts a) Keep all nuts, bolts and screws tight to in sets to preserve balance; be sure the equipment is in safe working 3 in 1 Cordless lawn mower WG780E...

  • Page 3: Additional Safety Instructions For Your Battery Charger

    The battery charger is then to be connected to the supply mains. 5. After charging, disconnect the battery charger from the supply mains. Then remove the chassis connection and then the 3 in 1 Cordless lawn mower WG780E...
  • Page 4 Do not expose to rain or water Do not burn Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point. Contains Pb battery. Battery must be recycled or disposed of properly. C-Tick approval mark 3 in 1 Cordless lawn mower WG780E...
  • Page 5 3 in 1 Cordless lawn mower WG780E...
  • Page 6 12. Mulch INSERT (See k1) 13. SIdE-dISchARGE INSERT (See l1) 14. ScREW kNOB (See c) 15. BATTERy PAck *(See B) 16. chARGER *(See B) * Not all the accessories illustrated or described are included in standard delivery. 3 in 1 Cordless lawn mower WG780E...

  • Page 7: Technical Data

    Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. 3 in 1 Cordless lawn mower WG780E...

  • Page 8: Intended Use

    4. Do not operate a damaged charger. Replace damaged cords or charger immediately at an authorized WORX service depot. 5. Always charge the mower in a dry area protected from the weather. Do not expose the mower or charger to rain. Do not charge in wet locations. Do not charge mower when temperature is above 104°F...

  • Page 9: Battery Care

    (b), check that the grass bag is positioned to slip over the frame. 2) Slide the grass bag onto the frame. 3) Assemble the top clips to the frame, then assemble the two side clips and the bottom clip last. 3 in 1 Cordless lawn mower WG780E...
  • Page 10 Ensure the grass bag is installed securely. NOTE: Depress the grass bag slightly to ensure that it is completely installed. REMOvING/EMPTyING Lift the safety guard and hold it up. The grass bag will drop automatically. 3 in 1 Cordless lawn mower WG780E...

  • Page 11: Operation

    3) Press and hold the safety key, squeeze the switch lever bar towards the handle and the mower will start. 4) Release the safety key. STOPPING Release the switch lever bar. 3 in 1 Cordless lawn mower WG780E...
  • Page 12 4) Release safety guard and ensure it is properly closed. 5. SIdE-dISchARGE cOvER (See l1 & l2) Using the mulching insert and side-discharge insert, the grass can be discharged from the side- discharge of the 3 in 1 Cordless lawn mower WG780E...
  • Page 13 Please review the following recommendations for optimum mulching performance. 1) Avoid mowing when the grass is wet from rain or dew. Wet grass may form clumps which interfere with the mulching action and reduce runtime. 3 in 1 Cordless lawn mower WG780E...

  • Page 14: Maintenance

    If the mower should happen to fail despite regular maintenance, please call our customer helpline for advice. BlAdE ShARPENING KEEP BLADE SHARP FOR BEST MOWER PERFORMANCE. A DULL BLADE DOES NOT CUT GRASS CLEANLY OR MULCH PROPERLY. 3 in 1 Cordless lawn mower WG780E...
  • Page 15 Hold the blade (P-2) and unscrew the blade nut (P-5) counterclockwise using a spanner wrench. Remove blade nut (P-5), square washer (P-4), insulator washer (P-3), and blade (P-2). To re-assemble, first position the blade with the cutting 3 in 1 Cordless lawn mower WG780E...
  • Page 16 Store the machine in a dry place. Do not place other objects on top of the machine. To aid storage, press the handle height adjustment knob, and rotate or fold the upper handle. 3 in 1 Cordless lawn mower WG780E...
  • Page 20 Copyright © 2010, Positec. All Rights Reserved.
