Cleaning or Replacing the Chassis Air Filter

Position the metal braces on the back of the air filter to face toward the switch fabric and alarm card

Step 4

cage. Slide the new or cleaned air filter into the air filter door

(Figure

6).

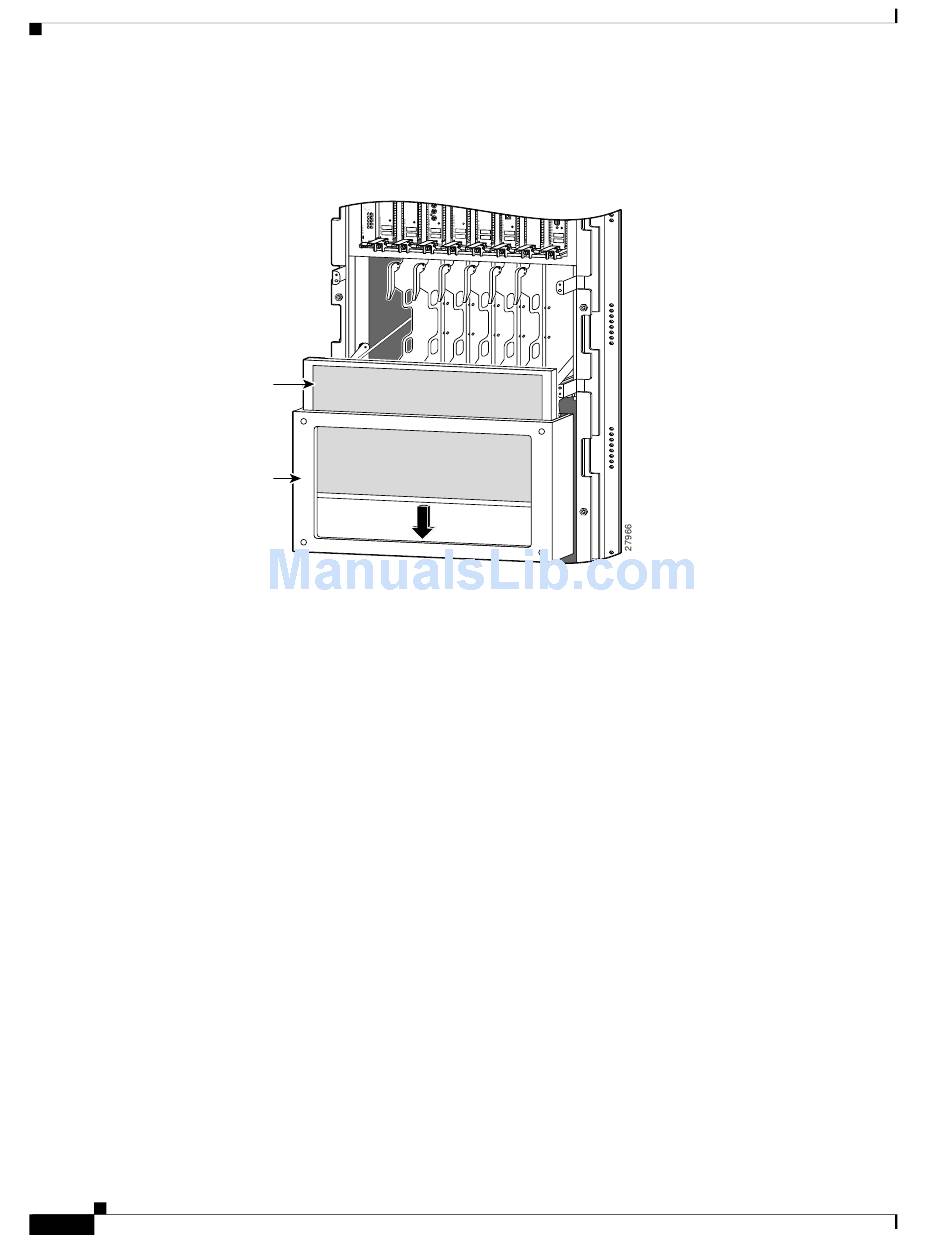

Figure 6

Installing the Chassis Air Filter

Air filter

Air filter door
