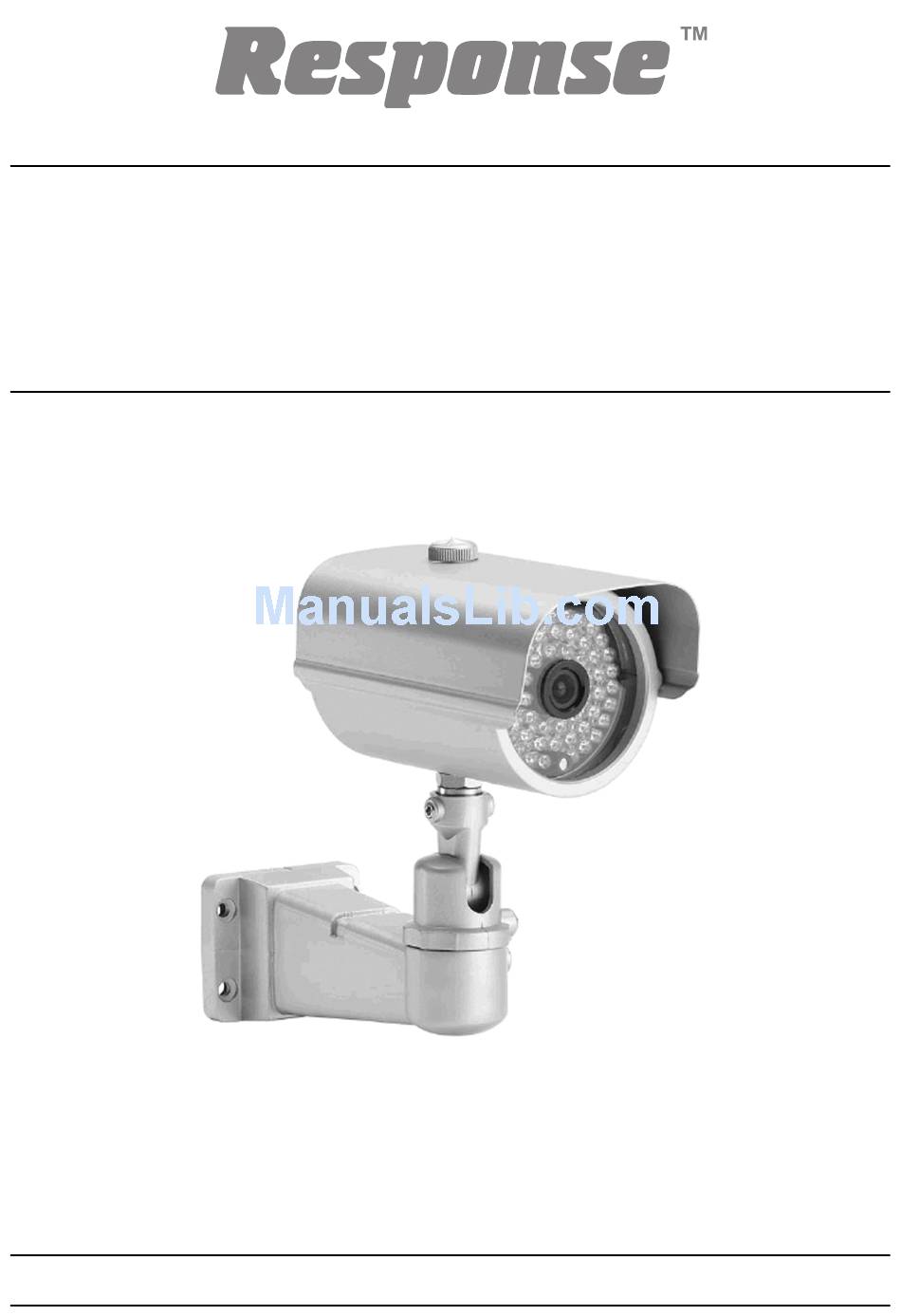

- Page 1 Heavy Duty Colour Camera CCTV Kit CA10 Installation and Operating Instructions These instructions should be retained in a safe place for future reference.
-
Page 2: Safety And Installation Tips
INTRODUCTION Section 1 The Response Wired Heavy Duty Camera is a colour, weatherproof day/night camera. The camera easily connects to your TV/VCR/DVR for the protection of your home or office, etc. The camera is easily mounted on the wall using the supplied mounting bracket. -
Page 3: Installation Section
KIT CONTENTS Section 2 1 x Wired Heavy Duty Colour Camera 1 x 10m BNC (male plug) to BNC (male plug) extension cable 1 x BNC (female) to RCA (male) adaptor 1 x 12VDC power supply adaptor 1 x Camera fixings kit - wall plugs and screws 4 x Ø... - Page 4 2. Screw the post bracket to the main housing and tighten the nut until secure (Fig. 2). Now pass the cameras video/power lead through the main bracket and then secure the lower part of the post on to the main bracket (Fig. 3). Feed the video/power leads through the hole in the wall, starting with the largest connector, and then mount the main bracket on to the wall using the fixing screws and wall plugs.
- Page 5 4. Connect the male end of the video BNC connector from the extension cable into the camera end. 5. Fit the BNC to RCA adaptor into the other end of the extension cable to allow you to plug directly into the video input of your TV/VCR. Note: If you are using this camera with a CCTV 4 channel DVR where the video input channels use BNC female connectors, then simply plug the other end of the extension cable in without using the supplied adaptor.
-
Page 6: Troubleshooting
TROUBLE SHOOTING Section 4 PROBLEM SOLUTION No picture can be viewed The power supply adaptor is not plugged in. The TV / VCR / DVR is not tuned to view the correct channel. Poor picture quality Clean the camera lens. Adjust the contrast/brightness on the TV. -
Page 7: Accessories In The Range
ACCESSORIES IN THE RANGE Section 6 There are a range of accessories available in the Response CCTV product range to expand your system: CWK1 Wired Colour Camera CCTV Kit Professional Heavy Duty Camera CCTV Kit Dummy Professional Heavy Duty Camera... -
Page 8: Customer Helpline
1. Proof of purchase. 2. A full description of the fault. 3. All relevant batteries (disconnected). Response is a trademark of Novar ED&S. CUSTOMER HELPLINE Most issues can be solved over the phone in a few minutes. Please contact our Helpline Team on the number below for any...
