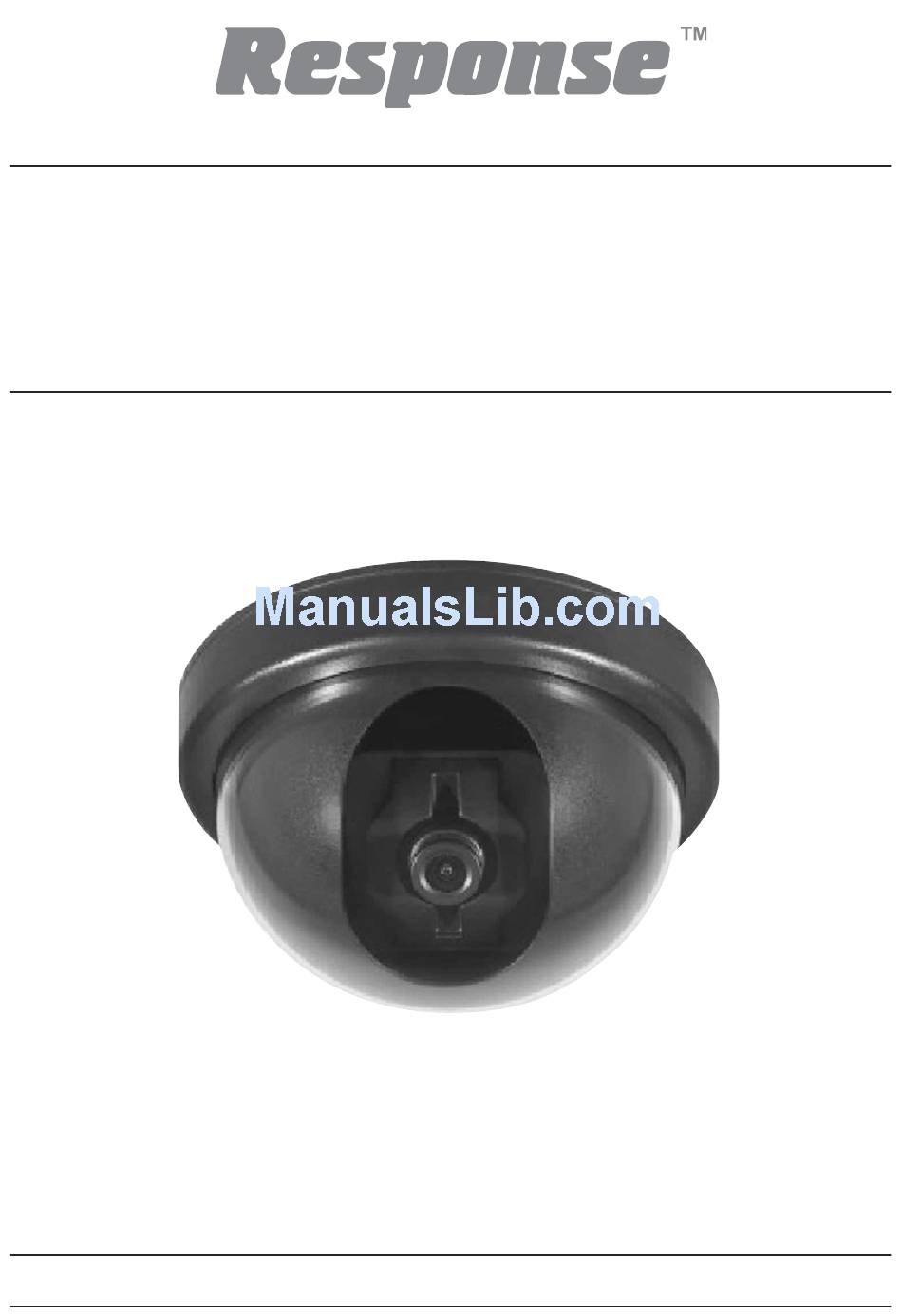

- Page 1 Wired Internal Colour Dome Camera CCTV Kit Installation and Operating Instructions These instructions should be retained in a safe place for future reference.
-
Page 2: Please Read Before You Start
INTRODUCTION Section 1 The Response Wired Internal Dome Camera is a colour, day camera. The camera easily connects to your TV / VCR / DVR for the protection of your home, office, etc. Please read before you start: Always use discretion when installing CCTV surveillance equipment especially when there is perceived policy. -
Page 3: Tools Required
KIT CONTENTS Section 2 1 x Wired Internal Dome Colour Camera 1 x 10m BNC (male plug ) to BNC (male plug) extension cable 1 x BNC (female) to RCA (male) adaptor 1 x 12V DC power supply adaptor 1 x Camera fixings kit - ceiling plugs and screws For the dome cameras mounting base - 4 x Ø... -
Page 4: Installation
INSTALLATION Section 3 Note: The Response Dome Camera is only suitable for internal use and should not be installed outside. It is also recommended to install the extension cables for the dome camera in the ceiling and passed down the wall through a cable conduit. - Page 5 5. Mount the base to the ceiling using the supplied fixing screws and plugs. Adjust the tilt and panning positions of the camera lens as shown (Fig. 3). Loosen screw to adjust panning position Fig. 3. 6. Refit the cover of the camera on to its base. 7.
-
Page 6: Connection Summary
Connection Summary Extension Cable Ceiling TV / MONITOR DOME CAMERA Wall VCR / DVR Video Signal to Input 12VDC Power Supply Adaptor Note: If the supplied extension cable is not long enough, the extension cable for this camera can only be extended up to 30m in total length due to power loss. -
Page 7: Troubleshooting
TROUBLE SHOOTING Section 4 PROBLEM SOLUTION No picture can be viewed The power supply adaptor is not plugged in. The TV / VCR / DVR is not tuned to view the correct channel. Poor picture quality Clean the camera lens. Adjust the contrast/brightness on the TV. -
Page 8: Technical Specification
TECHNICAL SPECIFICATION Section 5 ITEM DOME CAMERA Image sensor 1/4” Sharp CCD Video format PAL / NTSC Pixel resolution PAL: 512 (H) x 582 (V) NTSC: 510 (H) x 492 (V) Horizontal resolution 420 TV lines Viewing angle 72° Lens size 3.6mm Night vision range IP rating... - Page 9 ACCESSORIES IN THE RANGE Section 6 There are a range of accessories available in the Response CCTV product range to expand your system: CWK1 Wired Colour Camera CCTV Kit 2 Channel Digital Video Image Recorder LCD Screen for Wireless / Wired CCTV Kits...
-
Page 10: Disposal - Recycling Instructions
DISPOSAL – RECYCLING INSTRUCTIONS Section 7 Directive (2002/96/EC) This product is classified by the Waste Electrical or Electronic Equipment (WEEE) Directive. It should not be disposed of with other household or commercial waste. At the end of its useful life the packaging and product should be disposed of via a suitable recycling centre. -
Page 11: Customer Helpline
1. Proof of purchase. 2. A full description of the fault. 3. All relevant batteries (disconnected). Response is a trademark of Novar ED&S. CUSTOMER HELPLINE Most issues can be solved over the phone in a few minutes. Please contact our Helpline Team on the number below for any... - Page 12 Novar Electrical Devices and Systems Limited. (A Honeywell Company) The Arnold Centre, Paycocke Road, Basildon, Essex SS14 3EA. UK www.friedland.co.uk © Novar Electrical Devices and Systems Limited. 2009 50043913 Rev.A...
