Wired Colour Camera
CCTV Kit
CWK1
Installation and Operating Instructions
These instructions should be retained in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CWK1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Response CWK1

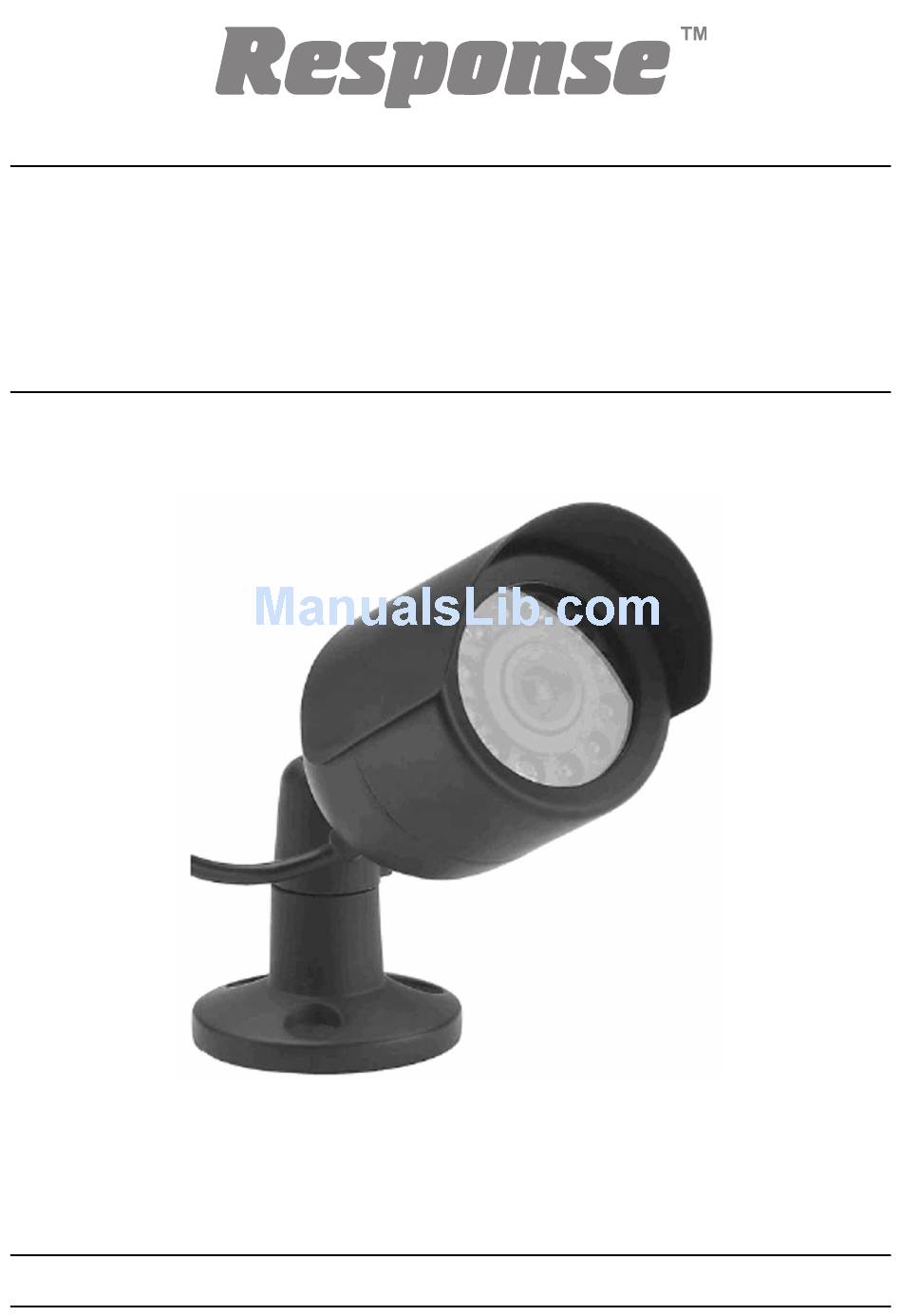

  • Page 1 Wired Colour Camera CCTV Kit CWK1 Installation and Operating Instructions These instructions should be retained in a safe place for future reference.
  • Page 2: Introduction Section

    INTRODUCTION Section 1 The Response Wired Colour Camera is a colour, weatherproof day/night camera. The camera easily connects to your TV/VCR/DVR for the protection of your home or office, etc. The camera is easily mounted on the wall or ceiling using the supplied mounting bracket.
  • Page 3: Installation Section

    CONTENTS Section 2 x Wired Colour Camera 1 x 10m RCA (male plug ) to RCA (male plug) extension cable 1 x 12VDC power supply adaptor 1 x Camera fixings kit - wall plugs and screws 1 x Installation and operating manual 1 x Window sticker Tools Required: Electric drill...
  • Page 4 choose to run the cable along the wall outside the property, it is recommended to use cable conduit to hide the cable and reduce the chances of it being tampered with. 3. Drill 3 x 5mm mounting holes for the bracket’s wall plugs and 1 x 20mm hole for the camera’s power and video connectors to pass through the wall or ceiling.
  • Page 5: Troubleshooting

    TROUBLE SHOOTING Section 4 PROBLEM SOLUTION picture can be viewed The power supply adaptor is not plugged in. The TV / VCR / DVR is not tuned to view the correct channel. Poor picture quality Clean the camera lens. Adjust the contrast/brightness on the TV. Some colours viewed by The camera’s lens is a CMOS type sensor.
  • Page 6: Technical Specification

    TECHNICAL SPECIFICATION Section 5 ITEM WIRED COLOUR CAMERA Image sensor 1/4” colour CMOS Video format PAL / NTSC Pixel resolution PAL: 628 (H) x 582 (V) NTSC: 510 (H) x 492 (V) Horizontal resolution 380 TV lines Minimum illumination 0 Lux when the IR lamps are turned on Viewing angle 50°...
  • Page 7: Accessories In The Range

    ACCESSORIES IN THE RANGE Section 6 There are a range of accessories available in the Response CCTV product range to expand your system: 2 Channel Digital Video Image Recorder LCD Screen for Wireless / Wired CCTV Kits CWFK1 Wireless Colour Camera CCTV Kit...
  • Page 8: Customer Helpline

    1. Proof of purchase. 2. A full description of the fault. 3. All relevant batteries (disconnected). Response is a trademark of Novar ED&S. CUSTOMER HELPLINE Most issues can be solved over the phone in a few minutes. Please contact our Helpline Team on the number below for any...
