- Page 1 Wireless Colour Camera Recordable CCTV Kit CWFK2 Installation and Operating Instructions These instructions should be retained in a safe place for future reference.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION SYSTEM CONFIGURATION 2 KIT CONTENTS 8 TROUBLE SHOOTING 3 DVR FEATURES 9 TECHNICAL SPECIFICATION 4 INSTALLATION 10 ACCESSORIES IN THE RANGE System Connection Camera Installation 11 DISPOSAL – RECYCLING INSTRUCTIONS Powering Up the System Setting the Camera Channel 12 GUARANTEE AND (Optional) CUSTOMER HELPLINE... -
Page 3: Introduction

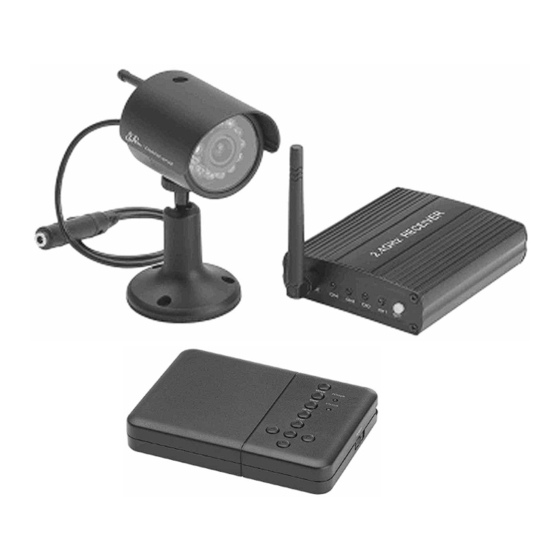

INTRODUCTION Section 1 The Response Wireless Colour Camera Recordable CCTV Kit is a wireless monitoring system designed to capture photos or 10 second video clips of any motion viewed by the wireless camera and store them in memory on the 2 channel DVR. There is also an additional video input available on the DVR to allow you to expand the system using a range of CCTV accessories. -
Page 4: Night Vision
SAFETY AND INSTALLATION TIPS: Keep away from heat sources and high temperature places Avoid direct sunlight Avoid humid places Avoid vibration Install in a ventilated environment Camera(s) and DVR Do not attempt to open the units with the power adaptor plug connected to avoid any risk of personal injury. -
Page 5: Kit Contents
CONTENTS Section 2 x Wireless Colour Camera 1 x Wireless Receiver unit 1 x 2 Channel DVR unit 1 x DIN to RCA adaptor lead assembly 1 x Video output cable for Wireless Receiver unit to 2 Channel DVR (1m RCA to RCA cable) 1 x Video output cable for 2 Channel DVR to TV (1m RCA to RCA cable) 1 x Wireless Camera power supply adaptor (12VDC/300mA) 1 x Wireless Receiver power supply adaptor (12VDC/300mA) -
Page 6: Dvr Features
IMAGE RECORDER (DVR) FEATURES Section 3 channel video input/ 1 channel video output card technology Photos recorded in JPG format / video recorded in AVI format Motion detection Preset NTSC / PAL system input Time and date stamp Picture in picture display (view one camera channel in another camera channel) -
Page 7: Installation
INSTALLATION Section 4 4.1 System Connection TV / MONITOR WIRELESS CAMERA Camera Power Supply Adaptor Video Signal to Input WIRELESS RECEIVER DC12V POWER VIDEO Receiver Power Supply Adaptor Not used In this model DVR Power DIN IN Supply Adaptor VIDEO IN 2 VIDEO IN 2 POWER IN VIDEO OUT... -
Page 8: Camera Installation
Camera Installation Mount the camera in a selected location using the fixing screws and plugs supplied. If the camera is installed outdoors on an external wall you will need to drill a cable entry hole of around 15mm for the cable to pass through the wall. Feed the camera’s cable through the cable entry hole into the property, so that all connections are made inside. -
Page 9: Powering Up The System
The sun shade hood can be removed from the camera body and re-attached for installation flexibility. This is done by sliding along the body of the camera as shown. Weather-proof Powering up the system Insert the SD card into the DVR if not already fitted 2. -
Page 10: Setting The Camera Channel (Optional)
4.4 Setting the Camera Channel (Optional) The wireless camera has 4 selectable channels to avoid any interference from any other wireless devices. Follow the steps below to set or change the frequency channel of the camera. If you are adding another camera to link with the supplied receiver in this kit, then ensure its channel is set to a different channel to the existing camera(s). -
Page 11: Camera And Interference
Camera and Interference The wireless camera operates on the 2.4GHz frequency. Some devices such as wireless broadband routers, microwaves, cordless phones can cause interference and affect picture quality as they use the same frequency. If you are experiencing interference or poor image quality try the following steps: - move or orient the camera in a different location. -
Page 12: Dvr Panel Introduction
DVR PANEL INTRODUCTION Section 5 MODE POWER SNAP STATUS MENU DISP Key to controls: DIN IN DISP (Display) Key (2 channel video input; 2 channel output; 12VDC/1.2A Power IN) Right 2. MODE Key Enter 3. SNAP Key Down Key (Take Photo or Record) Left 4. -
Page 13: Dvr Operation
DVR OPERATION Section 6 6.1 Keys - Functions Reference Real time mode Play back mode Setup menu to diagram (Live viewing) Mode Switch to play Switch to real back mode time mode Menu Setup menu Delete files menu Exit setup menu appears (for video clips, the Menu key only functions at the... -
Page 14: Changing Between Real Time Viewing And Playback Mode
Motion detect Move up to a photo / Move the motion ON/OFF (Indicated video clip. Before detect area / on the top left of playing back a file, sensitivity up the TV/monitor by the on screen display when adjusting an ‘eye’ sign) details can be removed or restored Down... -
Page 15: Menu Icons Definition
Menu Icons Definition: Setup Screen Date Time Setup Advance Setup Motion Detect On or Off Quit Menu Select Photo or Video Advance Setup Select TV System, Select Image Quality NTSC or PAL High or Low Motion Detect Motion Detect Count Area Setting Motion Detect Motion Detect... -
Page 16: Date/Time Setup
6.6.1 Date/Time Setup Use the left / right key to select the ‘Time Setup’ icon and press enter. Use the left / right key to select the date or time. Use the up / down key to set the correct digit. Press enter to confirm settings. -
Page 17: Playing Back Recorded Photos / Video Clips
1.12 Use the left / right key to move to the ‘Motion Detect Interval’ icon. For photo capture format mode only, this is used to set the interval break in seconds between each capture (for example, if set to 5, then after the first trigger, it would take 5 seconds for the DVR to trigger again). -
Page 18: Memory Overwrite Indication
3. Use the left / right key to move back or forward to an image or video clip. 4. To play back a video, press the Down key in full screen mode to play the video file 5. In full screen view, press the Up key to turn ON / OFF the on screen display information (date, time, capture number, etc). -
Page 19: System Configuration
SYSTEM CONFIGURATION Section 7 Preview Mode Camera 1 Camera 2 Camera 1 (Camera 2) Camera 2 (Camera 2) MENU Date Time Set up Motion Detect On or Off Select Photo or Video Motion Detecting Motion Detect Advance Set up Area Setting Settings Quit Menu Motion Detecting... -
Page 20: Trouble Shooting
TROUBLE SHOOTING Section 8 PROBLEM SOLUTION camera picture The power supply adaptor for the DVR or camera(s) is not plugged in. Check all video cable connections between the camera(s) and DVR. The TV is not tuned to view the correct channel. Poor picture quality Clean the camera lens. - Page 21 When set to motion record, Ensure that no interference is seen on the picture DVR seems to start as this can cause the DVR to record unnecessarily. recording without seeing required adjust the orientation of the antenna on any significant movement receiver or move the camera closer to the receiver to try to improve the reception.
-
Page 22: Technical Specification
TECHNICAL SPECIFICATION Section 9 ITEM 2 CHANNEL DVR Video format PAL / NTSC Video input 2 channel (NTSC / PAL) (RCA) Video output 1 channel (NTSC / PAL) Composite video output Video display Single picture or picture in picture display Display resolution JPEG VGA: 640 x 480 AVI QVGA:... - Page 23 ITEM WIRELESS CAMERA Image sensor 1/3” CMOS Pixel resolution PAL: 628 x 582 NTSC: 510 x 492 380 TV lines Lens size Viewing angle 60° Night vision range Up to 7m Number of infra-red LEDs Day / night mode Colour during the day / switches to B&W at night Minimum illumination 5 Lux when the IR lamps are turned on Signal...
- Page 24 ITEM WIRELESS RECEIVER Operating frequency 2.4000 GHz – 2.4835 GHz Channels Signal Analogue IP rating IP40 - Internal use only Video NTSC / PAL Power supply 12V DC/1.2A output power supply adaptor Video output interface RCA sockets...
-
Page 25: System Connection 6 The Range
ACCESSORIES IN THE RANGE Section 10 There are a range of accessories available in the Response CCTV product range to expand your system: CWK1 Wired Colour Camera CCTV Kit LCD Screen for Wireless / Wired CCTV Kits CWFK1 Wireless Colour Camera CCTV Kit... -
Page 26: Powering Up The System 8 Instructions
DISPOSAL – RECYCLING INSTRUCTIONS Section 11 Directive (2002/96/EC) This product is classified by the Waste Electrical or Electronic Equipment (WEEE) Directive. It should not be disposed of with other household or commercial waste. At the end of its useful life the packaging and product should be disposed of via a suitable recycling centre. -
Page 27: Setting The Receiver Channel 9 Customer Helpline
1. Proof of purchase. 2. A full description of the fault. 3. All relevant batteries (disconnected). Response is a trademark of Novar ED&S. CUSTOMER HELPLINE Most issues can be solved over the phone in a few minutes. Please contact our Helpline Team on the number below for any... - Page 28 Novar Electrical Devices and Systems Limited. (A Honeywell Company) The Arnold Centre, Paycocke Road, Basildon, Essex SS14 3EA. UK www.friedland.co.uk © Novar Electrical Devices and Systems Limited. 2009 50043920 Rev.A...
