Summary of Contents for EAW VR61

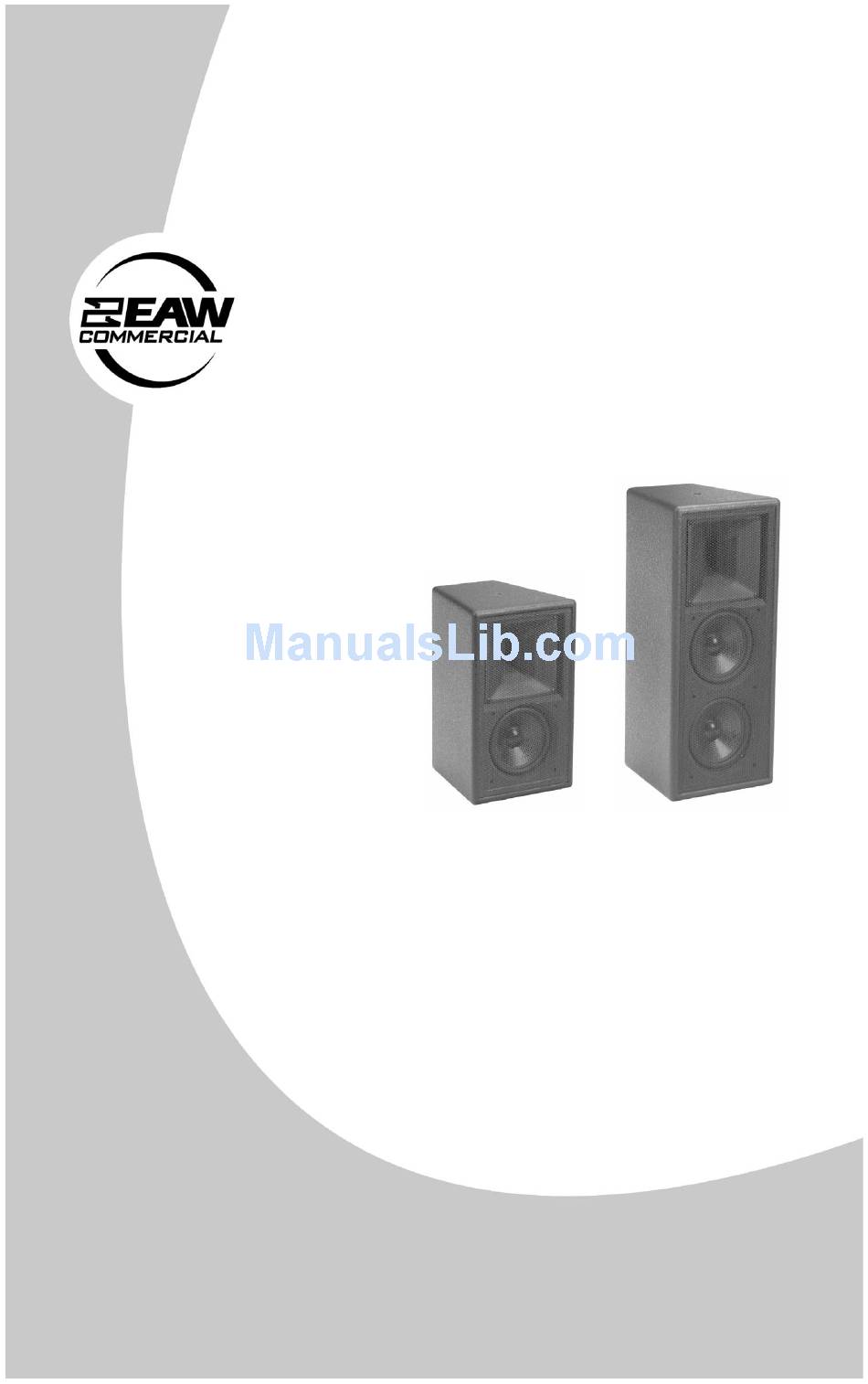

- Page 1 Passive Full-Range Loudspeakers INSTRUCTION MANUAL...
-
Page 2: Safety Instructions
EAW Commercial strongly recommends that this equipment be installed only by a professional sound installer or contractor. – VR61 and VR62 important operating and maintenance (servicing) instructions in the literature accompanying the apparatus. Part No. 0012103 Rev.A 09/2004 © 2004 LOUD Technologies Inc. All Rights Reserved. -
Page 3: Table Of Contents
1. SAFETY INSTRUCTIONS... 2 2. INTRODUCTION... 4 3. INSTALLATION ... 5 4. CONNECTIONS... 8 5. OPERATION... 10 6. SPECIFICATIONS... 11 Dimensions... 11 Performance Graphs ... 12 7. TROUBLESHOOTING ... 13 8. SERVICE and MAINTENANCE... 14 9. WARRANTY ... 15 VR61 and VR62 –... -
Page 4: Introduction
Please ensure that you fully understand its proper installation and operation before use. This manual describes the VR61 and VR62 full-range loudspeakers. These offer an attractive design and good acoustic features for quality speech and music reproduction. The extended-range drivers guarantee high efficiency, and a wide angle of coverage over the entire range reproduced. -
Page 5: Installation
Always make sure that the rigging hardware minimum rating is at least five times the actual load. • Avoid installing the loudspeaker in places exposed to harsh weather conditions. 1/4 INCH LOCK WASHER 2 PLACES REMOVE SCREWS FROM BOTH SIDES VR61 and VR62 –... -
Page 6: Mounting Instructions
1/4 INCH FLAT WASHER 2 PLACES 1/4 INCH LOCK WASHER 2 PLACES VR62 – VR61 and VR62 BRACKET/WALLMOUNT REMOVE SCREWS FROM BOTH SIDES MOUNTING POINT 1/4-20 THREADED HOLE VR61 SCREW 1/4 INCH-20 X 1.25 INCH LONG... -
Page 7: Bracket Dimensions
6. Replace the grille and secure the screws holding it to the enclosure. 0.40" x 2.25" Full radius (10.16 x 57.15) 11.50" (292.1) 3.00"(76.2) 8.00"(203.2) (151.7) 62.2 2.00"(50.8) 0.31" x 1.38" Full radius (7.87 x 35.05) 270.4 115.8 20˚ DIMENSIONS APPLY TO TOP AND BOTTOM 241.3 FRONT VR61 and VR62 – 16.4... -
Page 8: Connections
0.5 dB power losses are rarely practical for physical and cost reasons. As a practical compromise for these situations the recommended conductor gauge is 10 AWG or 25 metric. – VR61 and VR62 -- + IN PUT... - Page 9 +/- connection polarity is reversed with respect to the others, incorrect reproduction will result. Most notably, the bass response will suffer. This is especially true when loudspeakers are situated in adjacent positions where the sound waves readily interact with each other. VR61 and VR62 –...
-
Page 10: Operation
If you must expose yourself to these kinds of volume levels, wear adequate hearing protection. • Take care when moving or lifting the loudspeaker. Injury to you or damage to the loudspeaker can result from careless handling. – VR61 and VR62... -
Page 11: Specifications
45 V @ 8 ohms 116 dB 122 dB FRONT Bracket 22.25 in/565.1 mm 9.50 in/241.3 mm 10.65 in/270.4 mm ± 0.1 in/2.5 mm 25 lb/11.3 kg DIMENSIONS APPLY TO TOP AND BOTTOM 4.56 in 115.8 mm VR62 VR61 REAR VR61 and VR62 –... -
Page 12: Performance Graphs
PERFORMANCE GRAPHS VR61 Impedance vs Frequency Fre q uenc y ( Hz ) VR61 Axial Response vs Frequency Fre q uenc y ( Hz ) VR61 Beamwidth vs Frequency Horizontal Vertical 1000 Frequency (Hz) – VR61 and VR62 VR62 Impedance vs Frequency... -
Page 13: Troubleshooting
• Driver not working properly. Contact EAW Commercial Technical Support for appropriate troubleshooting. • The crossover network inside the loudspeaker is not working properly. Contact EAW Commercial Technical Support for appropriate troubleshooting. VR61 and VR62 –... -
Page 14: Service And Maintenance
3. Include a legible note stating your name, (no P.O. boxes), daytime phone number, Service Request Number, and a detailed description of the problem, including how we can duplicate it. 4. Write the Service Request Number in BIG BOLD PRINT on top of the box. – VR61 and VR62... -
Page 15: Warranty
EAW Commercial products. Repairs and/or modifications by other than an Authorized EAW Commercial Distributor automatically voids this warranty. 888-337-7404 425-892-6503 425-485-1152 One Main Street Whitinsville, MA 01588 www.eawcommercial.com support@eawcommercial.com VR61 and VR62 –... - Page 16 EAW Commercial | One Main Street | Whitinsville, MA 01588 USA TEL toll free within US/Canada 888.337.7404 | TEL outside US 425.892.6503 | FAX 425.485.1152 www.eawcommercial.com © 2004 LOUD Technologies Inc. All Rights Reserved. EAW Commercial is a registered trademark of LOUD Technologies Inc.
