Summary of Contents for EAW VRM12

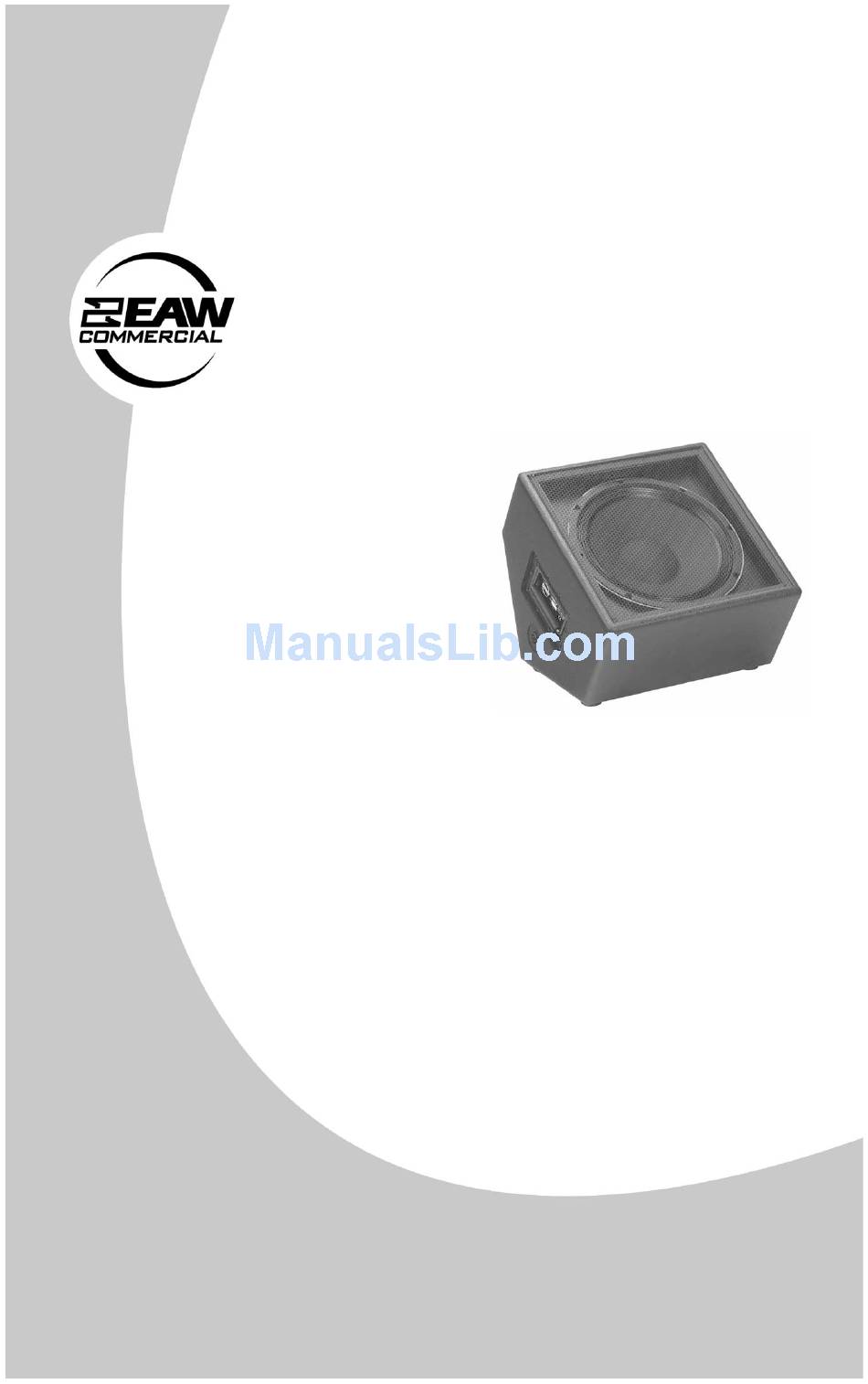

- Page 1 Two-Way, Full-Range Stage Monitor/PA INSTRUCTION MANUAL...
-
Page 2: Safety Instructions
When a EAW Commercial product capable of producing high sound levels is being used, it is therefore necessary to wear ear plugs or protective earphones when the limits shown in the table are exceeded. -
Page 3: Table Of Contents
14. Rigging Precautions: When mounting or suspending EAW Commercial loudspeaker enclosures, it is essential that load ratings, rigging techniques, and special safety considerations be appropriate for the installation. Use only the mounting/rigging points on the loudspeaker enclosure intended for this purpose. The user must determine the load requirements, dynamic loading, and any other contributing factors affecting the loudspeaker installation. -
Page 4: Introduction
Rubber feet stabilize the enclosure on the floor. A pole-mount cup and integral handle are included for stand-mounting and transport. The VRM12 is available in either black or white finish. A foam-backed powder-coated steel grill protects the driver. Features: Applications include: •... -
Page 5: Installation
Although EAW Commercial will help in any way possible, it is always the responsibility of the receiving party to file any shipping damage claim. The carrier will help prepare and file this claim. -
Page 6: Connections
• Pin 2+ is the positive (+) through output. • Pin 2– is the negative (–) through output. • Pin 2+ and 2– are not connected internally to the VRM12 crossover’s input. They are only connected internally to Pin 2+ and 2– of the other Speakon. -
Page 7: Loudspeaker Cables
Speakon • Using the Pin 2+,2- Speakon connections to connect the second power amplifier channel to a second VRM12. You will need a cross-wired cable which has Pins 2 at one end connected to Pins 1 at the other. VRM12 enclosure... - Page 8 +/- connection polarity is reversed with respect to the others, incorrect reproduction will result. Most notably, the bass response will suffer. This is especially true when loudspeakers are situated in adjacent positions where the sound waves readily interact with each other. – VRM12...
-
Page 9: Operation
• Most EAW Commercial loudspeakers are capable of sound levels that can be damaging to human hearing. Take precautions so that audiences are not exposed to such levels. -
Page 10: Specifications
Height (front face) 15.00”/381 mm Width (front face) Depth (from face, backwards) 12.50”/317.5 mm Dimension Tolerance ± 0.1”/2.5 mm Weight 36 lb/16.3 kg 1.5”/38.1 mm Pole Mount Diameter VRM12 Dimensions 12.50" (317.5) 5.94" 15.00" (150.9) (381.0) 3.94" (100.1) 15.00" (381.0) 7.50"... -
Page 11: Performance Graphs
EAW Commercial continually engages in research related to product improvement, new materials, and production methods. Design refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current EAW 1000 Frequency (Hz) Commercial product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated. -
Page 12: Troubleshooting
• Driver not working properly. Contact EAW Commercial Technical Support for appropriate troubleshooting. • The crossover network inside the loudspeaker is not working properly. Contact EAW Commercial Technical Support for appropriate troubleshooting. – VRM12... -
Page 13: Service And Maintenance
8. SERVICE and MAINTENANCE Maintenance Usually, your EAW Commercial loudspeaker will not require regular maintenance for normal use. However, you can do several things to keep your loudspeaker in good operating and cosmetic condition. • Testing: Periodically test your loudspeaker for proper performance. A simple test is to play a CD through it using well-defined, articulate, wide-range program material. - Page 14 Service If your loudspeaker should require servicing, please follow these instructions: 1. Call EAW Commercial Tech Support at 1-888-337-7404, 7 am to 5 pm PST (Monday-Friday), to verify the problem and obtain a Service Request Number. Be sure to have the serial number of the unit when you call. You must have a Service Request Number in order to obtain warranty service at the factory or at an authorized service center.
-
Page 15: Warranty
Warranty: LOUD Technologies Inc. requires its authorized EAW Commercial distributors abide by the following warranty terms for all EAW Commercial brand products (all dates are from the date of delivery from an Authorized EAW Commercial Distributor to the end user/installation site): Loudspeakers –... - Page 16 EAW Commercial | One Main Street | Whitinsville, MA 01588 USA TEL toll free within US/Canada 888.337.7404 | TEL outside US 425.892.6503 | FAX 425.485.1152 www.eawcommercial.com © 2004 LOUD Technologies Inc. All Rights Reserved. EAW Commercial is a registered trademark of LOUD Technologies Inc.
