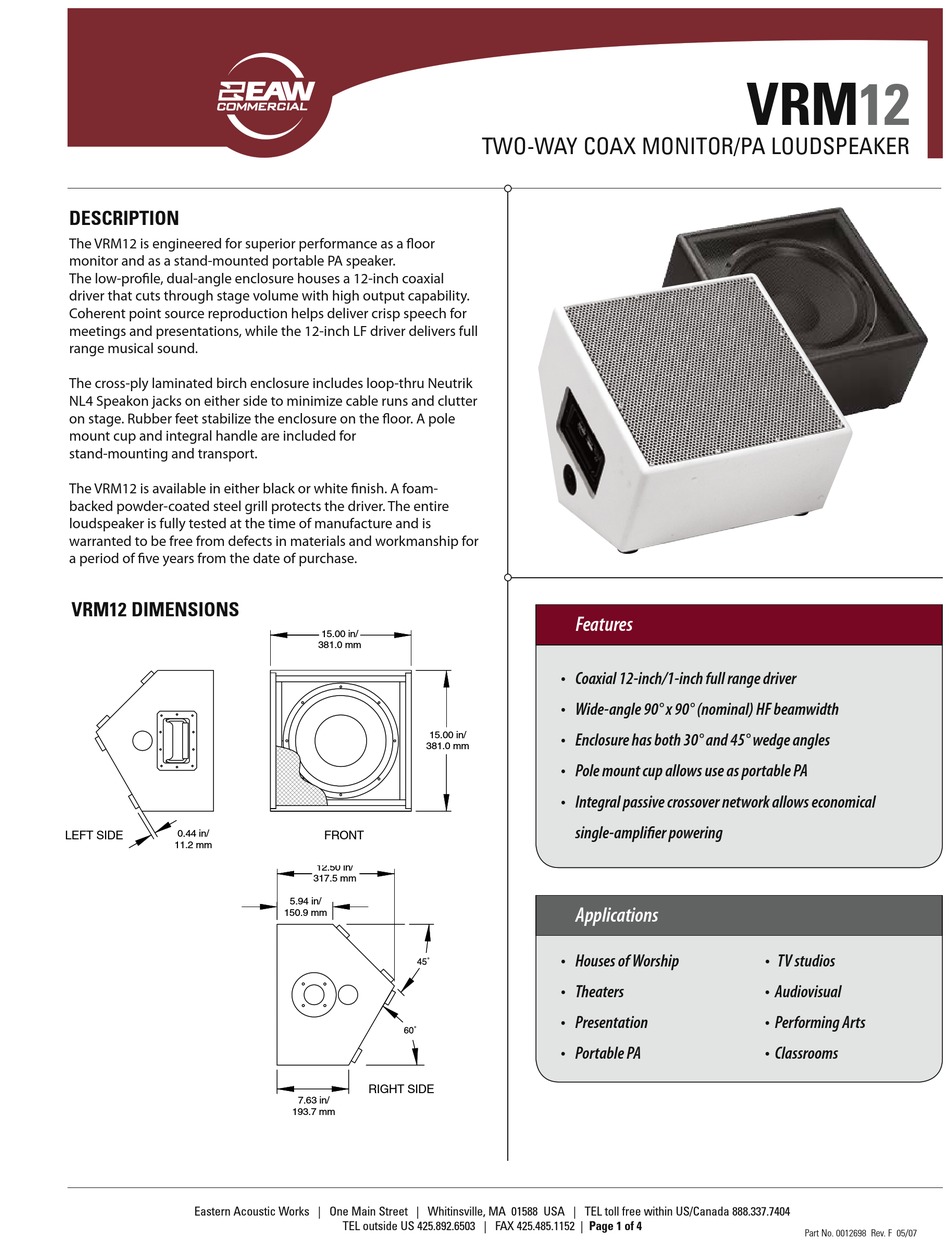

EAW VRM12 Specifications

DESCRIPTION

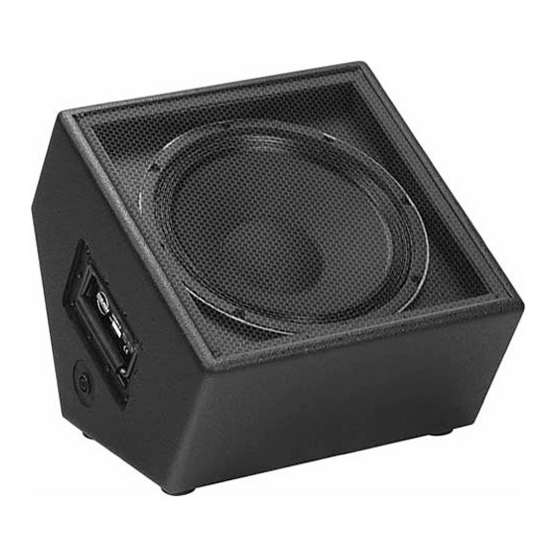

The VRM12 is engineered for superior performance as a floor
monitor and as a stand-mounted portable PA speaker.
The low-profile, dual-angle enclosure houses a 12-inch coaxial
driver that cuts through stage volume with high output capability.
Coherent point source reproduction helps deliver crisp speech for
meetings and presentations, while the 12-inch LF driver delivers full
range musical sound.
The cross-ply laminated birch enclosure includes loop-thru Neutrik
NL4 Speakon jacks on either side to minimize cable runs and clutter
on stage. Rubber feet stabilize the enclosure on the floor. A pole
mount cup and integral handle are included for
stand-mounting and transport.
The VRM12 is available in either black or white finish. A foam-
backed powder-coated steel grill protects the driver. The entire
loudspeaker is fully tested at the time of manufacture and is
warranted to be free from defects in materials and workmanship for
a period of five years from the date of purchase.
VRM12 DIMENSIONS
0.44 in/
LEFT SIDE
11.2 mm
15.00 in/
381.0 mm
15.00 in/
381.0 mm
FRONT
Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
15.00 in/
381.0 mm
15.00 in/
381.0 mm
FRONT
12.50 in/
317.5 mm
5.94 in/
150.9 mm
RIGHT SIDE
7.63 in/
193.7 mm
TEL outside US 425.892.6503 | FAX 425.485.1152 | Page 1 of 4
TWO-WAY COAX MONITOR/PA LOUDSPEAKER
12.50 in/
Features
317.5 mm
5.94 in/
150.9 mm
• Coaxial 12-inch/1-inch full range driver
• Wide-angle 90° x 90° (nominal) HF beamwidth
• Enclosure has both 30° and 45° wedge angles
• Pole mount cup allows use as portable PA
• Integral passive crossover network allows economical
single-amplifier powering
RIGHT SIDE
7.63 in/
193.7 mm
Applications
• Houses of Worship
• Theaters
• Presentation
• Portable PA
VRM12
• TV studios
• Audiovisual
• Performing Arts
• Classrooms
Part No. 0012698 Rev. F 05/07
