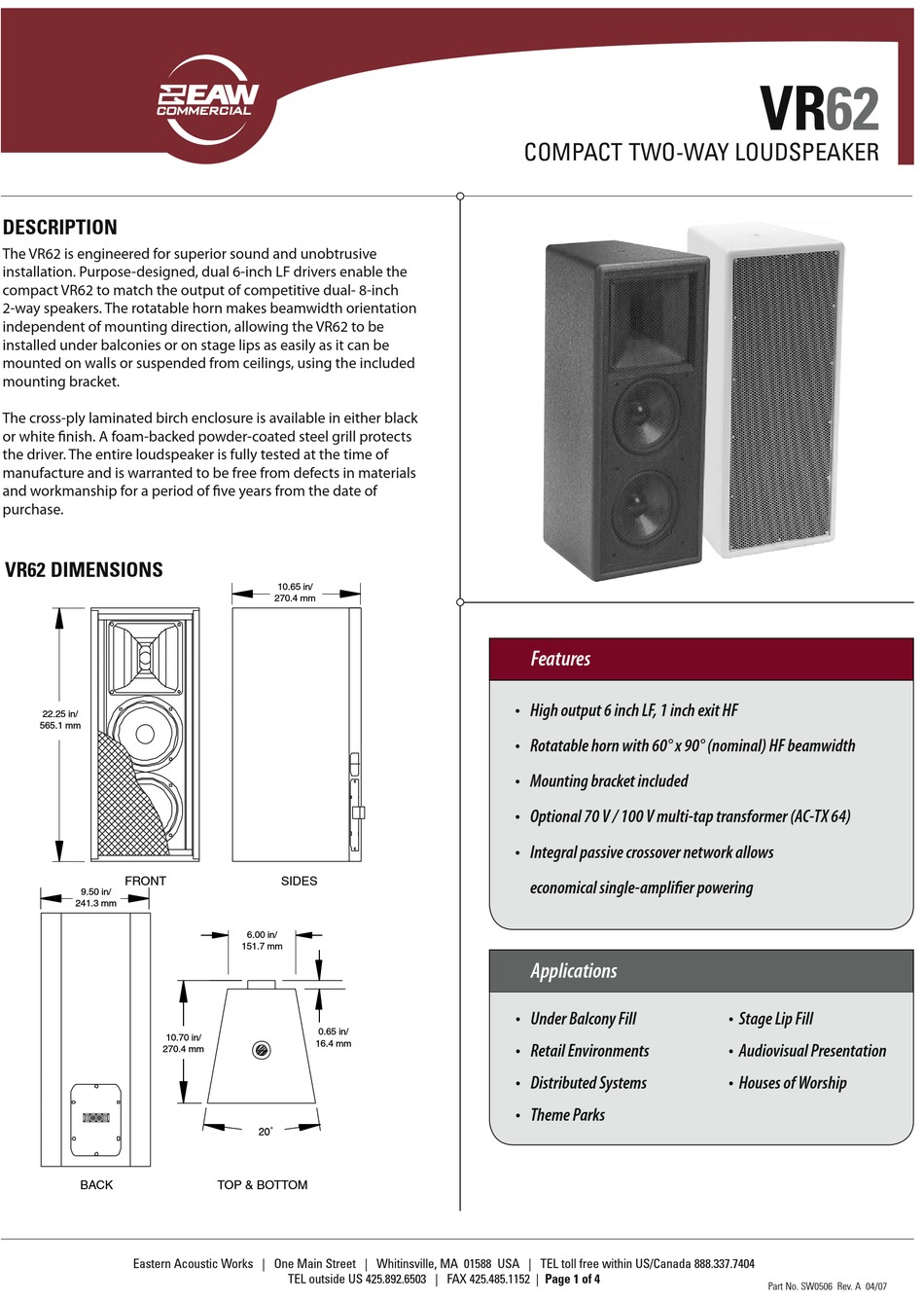

EAW VR62 Specification Sheet

DESCRIPTION
The VR62 is engineered for superior sound and unobtrusive
installation. Purpose-designed, dual 6-inch LF drivers enable the
compact VR62 to match the output of competitive dual- 8-inch
2-way speakers. The rotatable horn makes beamwidth orientation
independent of mounting direction, allowing the VR62 to be
installed under balconies or on stage lips as easily as it can be
mounted on walls or suspended from ceilings, using the included
mounting bracket.
The cross-ply laminated birch enclosure is available in either black
or white finish. A foam-backed powder-coated steel grill protects
the driver. The entire loudspeaker is fully tested at the time of
manufacture and is warranted to be free from defects in materials
and workmanship for a period of five years from the date of
purchase.
VR62 DIMENSIONS
22.25 in/
565.1 mm
10.65 in/
9.50 in/
270.4 mm
241.3 mm
SIDES BACK
10.65 in/
270.4 mm
FRONT SIDES
6.00 in/
151.7 mm
10.70 in/
270.4 mm
TOP & BOTTOM
Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX 425.485.1152 | Page 1 of 4
9.50 in/
241.3 mm
BACK
0.65 in/
16.4 mm
COMPACT TWO-WAY LOUDSPEAKER
6.00 in/
151.7 mm
Features
• High output 6 inch LF, 1 inch exit HF
0.65 in/
10.70 in/
• Rotatable horn with 60° x 90° (nominal) HF beamwidth 16.4 mm
270.4 mm
• Mounting bracket included
• Optional 70 V / 100 V multi-tap transformer (AC-TX 64)
• Integral passive crossover network allows
TOP & BOTTOM
economical single-amplifier powering
Applications
• Under Balcony Fill
• Retail Environments
• Distributed Systems
• Theme Parks
VR62
• Stage Lip Fill
• Audiovisual Presentation
• Houses of Worship
Part No. SW0506 Rev. A 04/07
