Summary of Contents for Numark X2

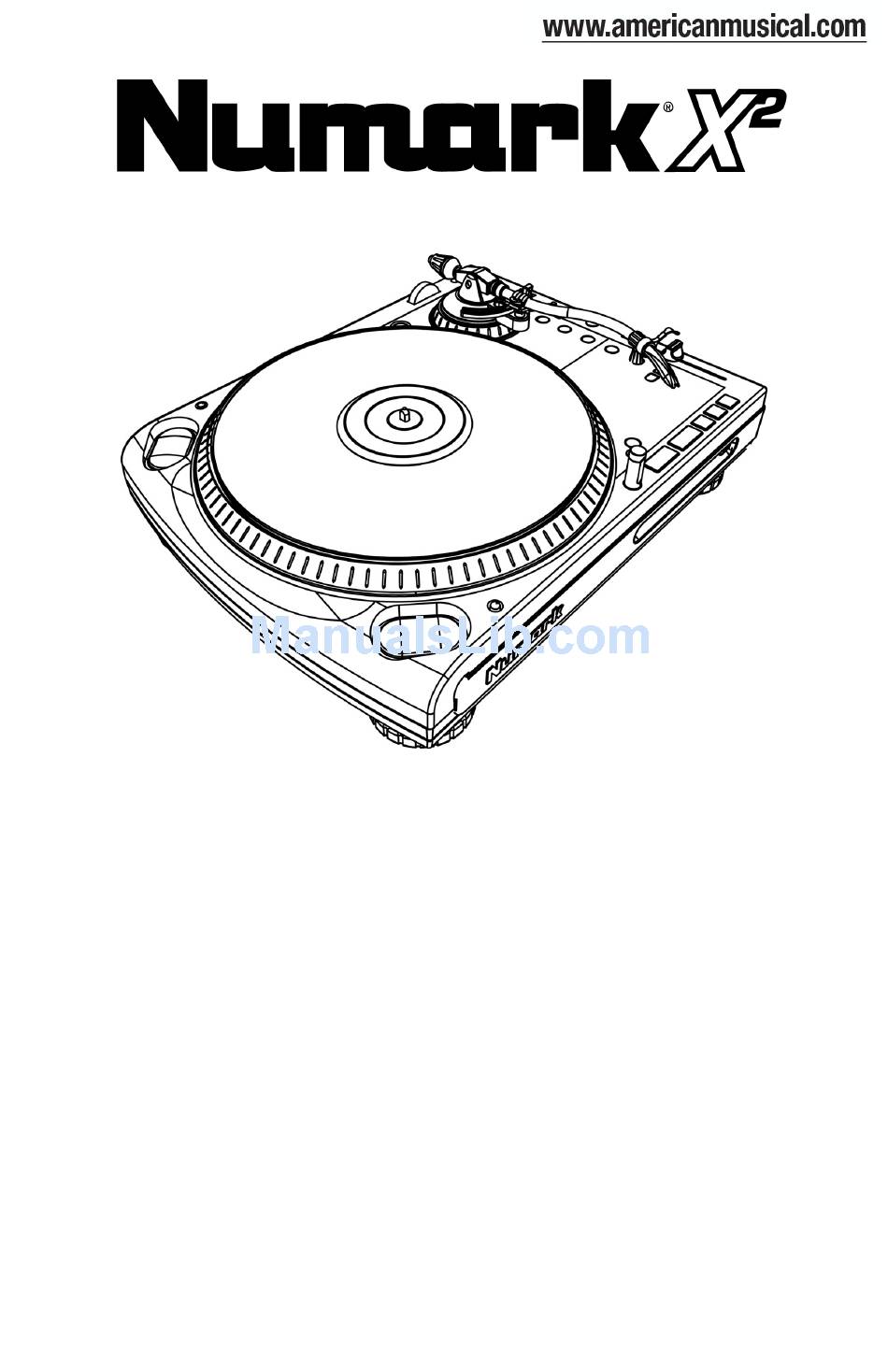

- Page 1 Quick Start Owner’s Manual (ENGLISH) ::::: 1 - 10 Manual Rápido Del Comienzo (ESPAÑOL) ::::: 11 - 20 Manuel d’utilisation du propriétaire (FRANÇAIS) ::::: 21 - 30 Manuale rapido di utilizzazione (ITALIANO) ::::: 31 - 40 Schnellbedienungsanleitung (DEUTSCH) ::::: 41 - 50...
- Page 3 Quick Start Owner’s Manual (ENGLISH) BOX CONTENTS • • Straight Tonearm • Anti-Drag Aluminum Platter • S-Shaped Tonearm • Slipmat • Counter Weight • Control Record • Additional Counter Weight for S- • Headshell Shaped Tonearm • 2.5g Weight for Headshell •...
-
Page 4: Quick Start Owner's Manual (English)
“zero” • last, any audio sources Connect all stereo input sources as Go to http://www.numark.com for product indicated in the diagram, your microphone, registration. and headphones Connect the stereo outputs to power... -
Page 5: Tonearm Assembly
See cartridge setup for more details. WARNING: DO NOT OVERTIGHTEN LOCK COLLAR (5) OR LOCK NUT! (8) CONNECTING ANYTHING OTHER THAN NUMARK ARMS TO THIS COLLAR MAY DAMAGE THE INTERNAL PIN HEIGHTS OF THE CONTACTS! -
Page 6: Tonearm Setup
Tonearm Setup Install cartridge and raise the arm lift for cartridge/stylus protection. Notice how the counterweight can be moved. With the cueing system lift lever down, adjust the weight so entire tonearm assembly is freely balanced. Zero the scale on the weight by moving the black ring until “0” is aligned with the slot. The tonearm assembly should still be balanced as shown in Figure 2. -
Page 7: Bottom Panel Features
Please note: The X2 allows you to scratch over a CD while it is playing! Connect the CD output to a line input on your mixer. Then connect the PHONO TT output to a phono input on another channel of the mixer. -
Page 8: Top Panel Features
Each time Play is pressed after Pause, a new Cue Point is set. PLEASE NOTE: Some features, such as looping, cue point, bleep and scratch mode functionality, will only apply when using the X2 to play CD media. Press “PLAY”... - Page 9 Brake Adjust – changes the amount of time it takes for the platter to stop when the Pause button is pressed. As the knob is turned to the right, the braking time increases. For fast braking, turn the knob all the way left. Power Switch - turns on and off the machine.
- Page 10 Loop In - is the point where you wish the loop to start. A loop is any area of a CD that you choose to repeat seamlessly. The initial “CUE” or “PLAY” point of the CD is by default the “Loop In” point. If you wish to set a new loop-in point, just press “Loop In”...
- Page 11 TT/CD Switch – this switch determines whether you will be playing a vinyl record or a CD with the platter. If the switch is set to “TT”, then the X2 will function as a conventional turntable. If the switch is set to “CD”, the platter will control the CD player. Please note that to control the CD player, you will need to use the special control record which latches onto the locking spindle.
- Page 12 To match the speeds of two units, you can either monitor the music of both units by ear, or use the automatic BPM readout and adjust the speed to match. When the tempo of the music of the CD you wish to match is slow compared to the tempo of the other music, move the slider to the (+) end and match the BPM.
-
Page 13: Specifications
SPECIFICATIONS CD Section: Output Level: 1.5 +/- 0.2 Vms(1KHz 0dB) S/N Ratio: > 85dB Freq Response: 20Hz to 20KHz +/- 2dB Dynamic Range: > 80dB Channel Separation: > 80dB Output Level Difference between Right and Left Channel: < +/- 1dB Channel Balance: +/- 1dB Harmonic Distortion(THD + N): Less than 0.03% Supported CD formats: Redbook CD, and MP3 Data CD...
