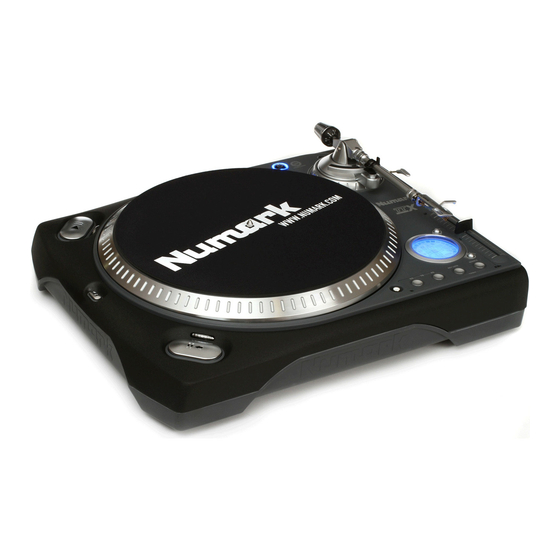

Quick Start Owner's Manual
1.
TTXUSB with Straight Tonearm
2.
Anti-Drag Aluminum Platter
3.
Slipmat
4.
Headshell
5.
2.5g Weight for Headshell
6.
Target Light
7.
45 RPM Adapter
8.
S-Shaped Tonearm

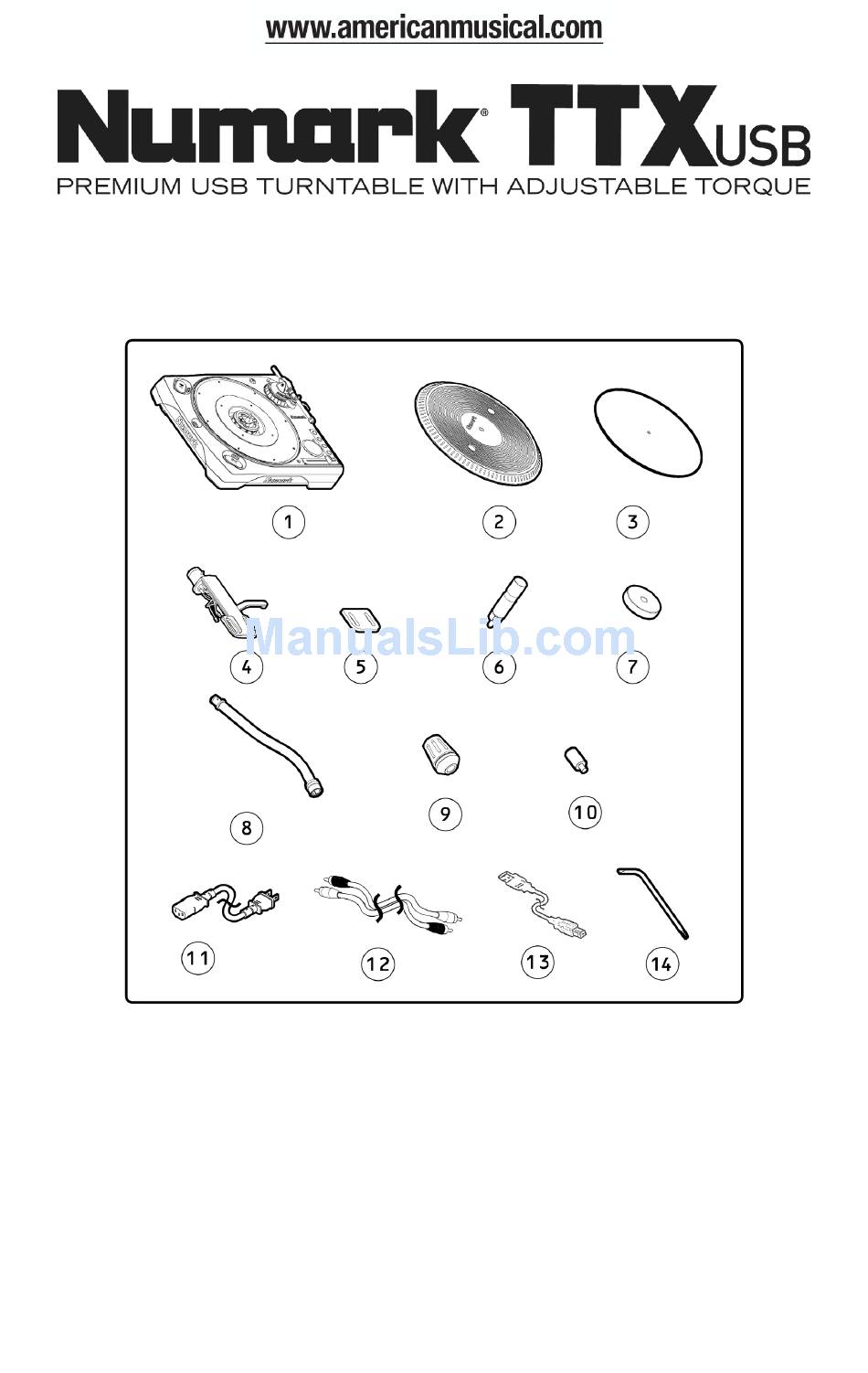

BOX CONTENTS
9.
10. Additional Counter Weight for
11. IEC Power Cable
12. RCA Cord
13. USB Cord
14. Service Tool
Counter Weight
S-Shaped Tonearm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTXUSB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Numark TTXUSB

Summary of Contents for Numark TTXUSB

  • Page 1 Quick Start Owner’s Manual BOX CONTENTS TTXUSB with Straight Tonearm Counter Weight Anti-Drag Aluminum Platter 10. Additional Counter Weight for Slipmat S-Shaped Tonearm Headshell 11. IEC Power Cable 2.5g Weight for Headshell 12. RCA Cord Target Light 13. USB Cord 45 RPM Adapter 14.
  • Page 2 Connect only the supplied power cord and ensure that power setting switch is in the correct position for your region. If you would like to record audio directly to your computer, connect the included USB cord from the TTXUSB to your computer’s USB port. Note: Be sure not to pinch wiring under base.

  • Page 3: Bottom Panel Features

    This switch should be set to the proper level depending on the type of input the turntable is connected to. PHONO is used with traditional turntable inputs on older receivers or where PHONO is stated. LINE level allows the TTXUSB to directly connect to modern electronic inputs such as computers, home stereos, and mixers.

  • Page 4: Tonearm Assembly

    WARNING: DO NOT OVERTIGHTEN LOCK COLLAR (5) OR THE LOCK NUT (8)! CONNECTING ANYTHING OTHER THAN NUMARK ARMS TO THIS COLLAR MAY DAMAGE THE INTERNAL PIN HEIGHTS OF THE CONTACTS!

  • Page 5: Tonearm Setup

    Tonearm Setup Install cartridge and raise the arm lift for cartridge/stylus protection. Notice how the counterweight can be moved. With the cueing system lift lever down, adjust the weight so entire tonearm assembly is freely balanced. Zero the scale on the weight by moving the black ring until “0” is aligned with the slot. The tonearm assembly should still be balanced as shown in Figure 2.

  • Page 6: General Controls

    General Controls Power Button: Turns on the turntable when pressed. It illuminates blue when the turntable is switched on. Start/Stop Buttons: Start and stop the turntable motor. Both buttons have the same function. Platter: This turntable has a special edge design that has been optimized for "dragged" platter slow downs.

  • Page 7: Display Controls

    2 seconds, the BPM counter will recalculate the BPM estimation. If the display is indicating a steady "---" this means that the TTXUSB is calculating the BPM range OR it is unable to distinguish an estimate. If the BPM estimation is a flashing "---" then this indicates that there is no audio being processed.
  • Page 8 Interchanging the Pitch Fader and Button Cartridges Remove the Button Cartridge now by using The TTXUSB unique design allows the the SERVICE TOOL to pry out the cartridge configuration of the PITCH FADER and BUTTON from the turntable. Once removed, detach...

  • Page 9: Other Important Notes

    Any attempt to "customize" your turntable beyond interchanging the tonearm tubes is not • recommended and may result in PERMANENT DAMAGE to the turntable and/or a VOIDED WARRANTY. TTXUSB Specifications Turntable Section: Tonearm Section: Motor: Direct Drive – 16 Pole, 3 phase...
