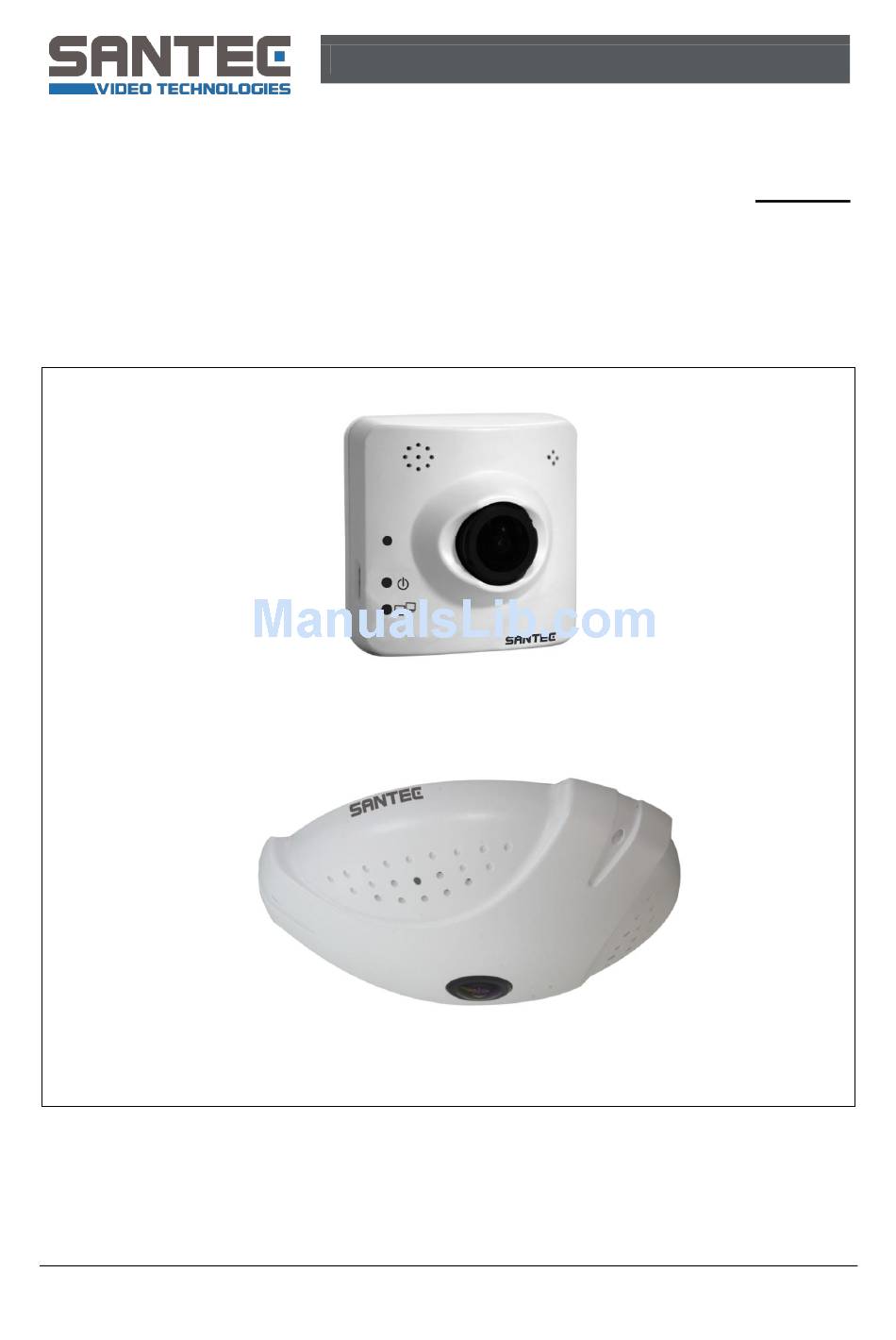

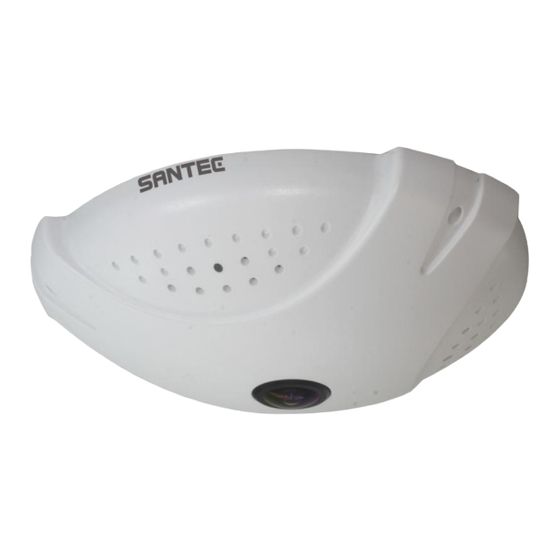

- Page 1 USER MANUAL Mega pixel fish-eye panorama camera Models: SNC-3342 SNC-6332 SNC-3342 SNC-6332 Version 1.0sfi/0112/engl/A5...
- Page 2 Errors excepted. Specifications are subject to change without notice for quality improvement. SANTEC is a registered trademark of SANTEC BW AG. All other companies or products mentioned in this publication are trademarks, registered trademarks or brands of the respective company.
-
Page 3: Table Of Contents
User Manual SNC-3342 / SNC-6332 Table of contents Safety precautions Safety instructions About this user manual Quick installation guide PART I: CAMERA CONNECTIONS; CABLING, TECHNICAL SPECIFICATIONS 1. General 1.1 Included items 1.2 System requirements 1.3 Dimensions 1.4 Control elements and connectors 1.4.1 SNC-3342... -
Page 4: Snc-3342 / Snc
User Manual SNC-3342 / SNC-6332 2.6. Schedule 2.6.1 General 2.6.2 Storage 2.7 Network 2.7.1 General 2.7.2 Advanced 2.7.3 SMTP (e-mail) 2.7.4 DDNS 2.8 System 2.8.1 Information 2.8.2 User 2.8.3 Date & time 2.8.4 Server maintenance 2.8.5 Log service _________________________________________________________________________________ - 4 -... -
Page 5: Safety Precautions
User Manual SNC-3342 / SNC-6332 Safety precautions Caution Description of symbols Danger: This symbol is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to a person. -
Page 6: Safety Instructions
User Manual SNC-3342 / SNC-6332 Safety instructions Before operating the appliance, please read this manual carefully and retain it for further reference. Before cleaning the appliance, it has to be switched off and unplugged from the power outlet. Wipe the appliance with a soft damp cloth. -
Page 7: About This User Manual
Please respect local regulations on waste disposal. About this user manual This manual aims at assisting the user on how to operate cameras SNC-3342 and SNC-6332. This manual is subject to rigid quality control. However, no guarantee can be given that mistakes are not present. -
Page 8: Quick Installation Guide
SNC-3342 / SNC-6332 QUICK INSTALLATION GUIDE QUICK INSTALLATION GUIDE IP panorama camera SNC-3342 To operate the panorama camera, please follow these steps: 1. Install the camera in the desired location. 2. Connect the camera to power using a suitable power adapter (12 V DC) or via PoE (PoE switch or PoE injector required). - Page 9 User Manual SNC-3342 / SNC-6332 QUICK INSTALLATION GUIDE IP panorama camera SNC-6632 To operate the panorama camera, please follow these steps: 1. Install the camera in the desired location. 2. Connect the camera to power using a suitable power adapter (12 V DC) or via PoE (PoE switch or PoE injector required).
-
Page 10: Part I: Camera Connections; Cabling, Technical Specifications
User Manual SNC-3342 / SNC-6332 Part I: Camera connections, cabling, technical specifications 1. General 1.1 Included items IP camera SNC-3342 or SNC-6332 CD (IP-Finder and user manual) Quick installation guide Mounting bracket for SNC-6332 Camera stand/bracket for SNC-3342 1.2 System requirements To control the IP camera via the web browser, please ensure your PC has a good network connection and meets the system requirements as described below. -
Page 11: Dimensions
User Manual SNC-3342 / SNC-6332 1.3 Dimensions SNC-3342: SNC-6332: All dimensions in mm. Pictures not true to scale. Illustrations may vary from the actual product. _________________________________________________________________________________ - 11 -... -
Page 12: Control Elements And Connectors
User Manual SNC-3342 / SNC-6332 1.4 Control elements and connectors 1.4.1 SNC-3342 Camera side view: Focus adjustment (turn the lens) Speaker Power LED Network LED SD card slot RJ-45 LAN socket 12 V DC power jack Camera rear view view:... -
Page 13: Snc-6332
User Manual SNC-3342 / SNC-6332 1.4.2 SNC-6332 Camera front view: Interface Description The light sensor is for detecting the camera’s environmental Light sensor illumination. At night/in darkness, the IR cut filter is switched off to let infrared light pass through for clear night view. - Page 14 User Manual SNC-3342 / SNC-6332 Camera rear view: Interface Description Power jack The input power is 12 V DC, 2A. Connect to PC or hub/switch. For connection to 10Base-T Ethernet or 100Base-TX fast RJ-45 LAN Ethernet cabling. Please use CAT-5 cable to connect the camera socket to a 100Mbps fast Ethernet network switch or hub.
- Page 15 User Manual SNC-3342 / SNC-6332 I/O terminal block: Pin assignments: Function Description Digital input 4 Four sets of digital input, DI1 until DI4. The internal device is also photo-coupled electrical relay. In practice, the external Digital input 3 device can be simply an on/off switch. Four sets of on/off switches can be connected as different trigger source.
- Page 16 User Manual SNC-3342 / SNC-6332 Application 2: _________________________________________________________________________________ - 16 -...
-
Page 17: Camera Installation
User Manual SNC-3342 / SNC-6332 2. Camera installation 2.1 Connect to power 1. Prepare a PC/notebook with an Ethernet link to the network. 2. Connect the LAN port (RJ45) of the camera to a network switch/hub. 3. Plug-in the power jack. -
Page 18: Snc-6332: Installation Using The Mounting Bracket
User Manual SNC-3342 / SNC-6332 2.2 SNC-6332: Installation using the mounting bracket Please follow the steps below to mount the camera using a mounting bracket. _________________________________________________________________________________ - 18 -... -
Page 19: Technical Specifications
User Manual SNC-3342 / SNC-6332 3. Technical specifications Camera SNC-3342 SNC-6332 Camera type 180° panorama IP camera 360° panorama IP camera Sensor type 2 mega pixel CMOS sensor Resolution (pixel) 2 MP (1600 x 1200) Video codec H.264 / MJPEG Max. - Page 20 User Manual SNC-3342 / SNC-6332 Camera SNC-3342 SNC-6332 Alarm management HTTP, FTP, SMTP Schedule Management software support NUUO, Genetec and others Security features HTTPS, IP filter, IEEE 802.1X Supported protocols UPnP, Bonjour, DHCP, FTP, HTTP, SMTP, RTSP Internal memory Micro SD card (optional)
-
Page 21: Appendix: Setup Internet Security
User Manual SNC-3342 / SNC-6332 Appendix: Setup Internet security If ActiveX control installation is blocked, please either set the Internet security level to default or change ActiveX controls and plug-in settings. Internet security level: Default: 1. Open the „Internet Options“ menu. -
Page 22: Part Ii: Camera Configuration And Control Via The Web
User Manual SNC-3342 / SNC-6332 Part II: Camera configuration and control via the web 1. General The camera is equipped with a user-friendly browser-based configuration interface. In this part of the user manual, information on system related settings and camera settings will be described in detail. -
Page 23: Live View
User Manual SNC-3342 / SNC-6332 2.2 Live view Admin button Language Display mode (go to administration page ) setting PTZ control panel Channel selection Action buttons (Full screen, speaker, talk, snapshot, recording) Language settings: On the live view page, you can select your language by clicking on the respective flag icon: English or German. - Page 24 User Manual SNC-3342 / SNC-6332 Display mode: As described in chapter 2.4.2 (“Camera > Advanced”), determine how the camera is installed, either on the wall, on the ceiling or on the table. Depending on the selected mounting, the following options regarding the display modes are available:...
- Page 25 User Manual SNC-3342 / SNC-6332 Ceiling mount: If the camera is installed on a ceiling, the following display modes are available: “Original view”, “broad view”, “quad view”, “quad view with source”, “double view” and “triple view”. Original view: Broad view:...
- Page 26 User Manual SNC-3342 / SNC-6332 Table mount: If the camera is installed on a table, the following display modes are available: “Original view” and “double view”. Original view: Double view: PTZ control panel: The PTZ control panel is only displayed in “quad view”, “quad view with source”...
- Page 27 User Manual SNC-3342 / SNC-6332 Action buttons: Full screen When activated, one channel is displayed in 4 different views. Speaker Click on this button to mute/activate the audio function. Note: This function is only open to a “user” who has been granted this privilege by the administrator.
-
Page 28: Video
User Manual SNC-3342 / SNC-6332 2.3 Video Under the tab <Video>, there are submenus including <General> and <Advanced>. 2.3.1 General The video setting can be found under the path: Video > General Check the OSD “enable” box to display the camera name (max. 20 characters) and date/time. -
Page 29: Advanced
User Manual SNC-3342 / SNC-6332 2.3.2 Advanced The video setting can be found under the path: Video > Advanced Stream 1 setting: RTSP path: This is the stream ID used for RTSP client streaming connection, such as VLC player (default: v00). -
Page 30: Camera
User Manual SNC-3342 / SNC-6332 2.4 Camera Under the tab <Camera>, there are submenus including <General> and <Advanced>. 2.4.1 General The camera setting can be found under the path: Camera > General _________________________________________________________________________________ - 30 -... - Page 31 User Manual SNC-3342 / SNC-6332 Camera general setting: The following parameters can be adjusted in terms of image color/vision: Brightness: Luminance of image. Hue: Color hue can be modified. Saturation: Intensity of a specific color. Contrast: Difference in color and light between parts of an image.
-
Page 32: Advanced
User Manual SNC-3342 / SNC-6332 2.4.2 Advanced The camera setting can be found under the path: Camera > Advanced White balance: Adjustment to compensate for different environments in terms of light source. Users can choose from “auto”, “hold”, “sunny”, “cloudy” or “indoor” so that the camera can determine the correct color compensation due to different light environments. - Page 33 User Manual SNC-3342 / SNC-6332 Infrared (IR) cut filter: Auto: Default setting. Enable: Indicates that the filter is enabled to cut the IR light. Disable: Indicates that the filter is disabled and allows IR light (such as IR LED illuminator) to enter into the camera.
-
Page 34: Event
User Manual SNC-3342 / SNC-6332 2.5 Event Under the tab <Event>, there are submenus including: <Event server>, <Motion detection>, <I/O ports> and <Event configuration>. 2.5.1 Event server The event setting can be found under the path: Event > Event server. - Page 35 User Manual SNC-3342 / SNC-6332 Add HTTP: Name: Enter the name of the HTTP server. URL: Enter the network address of the HTTP server. User name / password: Enter the user name and the password for the HTTP server. _________________________________________________________________________________...
-
Page 36: Motion Detection
User Manual SNC-3342 / SNC-6332 2.5.2 Motion detection The motion detection setting can be found under the path: Event > Motion detection. To create a motion detection area, follow these steps: 1. Click on “Add” to set-up a detection area. -
Page 37: I/O Ports
User Manual SNC-3342 / SNC-6332 2.5.3 I/O ports The I/O port setting can be found under the path: Event > I/O ports. The relay inputs and outputs are photo-coupled (see chapter 1.4.2 for I/O terminal connectors’ pin assignment). _________________________________________________________________________________ - 37 -... -
Page 38: Event Configuration
User Manual SNC-3342 / SNC-6332 2.5.4 Event configuration The event configuration setting can be found under the path: Event > Event configuration. To add an event trigger, follow these steps: 1. Click on “Add” and the setup panel will be expanded (as shown above). -
Page 39: Schedule
User Manual SNC-3342 / SNC-6332 2.6 Schedule Under the tab <Schedule>, there are submenus including: <General> and <Storage>. 2.6.1 General The schedule setting can be found under the path: Schedule > General. Follow the steps below on how to set a schedule: 1. -
Page 40: Storage
User Manual SNC-3342 / SNC-6332 2.6.2 Storage The schedule setting can be found under the path: Schedule > Storage. Here, information on the storage status is displayed. A message is displayed when a recording is currently running. Note: The micro SD card must not be removed during the recording process. -
Page 41: Network
User Manual SNC-3342 / SNC-6332 2.7 Network Under the tab <Network>, there are submenus including: <General>, <Advanced>, <SMTP (e-mail)> and <DDNS>. 2.7.1 General The network setting can be found under the path: Network > General. On this page, the camera’s IP configuration is displayed including DHCP and static IP setting. -
Page 42: Advanced
User Manual SNC-3342 / SNC-6332 2.7.2 Advanced NTP configuration: Users may configure a NTP (Network Time Protocol) server so that the camera’s system date and time can be synchronized with a specified time server or DHCP server. HTTP setting: Users may set the HTTP port that will be applied for web access. Default port = 80. -
Page 43: Smtp (E-Mail)
User Manual SNC-3342 / SNC-6332 2.7.3 SMTP (e-mail) Configure an e-mail host for the camera which will send e-mails on behalf of the configured e-mail account to a specified mail address (also see the chapter on “event configuration”). Fill-in the information about the mail server, server port, authentication information (if required) and the sender’s e-mail address. -
Page 44: Ddns
User Manual SNC-3342 / SNC-6332 2.7.4 DDNS Check the box “DDNS enable” for dynamic DNS configuration. Host name: Assigned name that will be used for accessing the camera. User name / password: Account authentication for logging on to this service. -
Page 45: System
User Manual SNC-3342 / SNC-6332 2.8 System Under the tab <System>, there are submenus including: <Information>, <User>, <Date & time>, <Server maintenance> and <Log service>. 2.8.1 Information The system setting can be found under the path: System > Information. On this page, a list of system and network configuration is displayed. These data are for information only and cannot be changed on this page. -
Page 46: User
User Manual SNC-3342 / SNC-6332 2.8.2 User Check the box “Enable anonymous login” if you don’t wish to have a user name displayed. 2.8.3 Date & time On this page, users may configure the system date and time as well as synchronization options with a PC and NTP server. -
Page 47: Server Maintenance
User Manual SNC-3342 / SNC-6332 2.8.4 Server maintenance This page provides some tools for system maintenance, such as firmware information and upgrades, backup and upload settings. 2.8.5 Log service Most system operations and/or processes will be kept in a log system. The link provides the review of these records. - Page 48 Notes: Your local distributor: __________________________________________________________________________ www.santec-video.com...
