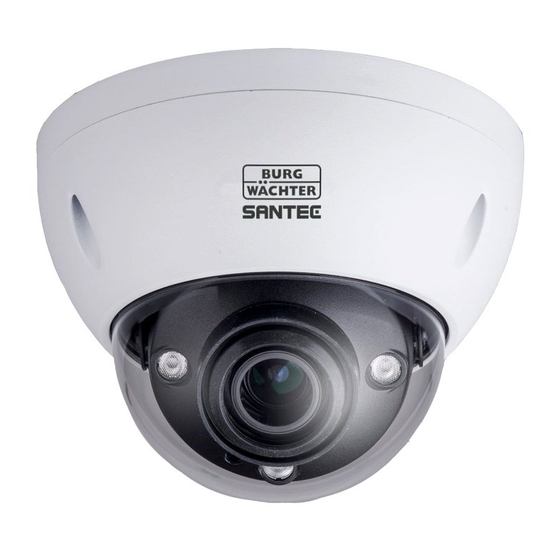

Santec SNC-831DDIA Quick Installation Manual

Santec SNC-831DDIA Quick Installation Manual

Ultra hd/4k ip dome camera

Advertisement

Quick Links

Lieferumfang:
1x Kamera SNC-831DDIA
1x Bohrlochschablone
1x Set Schrauben und Dübel
1x Kurzanleitung und Sicherheitshinweise
1x CD mit Browser Plugin, Config Tool,
Video Player, Benutzerhandbuch
Besondere Ausstattungsmerkmale:
Unterstützt Ultra HD/4K
Max. 12 MP Auflösung
Brillante Bilder in hoher Qualität auch bei
geringer Beleuchtung
Einfache Bedienung dank einer intuitiven
Benutzeroberfläche
Erweiterte Intelligente Video Analyse
(IVA+), inkl. Heatmap und Personenzählung
3x Streaming, Multicast
Auto Backfocus Funktion (ABF)
1/1.7" Progressive Scan CMOS Sensor
12 B/S bei 12MP, 15/30 B/S bei 8 MP
12 V DC, 24V AC, PoE Betriebsspannung
4 Privatzonen
Elektronische Bildstabilisierung (EIS)
Mit IR-Strahlern (bis zu 50m Reichweite)
KURZANLEITUNG / QUICK INSTALLATION GUIDE
Ultra HD/4K IP-Kuppelkamera
Ultra HD/4K IP dome camera
Items included in the delivery:
1x Camera SNC-831DDIA
1x Mounting drawing paper
1x Set screws and anchors
1x Quick installation guide and security note
1x CD with browser plugin, Config Tool,
video player, user manual
Special features:
Supports Ultra HD/4K
Max. 12 MP resolution
Excellent image quality, even under
poor light conditions
Easy to use thanks to intuitive user
interface
Extended Intelligent Video Analytics
(IVA+), incl. heatmap and people
counting
3x streaming, multicast
Auto Backfocus function (ABF)
1/1.7" progressive scan CMOS sensor
12 fps at 12 MP, 25/30 fps at 8 MP
12 V DC, 24 V AC, PoE voltage
4 privacy zones
Electronic image stabilization (EIS)
Incl. IR LEDs (up to 50m range)
1
SNC-831DDIA
Modell / Model:
SNC-831DDIA
Version 1.0sfi/0416/dt-engl/A5
e

Advertisement

loading
Need help?

Need help?

Do you have a question about the SNC-831DDIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Santec SNC-831DDIA

  • Page 1 Ultra HD/4K IP-Kuppelkamera Ultra HD/4K IP dome camera Modell / Model: SNC-831DDIA Lieferumfang: Items included in the delivery: 1x Kamera SNC-831DDIA 1x Camera SNC-831DDIA 1x Bohrlochschablone 1x Mounting drawing paper 1x Set Schrauben und Dübel 1x Set screws and anchors...
  • Page 2 SNC-831DDIA Technische Zeichnung / Technical drawing: Alle Angaben in mm. All dimensions in mm. Zeichnung nicht maßstabsgerecht. Drawings not true to scale. Irrtum und technische Änderungen Subject to technical changes. vorbehalten. Errors excepted. Bitte beachten: Please note: Bitte beachten Sie auch das Beiblatt mit...
  • Page 3 SNC-831DDIA Technische Daten / Technical specifications: Modell / Model SNC-831DDIA Kameratyp / Camera type UHD/4K IP-Kuppelkamera / UHD/4K IP dome camera Installation / Installation Innenbereich und Außenbereich /Indoors and outdoors Videonorm / Video norm PAL / NTSC 1/1.7” 12 Megapixel Progressive Scan CMOS...
  • Page 4 SNC-831DDIA Inbetriebnahme: Getting started: Installieren Sie die Kamera am Install the camera in the desired gewünschten Ort. location. Schließen Sie die Kamera an die Connect the camera to power / PoE. Betriebsspannung / PoE an. Install the IP-Finder which is included on Installieren Sie den auf der CD the supplied CD.
  • Page 5 SNC-831DDIA Beschreibung der Kamera-Konfigurationen Description of camera configurations 1. LIVE 1. LIVE Stream Stream Protokoll Protocol Manuelle Aufnahme Manual recording Schnappschuss Snapshot 2. WIEDERGABE 2. PLAYBACK Aufnahmen Recordings Suche Search Daten Download File download Kalender Date 3. EINSTELLUNGEN 3. SETTINGS...
  • Page 6 Warenzeichen der SANTEC BW AG. Übrige evtl. genannte Firmen- und Produktnamen SANTEC is a registered trademark of sind Warenzeichen oder eingetragene SANTEC BW AG. All other companies or Warenzeichen bzw. Marken der jeweiligen products mentioned in this publication are Inhaber.
