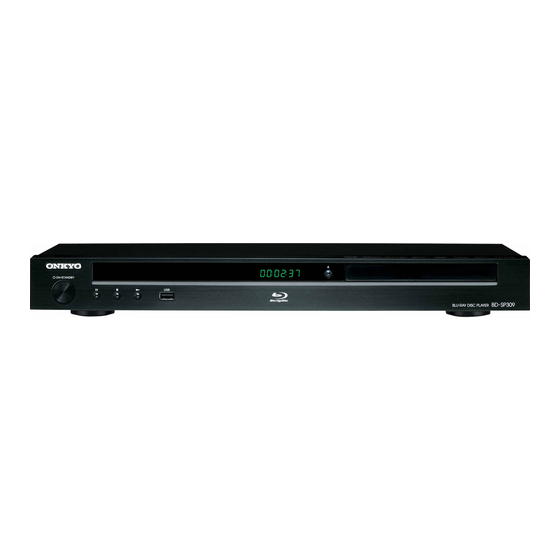

BLU-RAY DISC PLAYER
BD-SP309
Instruction Manual
Thank you for purchasing an Onkyo BLU-RAY DISC
PLAYER. Please read this manual thoroughly before
making connections and plugging in the unit. Following
the instructions in this manual will enable you to obtain
optimum performance and listening enjoyment from
your new BLU-RAY DISC PLAYER. Please retain this
manual for future reference.
Downloaded From Disc-Player.com Onkyo Manuals
Contents
Introduction . . . . . . . . . . . . . .2
Connection . . . . . . . . . . . . .15
Playback . . . . . . . . . . . . . . .19
Settings . . . . . . . . . . . . . . . .39
Troubleshooting . . . . . . . . .50
Appendix . . . . . . . . . . . . . . .54
E
n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BD-SP309 and is the answer not in the manual?

Questions and answers

Related Manuals for Onkyo BD-SP309

Summary of Contents for Onkyo BD-SP309

  • Page 1 Troubleshooting ..50 Appendix ....54 Thank you for purchasing an Onkyo BLU-RAY DISC PLAYER. Please read this manual thoroughly before making connections and plugging in the unit.

  • Page 2: Important Safety Instructions

    À ue-like gap for warm air to into the apparatus, the apparatus has been escape. exposed to rain or moisture, does not operate normally, or has been dropped. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 3: Precautions

    1,000 hours of use Caution depending on the operating environment. Excessive sound pressure from earphones and Contact your Onkyo dealer for details. headphones can cause hearing loss. 11. Moisture Condensation 6. Batteries and Heat Exposure Moisture condensation may damage this Warning unit.
  • Page 4 ONKYO product quali¿ ed personnel. described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3. GROEBENZELL, GERMANY K. MIYAGI ONKYO EUROPE ELECTRONICS GmbH. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 5: Table Of Contents

    Language Setting ..... . . 20 Appendix Operating ONKYO AV Receiver Using the Remote Control ......21 On-screen Error Messages .

  • Page 6: Getting Started

    Audio CDs. Indicates the functions that can be performed for CD-R discs. Indicates the functions that can be performed for CD-RW discs. Indicates the functions that can be performed for USB memory devices. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 7: About Media Types

    Video 2/ALL + Video 8 cm (Movie) DVD+RW/DVD+R Video/VR/ AVCHD Audio 12 cm DVD-RW/DVD-R format (¿ nalised + Video 8 cm DVD+R DL/DVD-R disc only) (Movie) DivX+HD (H.264/MKV) JPEG Still image (JPEG ¿ le) Downloaded From Disc-Player.com Onkyo Manuals Audio...

  • Page 8: Discs That Cannot Be Used With This Player

    BD-player. This BD-player uses the latest technology available at the time of development and cannot guarantee support for future enhancements or changes to the standard. Downloaded From Disc-Player.com Onkyo Manuals...
  • Page 9 Go to vod.divx.com for more information on how to complete your registration. You can play still images (JPEG ¿ les) /audio data (MP3 ¿ les) with this unit by making folder(s) on discs or USB memory devices as shown below. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 10: About Disc Contents

    5 Region code This indicates the region code (playable region code). Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 11: Important Information

    Player from operating properly. To remove condensation: • Take out the disc and leave the Player with the power off until the condensation disappears. Using the Player when there is condensation may cause malfunction. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 12: License And Copyright

    Blu-ray™ and the logos are trademarks of Oracle America, trademarks of the Blu-ray Disc Inc. in the U.S. and other Association. countries. “Blu-ray 3D” and “Blu-ray 3D” logo are trademarks of Blu-ray Disc Association. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 13: Major Components

    If you 4 DIGITAL AUDIO OUT OPTICAL terminal (p.17) insert or remove the device with the player on, the data may become damaged. 5 AC INLET terminal (p.19) Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 14: Remote Control Unit

    • Each time you perform this operation, the function is activated or deactivated. • If you try to operate the Player while the keylock function is set, “Hold” blinks on the front display panel to indicate that the keylock function is set. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 15: Connecting To A Tv/Projector

    • For connection to a TV/projector, refer to the TV/projector’s operation manual. After connecting • If desired, connect audio equipment. (Page 17) • If necessary, perform the Audio Video Settings. (Page 40) • Prepare the desired disc or content and start playback. (Page 22) Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 16: Connecting To An Amplifi Er/Av Receiver

    If the ampli¿ er/AV receiver is not 3D compatible, connect the HDMI cable to the TV directly while connecting the player and the ampli¿ er/AV receiver using an optical digital cable. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 17: Digital Audio Connection

    • When using OPTICAL DIGITAL AUDIO OUT, 5.1ch Digital Output is available. (7.1ch Digital Output is not available.) After connecting • If necessary, perform the Audio Video Settings. (Page 40) • Prepare the desired disc or content and start playback. (Page 22) Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 18: Broadband Internet Connection

    • When enjoying BD-LIVE functions, see pages 25 and 42. • To play back ¿ les via the Home Network, see page 31. • To update the software via the Internet, perform Software Update Settings. (Page 45) Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 19: Before Starting Playback

    • If you are not going to use this Player for a long • Do not mix old and new batteries, or mix different period of time, be sure to remove the AC cord brands. from the AC outlet. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 20: Turning The Power On

    About the Home screen ENTER. English Nederlands ýesky When turning on the player, the Home screen Deutsch Svenska Magyar appears. Français Dansk Slovensky Italiano Norsk Slovenšþina Español Suomi Português Polski Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 21: Operating Onkyo Av Receiver Using The Remote Control

    • To select the DVD disc language, such as • Depending on the connected TV, HDMI Control subtitle language, etc., see page 23. may not be performed correctly. • Onkyo does not guarantee 100% interoperability Operating ONKYO AV Receiver with other brands of HDMI Control compliant devices.

  • Page 22: Video/Picture/Music Playback

    In this case, open the disc tray or enter • For a description of other playback functions, standby.) refer to “Playback Functions” on page 33. NOTE • Resume playback may not function depending on the disc. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 23: Bd/Dvd Menus

    • The titles listed in the top menu and a disc guide (for options like subtitles and audio languages) are given in the disc menu. Press to select the subtitle language, then press ENTER. Press POP UP MENU/MENU to exit. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 24: Enjoying Bonusview Or Bd-Live

    USB memory device. be removed depending on the content. Also, • If a USB memory device containing other data playable areas may be restricted. (previously recorded) is used, the video and audio may not play back properly. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 25: Dvd-R/-Rw (Vr Format) / Bd-Re/-R (Bdav Format) Playback

    In such cases, eject played back. (AACS: Advanced Access Content the disc from the player, and then erase the data System) in the USB memory device in the “USB Memory Management” menu on page 44. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 26: Playback By Selecting A Title

    ¿ rst 21/5 Fri 9:30 AM 110 Min. and the oldest title ¿ rst. Program Program Program Program Program Program Select Enter Return Exit Title Name By Chapter Playlist Functions Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 27: Audio Cd Playback

    To pause the playback at any time, press • Press to return to playback. Press to stop playback. To return to the HOME screen, press again, and then press HOME or EXIT. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 28: Audio Data (Mp3 File) Playback

    “Home Network”, then press or ENTER. Press RETURN or D (Blue) to exit the * Display name varies depending on the type of media “Functions” menu. inserted. NOTE • The displayed items vary depending on the disc. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 29: Displaying Still Images (Jpeg Fi Les)

    “Picture”, then press • The Repeat function does not work. or ENTER. Press to select “DISC”*, “USB” or “Home Network”, then press or ENTER. * Display name varies depending on the type of media inserted. Downloaded From Disc-Player.com Onkyo Manuals...
  • Page 30 Press ENTER to display the selected ¿ le. not contain thumbnail data. • The selected still image appears on the screen. 1/77 To return to the HOME screen, press again, and then press HOME or EXIT. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 31: Downloaded From Disc-Player.com Onkyo Manuals Accessing Upnp* Servers

    • Please refer to the operating instructions for the software or devices for more information. Types of playable ¿ les Video DivX Plus HD (avi/divx/mkv) Music Picture Downloaded From Disc-Player.com Onkyo Manuals...
  • Page 32 UPnP server which you want to access, then press ENTER or • The folder list or ¿ le list of the UPnP server which you accessed is displayed. • The previous screen appears when RETURN is pressed. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 33: Playback Functions

    (except when playing audio CDs). At the end or beginning of the title, Fast Forward/Fast Reverse will be cancelled and normal playback will automatically resume. NOTE • Subtitles are not played back with BD/DVD video discs during Fast Forward and Fast Reverse. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 34: Slow Playback (Forward/Reverse)

    Example: Repeat playback of a title (TITLE) BD-VIDEO 1 / 3 00 : 20 : 30 2 English 1 DTS On Title Repeat Press REPEAT to return to normal playback. NOTE • “Scene Selection” operation is not available for BD video. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 35: Partial Repeat Playback (Repeat Playback Of A Specifi Ed Part)

    Function Control screen (Page 37). • The operation of subtitles differs according to each disc. You may need to refer to the operation manual of the disc. • The display for subtitle information automatically disappears after 5 seconds. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 36: Switching The Angle

    Control screen. • The operation of angles differs according to each disc. You may need to refer to the operation manual of the disc. • The display for angle information automatically disappears after 5 seconds. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 37: Settings During Playback

    • The displayed items vary depending on the disc. • If you access the Function Control screen during playback of a BD/DVD video, it may be impossible to operate the BD/DVD video playback. In cases like this, close the Function Control screen. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 38: Functions Which Can Be Set

    • The current Title (or Chapter) or partial segments can be repeatedly played back. Repeat Playback is also possible with the REPEAT button on the remote control. NOTE • These functions may not work with all discs. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 39: Settings

    ENTER. Press RETURN to return to the previous “menu” page. Exit the menu screen Press HOME or EXIT to exit. Press HOME or EXIT to exit. NOTE • Settings with (*) are the factory presets. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 40: Audio Video Settings

    * Lower the audio volume before setting. If you do not do so, the speakers may emit a loud sound or excessive output may Item be applied to the speakers. Bitstream: • Select this when connecting to HDMI equipment with a built-in decoder for DOLBY DIGITAL, etc. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 41: Smart Settings

    1–7: Prohibits play of DVD-video with corresponding ratings recorded on them. Item (Parental control level for BD-video) No Limit: All BD-video can be played. 0–99 year(s): Prohibits play of BD-video with corresponding ratings recorded on them. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 42: On Screen Language

    • When viewing 3D images, viewing for a long period of time or lying on your back may cause eye strain and discomfort. In addition, 3D images may affect the eyesight of young children/infants, so keep them from viewing the images. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 43: Communication Setup

    • As a result of the test, if the Internet connection fails, enter the setup values manually. 10. Press to select “Complete”, then press ENTER. 11. Press HOME or EXIT to return to the Home screen. • To perform other settings, press Downloaded From Disc-Player.com Onkyo Manuals RETURN.

  • Page 44: Usb Memory Management

    ENTER. 6. Repeat step 1 to 5 to ¿ nish inputting all the • The “USB Memory Management” screen is required numbers. displayed. • “No USB Memory” appears when no USB memory is inserted. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 45: Software Update Settings

    3. Press to select “Auto Update Setting”, then press or ENTER. 4. Press to select “Yes”, then press ENTER. • After this, an Internet connection will be made automatically every time this player is turned on. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 46: Manual Update From Network

    ¿ le, select “Yes”, and go to step 6. Latest version of firmware has been found. Firmware update is available. Proceed with update? Current Version : xxxxxxxxxx Latest Version : yyyyyyyyyy If “Yes” will be selected, version update will start. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 47: Manual Update From Usb Memory Device

    Storage and the USB (rear) terminal cannot be • For methods such as downloading and copying used for Software Update. to a USB memory device, carefully read the description shown on the website before performing the operation. Downloaded From Disc-Player.com Onkyo Manuals...
  • Page 48 USB device and try Software Update again. 12. Press to turn off the player. • Delete unneeded software update data using a PC after the software update process is completed. 13. Remove the USB memory device. Downloaded From Disc-Player.com Onkyo Manuals...
  • Page 49 29.97, 25, 24, 23.97 23.97 Audio codec Sampling Frequency Bit rate MP3 (MPEG Audio Layer 3) 16-48 kHz 16-320 kbps AAC/LC, AAC/HEv1, AAC/HEv2 6-48 kHz 8-1024 kbps -48 kHz 32-448 kbps Subtitles SubRip SubStation Alpha Downloaded From Disc-Player.com Onkyo Manuals Advanced SubStation Alpha...

  • Page 50: Troubleshooting

    • Use the remote control within its operating range. (Page 19) not work. • Replace the batteries. (Page 19) Cannot operate the • Are you operating the Player within the speci¿ ed operating temperature Player. range? (Page 55) Downloaded From Disc-Player.com Onkyo Manuals...
  • Page 51 • The player may sometimes make a snapping sound when starting snapping sound when playback if it has not been operated in a while. These sounds are not starting playback or malfunctions of the player but are normal operating conditions. loading a disc. Downloaded From Disc-Player.com Onkyo Manuals...
  • Page 52 Audio is not output, or • The audio may not be output or the images may not be played back images are not played properly for some discs in which copyrightprotected contents are back properly. recorded. Downloaded From Disc-Player.com Onkyo Manuals...
  • Page 53 • When the problem persists even after performing a reset, unplug the AC cord and plug it in again. If this does not solve the problem, contact the nearest service centre approved by ONKYO SOUND & VISION CORPORATION.

  • Page 54: On-Screen Error Messages

    • Occurs if USB memory not compliant • Connect USB 2.0 High cannot be used. It should be with USB 2.0 High Speed (480 Mbit/s) Speed (480 Mbit/s) compliant with USB 2.0 is used (i.e. USB 1.0/USB 1.1). compliant USB memory. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 55: Specifi Cations

    CD-R, CD-RW, DVD-R, DVD-RW, DVD-R DL, DVD+R, DVD+RW, DVD+R DL, BD-R, BD-RE (Discs that have not been properly ¿ nalised may only be partially playable or not playable at all.) Design and speci¿ cations are subject to change without notice. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 56: Glossary

    This is a digital sound system developed by DTS, Although a BD-ROM may contain any form of Inc. for use in cinemas. data, most BD-ROM discs will contain movies in High De¿ nition format for playback on Blu-ray Disc players. Downloaded From Disc-Player.com Onkyo Manuals...
  • Page 57 MPEG-2. format and Video format. DVDs created in Video format have the same format as a DVD video, while discs created in VR (Video Recording) format allow the contents to be programmed or edited. Downloaded From Disc-Player.com Onkyo Manuals...
  • Page 58 Code identifying a geographic region of compatibility for a BD/DVD. Resume playback (Page 22) If you stop playback while it is in progress, the Player stores the stop position in memory, and this function lets you playback from that point. Downloaded From Disc-Player.com Onkyo Manuals...

  • Page 59: About Software License

    • LibPThread • Librt • libsoup • libssl and libcrypto • Libstdc++ • Libxml2 • libxml2 • lua • lua-slncryptop • lua-xmlreader • No oss • OpenSSL • Optional UnitTest++ Software • pango • swfdec • Webkit • zlib Downloaded From Disc-Player.com Onkyo Manuals...
  • Page 60 1301, 555 Tower, No.555 West NanJin Road, Jin an, Shanghai, China 200041, Tel: 86-21-52131366 Fax: 86-21-52130396 D1104-2 SN 29400765A (C) Copyright 2011 ONKYO SOUND & VISION CORPORATION Japan. Downloaded From Disc-Player.com Onkyo Manuals All rights reserved. * 2 9 4 0 0 7 6 5 A *...

Table of Contents
