Onkyo BD-SP809 Quick Start Manual

BLU-RAY DISC™ PLAYER
BD-SP809

Quick Start Guide

Supplied Accessories
Remote Control (1) Batteries (2)
AC cord (1)
Audio / video cables (1)
Instruction Manual
(CD-ROM) (1)
Quick Start Guide (1)
Safety Information (1)
Installing the Batteries in the Remote Control
Install 2 R6 (1.5V) batteries matching the polarity indicated
inside battery compartment of the remote control.
Incorrect use of batteries can result in hazards such as
leakage and bursting. Please observe the following:
• Do not mix alkaline, standard (carbon-zinc), or
rechargeable (ni-cad, ni-mh, etc) batteries.
• Do not mix new and old batteries together.
• Do not use different kinds of batteries together. Although
they may look similar, different batteries may have
different voltages.
• Make sure that the + and - ends of each battery match
the indications in the battery compartment.
• Remove batteries from battery compartment, when the
remote is not going to be used for a month or more.
• When disposing of used batteries, please comply with
governmental regulations or environmental public rules
that apply in your country or area.
• Do not recharge, short-circuit, heat, burn or disassemble
batteries.

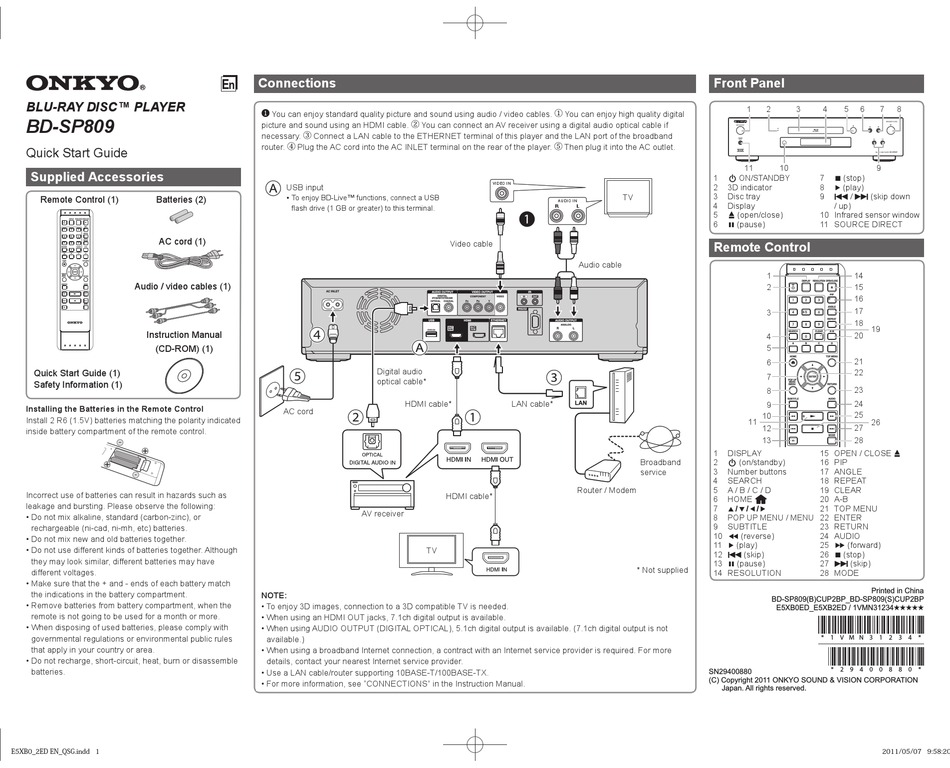

Connections
E
n
You can enjoy standard quality picture and sound using audio / video cables.
picture and sound using an HDMI cable.
necessary. Connect a LAN cable to the ETHERNET terminal of this player and the LAN port of the broadband
router. Plug the AC cord into the AC INLET terminal on the rear of the player.
USB input
• To enjoy BD-Live™ functions, connect a USB
flash drive (1 GB or greater) to this terminal.
Digital audio
optical cable*
AC cord
AV receiver
NOTE:
• To enjoy 3D images, connection to a 3D compatible TV is needed.
• When using an HDMI OUT jacks, 7.1ch digital output is available.
• When using AUDIO OUTPUT (DIGITAL OPTICAL), 5.1ch digital output is available. (7.1ch digital output is not
available.)
• When using a broadband Internet connection, a contract with an Internet service provider is required. For more
details, contact your nearest Internet service provider.
• Use a LAN cable/router supporting 10BASE-T/100BASE-TX.
• For more information, see "CONNECTIONS" in the Instruction Manual.
You can enjoy high quality digital
You can connect an AV receiver using a digital audio optical cable if
Then plug it into the AC outlet.
VIDEO IN
AUDIO IN
R L
Video cable
HDMI cable* LAN cable*
Router / Modem
HDMI cable*
TV

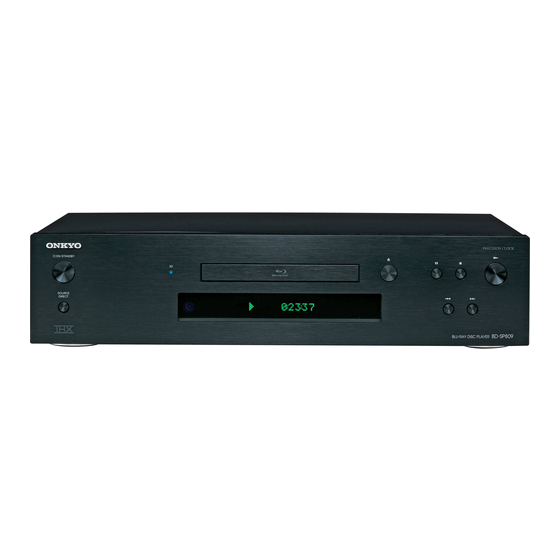

Front Panel
1
11
1 . ON/STANDBY
2 3D indicator
3 Disc tray
TV
4 Display
5 fl (open/close)
6 Δ (pause)
Remote Control
Audio cable
11
1 DISPLAY
Broadband 2 . (on/standby)
service 3 Number buttons
4 SEARCH
5 A / B / C / D
6 HOME
7 Î / ï / Í / Æ
8 POP UP MENU / MENU
9 SUBTITLE
10 ¢ (reverse)
11 Æ (play)
12 H (skip)
13 Δ (pause)
* Not supplied
14 RESOLUTION
SN29400880
(C) Copyright 2011 ONKYO SOUND & VISION CORPORATION
Japan. All rights reserved.
2 3 4 5 6 7 8
10 9
7 Ê (stop)
Æ (play)
8
9 H / G (skip down
/ up)
10 Infrared sensor window
11 SOURCE DIRECT
1 14
2 15
16
17
3
18
19
20
4
5
21
6
22
7
23
8
24
9
25
10
26
12 27
13 28
15 OPEN / CLOSE fl
16 PIP
17 ANGLE
18 REPEAT
19 CLEAR
20 A-B
21 TOP MENU
22 ENTER
23 RETURN
24 AUDIO
25 ∫ (forward)
26 Ê (stop)
27 G (skip)
28 MODE
