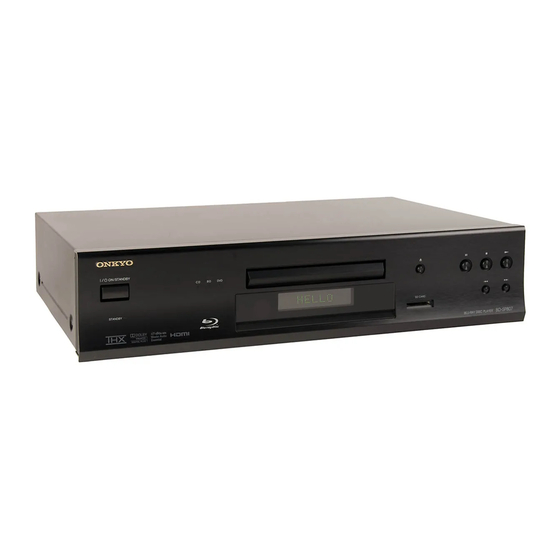

BLU-RAY DISC PLAYER
BD-SP807
Instruction Manual
Thank you for purchasing an Onkyo BLU-RAY DISC
PLAYER. Please read this manual thoroughly before
making connections and plugging in the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new BLU-RAY DISC PLAYER.
Please retain this manual for future reference.
Contents
Introduction .............................................. 2
Connections ............................................ 13
Playback .................................................. 20
Function Setup........................................ 36
Others ...................................................... 54
En

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BD-SP807 and is the answer not in the manual?

Questions and answers

Related Manuals for Onkyo BD-SP807

Summary of Contents for Onkyo BD-SP807

  • Page 1 Instruction Manual Playback ..........20 Function Setup........36 Others ............54 Thank you for purchasing an Onkyo BLU-RAY DISC PLAYER. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new BLU-RAY DISC PLAYER.

  • Page 2: Precautions

    PRECAUTIONS CAUTION AVIS WARNING: RISK OF ELECTRIC SHOCK RISQUE DE CHOC ELECTRIQUE TO REDUCE THE RISK OF FIRE OR ELECTRIC DO NOT OPEN NE PAS OUVRIR SHOCK, DO NOT EXPOSE THIS APPARATUS The lightning flash with arrowhead symbol, within an equilateral TO RAIN OR MOISTURE.
  • Page 3 Excessive sound pressure from earphones and regular inspection and maintenance (cleaning or headphones can cause hearing loss. worn part replacement). Contact your Onkyo dealer. 6. Batteries and Heat Exposure 11. Moisture Condensation Warning Moisture condensation may damage this unit.
  • Page 4 GERMANY condensation will have evaporated. declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the 12. Region Codes—The BD/DVD standard uses corresponding...
  • Page 5 • If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit to the standby mode, unplug the power plug, and contact your Onkyo dealer. Disc handling • For best results, keep your discs clean. Fingerprints and dust can affect the sound and picture quality and should be removed as follows.
  • Page 6 PRECAUTIONS Trademark Information “BONUSVIEW” is trademark HDMI, the HDMI logo and of Blu-ray Disc Association. High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. “BD-LIVE” logo is trademark of Blu-ray Disc Association. Manufactured under license from Dolby Laboratories. THX is a trademark of THX Dolby and the double-D Ltd.

  • Page 7: Table Of Contents

    CONTENTS Introduction Function Setup PRECAUTIONS .............. 2 FUNCTION SETUP ............36 FEATURES ..............8 Using the Setup Menu ............36 Features ..................8 Network Connection .............49 Symbols Used in this Manual ..........8 Software Upgrade ..............52 FUNCTION OVERVIEW ..........9 Front Panel ...................9 Others Rear Panel ..................9 TROUBLESHOOTING ..........

  • Page 8: Features

    This unit supports HDMI CEC, which allows integrated system manual of your display device for further information. control over HDMI and is part of the HDMI standard. Onkyo does not guarantee 100% interoperability with other brands of HDMI CEC compliant devices.

  • Page 9: Function Overview

    FUNCTION OVERVIEW Front Panel 11 12 13* (*) The unit can also be turned on by pressing these buttons. 7. Disc tray 1. I /Q ON/STANDBY button • Place a disc when opening the disc tray. • Press to turn on the unit, or to turn the unit into the 8.

  • Page 10: Remote Control

    FUNCTION OVERVIEW Remote Control • During playback, press twice to return to the previous title, chapter, track or file. • During the JPEG playback, press to return to the previous file. 13. PAUSE F button • Press to pause playback. •...
  • Page 11 • The maximum operable ranges from the unit are as follows. 2) Insert batteries. Infrared sensor window BD-SP807 30˚ 30˚ Make sure to match + and ] on the batteries to the marks indicated in the battery compartment.

  • Page 12: Front Panel Display

    FUNCTION OVERVIEW Front Panel Display * Brightness of the display can be adjusted. Refer to “Panel Display” in “FUNCTION SETUP” on page 47. 1. Displays playback status icon. Refer to the table below. 2. Displays various kinds of information such as title number, elapsed time, repeat mode, etc. Playback Status Icon Mode Disc...

  • Page 13: Connections

    CONNECTIONS Connection to the TV • Make one of the following connections, depending on the capabilities of your existing device. AUDIO CONNECTION VIDEO CONNECTION AUDIO/VIDEO CONNECTION *1, 2 Method 1 Method 2 Method 3 better picture best audio/picture standard picture analogue audio AUDIO IN COMPONENT...
  • Page 14 CONNECTIONS HDMI Output Mode and Actual Output Signals Press [RESOLUTION] to change the resolution of the video signal being output from HDMI OUT jack. The video resolution changes as follows every time [RESOLUTION] is pressed. Front Panel Display HDMI Video Resolution 480 Interlaced Copyright protection system 576 Interlaced...
  • Page 15 CONNECTIONS HDMI Audio Setting When using HDMI connections make “HDMI Audio Out” setting in “Audio” menu according to the specifications of the device to be connected. Refer to page 42. Device to be connected “HDMI Audio Out” setting Output HDMI audio signal Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Device compatible with Dolby Digital, Dolby DTS, or DTS-HD bitstream are output from...

  • Page 16: Connection To An Audio System

    CONNECTIONS • If the connected device is not compatible with the HDMI BITSTREAM, audio will be output as multi LPCM or 2-channel down-mixed LPCM depending on the capability of the connected device even if you select “HDMI Multi(Normal)” in “HDMI Audio Out” setting. Refer to page 42. •...
  • Page 17 CONNECTIONS Note for Digital Audio Optical Cable • Digital audio optical cable may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a diameter of 15cm or more when storing them. • Use a cable which is 3m or shorter. •...
  • Page 18 CONNECTIONS Surround Connections to a Device with 7.1/5.1-channels of Analogue Audio Inputs Analogue 7.1ch/5.1ch audio signals can be output from AUDIO OUTPUT (ANALOG 7.1ch) jacks. audio AV amplifier this unit FRONT CENTER SUB- WOOFER SURROUND SURROUND BACK Supplied cables used in this connection are as follows: •...

  • Page 19: Network Connection With Lan

    CONNECTIONS Network Connection with LAN • You can use a disc which offers BD-Live function by connecting the unit to the Internet. (For BD-Live information, please refer to page 32) Telecommunications equipment (modem, etc.) Hub or broadband router LAN cable LAN cable Internet this unit...

  • Page 20: Information On Playback

    INFORMATION ON PLAYBACK Before you start playing back a disc, read the following information. Playable Discs and Files Note This unit is compatible to play back the following discs / files. • ABOUT DIVX VIDEO: DivX is a digital video format ®...
  • Page 21 INFORMATION ON PLAYBACK Unplayable Discs and Files On-Screen Display The following discs will not be played back in this unit. You can check information about the current disc by pressing [DISPLAY]. • CD-ROM • CD-I (compact disc-interactive) To call the on-screen display menu, press [DISPLAY] •...

  • Page 22: Disc Information

    INFORMATION ON PLAYBACK S Chapter information S HDMI information <Title / Chapter information for BD and AVCHD> Video Info YCbCr 1080i Audio Info 1 / 10 Max Channel 2 ch <Chapter information for DVD> HDMI video format Resolution of the HDMI output image 3 / 5 0 : 01 : 02 HDMI audio format...

  • Page 23: Basic Playback

    BASIC PLAYBACK Playing Back a BD, DVD or a Disc with AVCHD files BD-V DVD-V AVCHD Press [ON/STANDBY I /Q]. Turn on the TV and select the appropriate input on the TV to which the unit is connected. Press [OPEN/CLOSE A] to open the disc tray.

  • Page 24: Operations Using Title Menu, Disc Menu, And Pop-Up Menu

    BASIC PLAYBACK Operations Using Title Menu, Disc Pause Menu, and Pop-up Menu During playback, press [PAUSE F]. • Playback will be paused. BD-V DVD-V AVCHD Many of BD-video and DVD-video disc contains title menu (BD-video / DVD-video / AVCHD), disc menu (DVD-video) or pop-up menu (BD-video) which guides you through the Press [PLAY B] to return to normal playback.

  • Page 25: Playing Back An Audio Cd Or A Mp3, Jpeg And Divx® File

    BASIC PLAYBACK Media icon and file name: Playing Back an audio CD or a MP3, : Folders JPEG and DivX File ® : audio CD tracks DivX JPEG : MP3 files Insert an audio CD or a disc with MP3, JPEG and DivX files.
  • Page 26 BASIC PLAYBACK To Play Back the DivX Subtitle Created by the User ® Note The subtitle created by the user can be displayed during • If DivX files written on a DVD or CD-RW/-R cannot ® DivX playback. ® be played back, rewrite them on a BD-RE/-R and try 1) After selecting the DivX file, use [K / L] to select the ®...

  • Page 27: Reading The Sd Memory Card

    BASIC PLAYBACK • You cannot play back the DivX file that has the ® Note for DivX Subtitle ® resolution which this unit does not support. This unit does not support the DivX files that have the image ® • To utilise this function, the following conditions size that exceeds 1,920 x 1,080 @30fps or 1,280 x 720 must meet.

  • Page 28: Inserting The Sd Memory Card And Playback

    BASIC PLAYBACK Press [ENTER] repeatedly to select Removing the SD Memory Card “SD Card”. In stop mode, push the SD Memory Quick Card and then slowly remove your finger. SD Card Media Select Grasp the card and pull it out from HDMI Audio Out HDMI Multi(Normal) HDMI Video Resolution...

  • Page 29: Special Playback

    SPECIAL PLAYBACK Fast Forward / Fast Reverse Step by Step Playback DivX BD-V DVD-V AVCHD DivX BD-V DVD-V AVCHD During playback, press [FWD D] repeatedly In pause mode, press [PAUSE F] repeatedly. for fast forward. Every time you press [PAUSE F], playback will advance one step at a time.

  • Page 30: A-B Repeat

    SPECIAL PLAYBACK A-B Repeat Programme Playback DivX JPEG BD-V DVD-V AVCHD You can play back the specific part (between point A and You can play back the disc in your desired order. point B) repeatedly. In stop mode, press [MODE]. During playback, press [A-B] at the desired •...

  • Page 31: Random Playback

    SPECIAL PLAYBACK Random Playback Note • During programme playback, press [STOP C] once JPEG to set the resume point, and then press [PLAY B] to resume programme playback from where [STOP C] This function shuffles the playback order of tracks / files. was pressed (audio CD) or from beginning of the file where [STOP C] was pressed (MP3 or JPEG).

  • Page 32: Rapid Playback

    SPECIAL PLAYBACK Rapid Playback Enjoying BD-Live Discs with Internet BD-V DVD-V AVCHD BD-V This function plays back approximately at 1.3 times the You can enjoy the BD-Live functions which enable you to normal playback while keeping the sound output. This use the interactive functions when the unit is connected function is available only on discs recorded in the Dolby the Internet.

  • Page 33: Search

    SEARCH Using [SKIP H / G] Using [the Number buttons] (Direct Search) Title Search During playback, press [SKIP G] to move to the next track. Press it repeatedly to skip to In stop mode, enter the title number you want to subsequent tracks.

  • Page 34: Special Settings

    SPECIAL SETTINGS You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back. Switching Subtitles Switching Audio Soundtrack Some BD and DVD may have subtitles in 1 or more Some BD and DVD contain multiple audio streams.

  • Page 35: Setting The Bd Audio Mode

    SPECIAL SETTINGS Use [K / L] to select a item to be adjusted, then Setting the BD Audio Mode use [s / B] or [ENTER] to adjust the setting. BD-V Brightness Contrast There are 2 ways to set “BD Audio Mode” setting; Noise Reduction whether to output the secondary and interactive audio accompanied by the primary audio or only the primary...

  • Page 36: Function Setup

    FUNCTION SETUP Using the Setup Menu In the setup menu you can change the setting for audio, video, language, etc. You cannot change the setting during playback. Setting items displayed in gray indicates they are not available under the conditions at the time. Quick “Quick”...
  • Page 37 FUNCTION SETUP Custom “Custom” menu contains all the setting items. In stop mode, press [SETUP]. Use [K / L] to select , then press [ENTER]. Use [K / L] to select your desired setting category, then press [ENTER]. : Language : Video : Audio : Parental...
  • Page 38 FUNCTION SETUP Language Language Audio Original Subtitle Disc Menu English Player Menu English DivX Subtitle English • For how to select the setting items and options, refer to “Custom” on page 37. Setting items Options Audio Original* / English / French / German / Spanish / Italian / Dutch / Swedish / Sets the language for audio.
  • Page 39 FUNCTION SETUP Video Video TV Aspect 16:9 Wide HDMI Select YCbCr HDMI RGB Setting Normal HDMI Auto Format HDMI Video Resolution Auto HDMI Deep Color Auto Component Output 480i/576i • For how to select the setting items and options, refer to “Custom” on page 37. Setting items Options TV Aspect...
  • Page 40 FUNCTION SETUP Setting items Options HDMI Deep Color Auto*: Sets whether to output the picture The picture from HDMI OUT jack will be output with Deep Color to the from HDMI OUT jack with Deep Color connected TV which supports HDMI Deep Color. or not.
  • Page 41 FUNCTION SETUP The table below describes the available video resolution when “Progressive Mode” is set to “Auto1” or “Auto2”: Output resolution Media Material resolution 480i/576i 480p/576p 720p 1080i 1080p 1080p24 BD-video 480i /576i AVCHD 480p/576p 720p 1080i 1080p 1080p24 DVD-video 480i/576i DivX 480i /576i...
  • Page 42 FUNCTION SETUP Audio Audio BD Audio Mode HD Audio Output HDMI Audio Out HDMI Multi(Normal) 7.1ch Audio Out Multi Channel Down Sampling Auto • For how to select the setting items and options, refer to “Custom” on page 37. Setting items Options BD Audio Mode HD Audio Output*:...

  • Page 43: Speaker Setting

    FUNCTION SETUP S Digital out setting Digi When “Audio Mute” is selected in “HDMI Audio Out” setting, HDMI audio signal will be muted and the audio signals output from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks change depending on “Digital Out” setting. Quick A HDMI Audio Out A Audio Mute A Digital Out Bitstream*: When playing back discs recorded in Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD, the...
  • Page 44 FUNCTION SETUP How to navigate through “HDMI Multi(LPCM)” and “Multi Channel” setting. Use [K / L] to select your desired menu item then press [ENTER]. Use [K / L] to select your setting items. • Press [RETURN] to go back to the previous screen. Use [s / B] to select desired options.
  • Page 45 FUNCTION SETUP Menu Setting items Options Descriptions Delay Time Distance Feet Set the desired measure system. This measure This is a parameter for system will be used for “Delay Time” setting. Meters* optimising the timing Press [ENTER] (or [s / B]) to switch the at which the sound is settings.
  • Page 46 FUNCTION SETUP Parental Ratings control allows you to set a limit, which prevents your children from viewing inappropriate materials. Playback will be stopped if the ratings exceed the levels you set, and it will require you to enter a password before playing back the disc.
  • Page 47 FUNCTION SETUP Others Others Angle Icon Auto Power Off Panel Display Auto Slide Show 5sec DivX(R) VOD HDMI CEC Media Select Disc • For how to select the setting items and options, refer to “Custom” on page 37. Setting items Options Angle Icon On*:...
  • Page 48 *) Settings with (*) are the default. • HDMI CEC allows integrated system control over HDMI and is part of the HDMI standard. In addition to Onkyo AV components, it allows interoperability with CEC-compatible AV components and TVs made by other manufacturers.

  • Page 49: Network Connection

    FUNCTION SETUP Enable(Easy) Network Connection Network settings are set to the following settings initially. Set up the network connection settings in order to use the (In most cases, you can connect to the Internet without BD-Live function with a BD-Live disc. making any changes to the default settings.) Connection Test - IP Address Setting...
  • Page 50 FUNCTION SETUP If you select “Manual”, follow the following instruction 3-d) After you enter all correctly, press [ENTER]. to set the IP address and DNS. • Confirmation message will appear. Select “Yes” to 3-a) Use [K / L] to select “IP Address”, “Subnet Mask” or complete the settings.
  • Page 51 FUNCTION SETUP 3-a) Use [K / L] to select “Proxy Address”, then press [ENTER]. Proxy address setting screen will appear. Note Enter proxy address. • The range of input number for the port number is • The keyboard screen will appear. between 0 and 65535.

  • Page 52: Software Upgrade

    Press [ENTER] or [RETURN] to exit. After upgrading finishes, this unit will restart and open the disc tray automatically. Note • Please visit www.onkyo.com to download the latest Note firmware version. • Please do not unplug the AC power cord or LAN cable while executing the “Network Upgrade”.
  • Page 53 FUNCTION SETUP Initialize Initialise the setting or SD Memory Card. In stop mode, press [SETUP]. Use [K / L] to select , then press [ENTER]. Use [K / L] to select a desired option, then press [ENTER]. • Confirmation message will appear. “Setup”: Resets the setup menu to the default.

  • Page 54: Troubleshooting

    TROUBLESHOOTING If the unit does not perform properly when operated as instructed in this manual, check the unit, consulting the following checklist. Problem Solution No power - Check if the AC cord is properly connected. - Unplug the AC cord once, and wait for 5-10 seconds and then plug it in again. No sound or picture - Check if the connected TV is turned on.
  • Page 55 TROUBLESHOOTING Problem Solution Angle does not switch - The angle cannot be switched for BD / DVD which do not contain multiple angles. In some cases multiple angles are only recorded for specific scenes. Playback does not start when - Check the settings in “Parental” menu. the title is selected The password for rating level - Enter the default password “4737”, then your forgotten password will be cleared.

  • Page 56: Glossary

    GLOSSARY Analogue Audio DNS Server An electrical signal that directly represents sound. A server which translates Internet domain names into IP Compare this to digital audio which can be an electrical addresses. signal, but is an indirect representation of sound. See also Dolby Digital “Digital Audio”.
  • Page 57 GLOSSARY PCM (Pulse Code Modulation) The most common system of encoding digital audio, found on CD and DAT. Excellent quality, but requires a lot of data compared to formats such as Dolby Digital and MPEG audio. For compatibility with digital audio recorders (CD, MD and DAT) and AV receivers with digital inputs, this unit can convert Dolby Digital and MPEG audio to PCM.

  • Page 58: Language Code

    LANGUAGE CODE Language Code Language Code Language Code Language Code French [FRE] 5264 Macedonian 5957 Siswat 6565 Abkhazian 4748 Frisian 5271 Malagasy 5953 Slovak [SLO] 6557 Afar 4747 Galician 5358 Malay 5965 Slovenian 6558 Afrikaans 4752 Georgian 5747 Malayalam 5958 Somali 6561 Albanian...

  • Page 59: Specifications

    SPECIFICATIONS General Signal system NTSC / PAL Colour Power requirements AC110-240V, 50/60Hz Power consumption 30W (standby: 0.4W) Dimensions (width x height x depth) 435 x 108 x 312mm Weight 5.0kg Operating temperature 5°C to 40°C Operating humidity Less than 80% (no condensation) Audio DVD Linear Audio 4 Hz–44 kHz (96 kHz), 4 Hz–22kHz (48 kHz)
  • Page 60 ONKYO CHINA LIMITED Unit 1&12, 9/F, Ever Gain PlazaTower 1, 88, Container Port Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.ch.onkyo.com/ BD-SP807(B)CUP2P_BD-SP807(S)CUP2P E5LE0ED_E5LE2ED / 1VM332399★★★★★ SN 29400301 (C) Copyright 2009 ONKYO CORPORATION Japan. All rights reserved.
