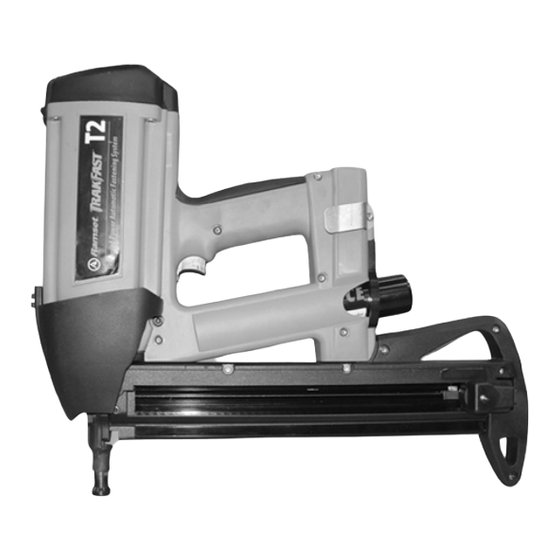

DANGER READ AND OBEY ALL SAFETY AND OPERATING INSTRUCTIONS BEFORE OPERATING TOOL. RAMSET T2 TOOL OPERATOR’S SAFETY & OPERATING INSTRUCTION MANUAL GAS POWERED, LOW VELOCITY PISTON TYPE FASTENING TOOL... -
Page 2: Safety Introduction
50° C (122° F) and out of the sunlight. Keep fuel cells away from flames, sparks and heat. Do not attempt to recharge, refill or recycle fuel cells. Never operate the T2 tool if flammable or explosive materials are nearby. DANGER... -
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY INTRODUCTION CONTENTS SAFETY INSTRUCTIONS FASTENING APPLICATIONS TOOL OPERATING INSTRUCTIONS PARTS SCHEMATIC 10-11 PARTS LIST 12-13 SERVICING/TROUBLESHOOTING WARRANTY TABLE OF CONTENTS... -
Page 4: Safety Instructions
DANGER SAFETY INSTRUCTIONS Preparation For Fastening Acceptable Base Materials The gas powered T2 tool is suitable for use in the following base materials only: • Poured Concrete Solid Concrete and Precast Concrete • Structural Steel • Concrete Block and Horizontal Joints in Brick or Masonry Walls Never attempt to fasten into any other type of material. - Page 5 • When the fuel cell is empty, a small amount of propellant remains inside the cell. Ramset Fuel Cell • For safety and proper tool functioning it is important that only Ramset supplied fuel cells be used in the T2 tool. Batteries • The battery will become discharged even if the tool is not being used.
- Page 6 DANGER SAFETY INSTRUCTIONS Installing the battery Battery is shown in the “no contact” position. Push it fully down to lock it • Insert the battery into the tool in place. as shown on the right with the clip toward the rear. • Note the LED light on the right side of the handle. After installing the battery: - If the light flashes green the tool is powered.
- Page 7 • Never attempt to make a fastening at an angle to the work surface. Floors • While the tool can be used in any The T2 tool may be used in position (floor, wall or ceiling) it is any position. important to have both the nose of the tool and support foot in contact...
-
Page 8: Fastening Applications
FASTENING APPLICATIONS 3" MIN. FASTENING APPLICATIONS Your T2 tool can be used for a wide 3" MIN. range of fastening needs in a variety of base materials. Reading and following these important fastening guidelines will help you get the best results from your... -
Page 9: Tool Operating Instructions
Operating the T2 Tool 1. Insert a charged battery into the tool with the battery clip toward the rear of the tool. 2. Insert the Ramset fuel cell into the tool as described on page 6. Insert fuel cell 3. -
Page 10: Parts Schematic
PARTS SCHEMATIC RAMSET T2 TOOL SCHEMATIC PARTS SCHEMATIC... -
Page 11: Parts Schematic
PARTS SCHEMATIC RAMSET T2 TOOL SCHEMATIC (continued) PARTS SCHEMATIC... -
Page 12: Parts List
PARTS LISTS RAMSET T2 TOOL PARTS LISTS PART NUMBER DESCRIPTION 336920 GRILL CAP 336900 AIR FILTER B0060A CAP SCREWS M5-30 W/WASHER 339000 CAP ASSEMBLY B0070 SPARK PLUG WIRE B0061A PC BOARD SCREWS, M4-12 B0040 PC BOARD 7505164 SPARK PLUG ASSEMBLY... -
Page 13: Parts List
PARTS LIST RAMSET T2 TOOL PARTS LISTS (continued) PART NUMBER DESCRIPTION 334020 BATTERY SUPPORT 337440 RUBBER HANDLE GRIP 333380 KNOB ASSEMBLY 404619 INSULATOR 404490 TRIGGER SWITCH 404385 LIGHT CONDUIT B0134 SPARK UNIT ASSEMBLY, MEFI-R 010422 EFI JUNCTION BOARD 333450 TRIGGER ASSEMBLY... -
Page 14: Servicing/Troubleshooting
SERVICING/TROUBLESHOOTING FOR SERVICING REQUIRED BUT NOT LISTED IN THIS MANUAL, PLEASE CONTACT YOUR LOCAL DISTRIBUTOR Filters and Battery Contacts Cleaning the filters and battery contacts on a regular basis will help make your tool work more efficiently. To clean the filters •... -
Page 15: Warranty
WARRANTY T2 TOOL WARRANTY AND LIMITATIONS Ramset warranty that new T2 power This warranty is void as to any tool fastening tools, parts and accessories which has been subjected to misuse, will be free from defects in material abuse, accidental or intentional damage,... - Page 16 FOR TOOL REPAIR SERVICE CONTACT YOUR LOCAL AUTHORIZED RAMSET DISTRIBUTOR OR TO FIND YOUR NEAREST RAMSET TOOL REPAIR CENTER VISIT OUR WEB SITE AT WWW.RAMSET.COM OR CALL 800-241-5640 Concrete Fastening Systems Glendale Heights, IL 60139 800-RAMSET6 (1-800-726-7386) www.ramset.com Buy with Confidence...
