SECTION 4
CAUTION! Optional unit installation should be done at authorized Icom servise center only.

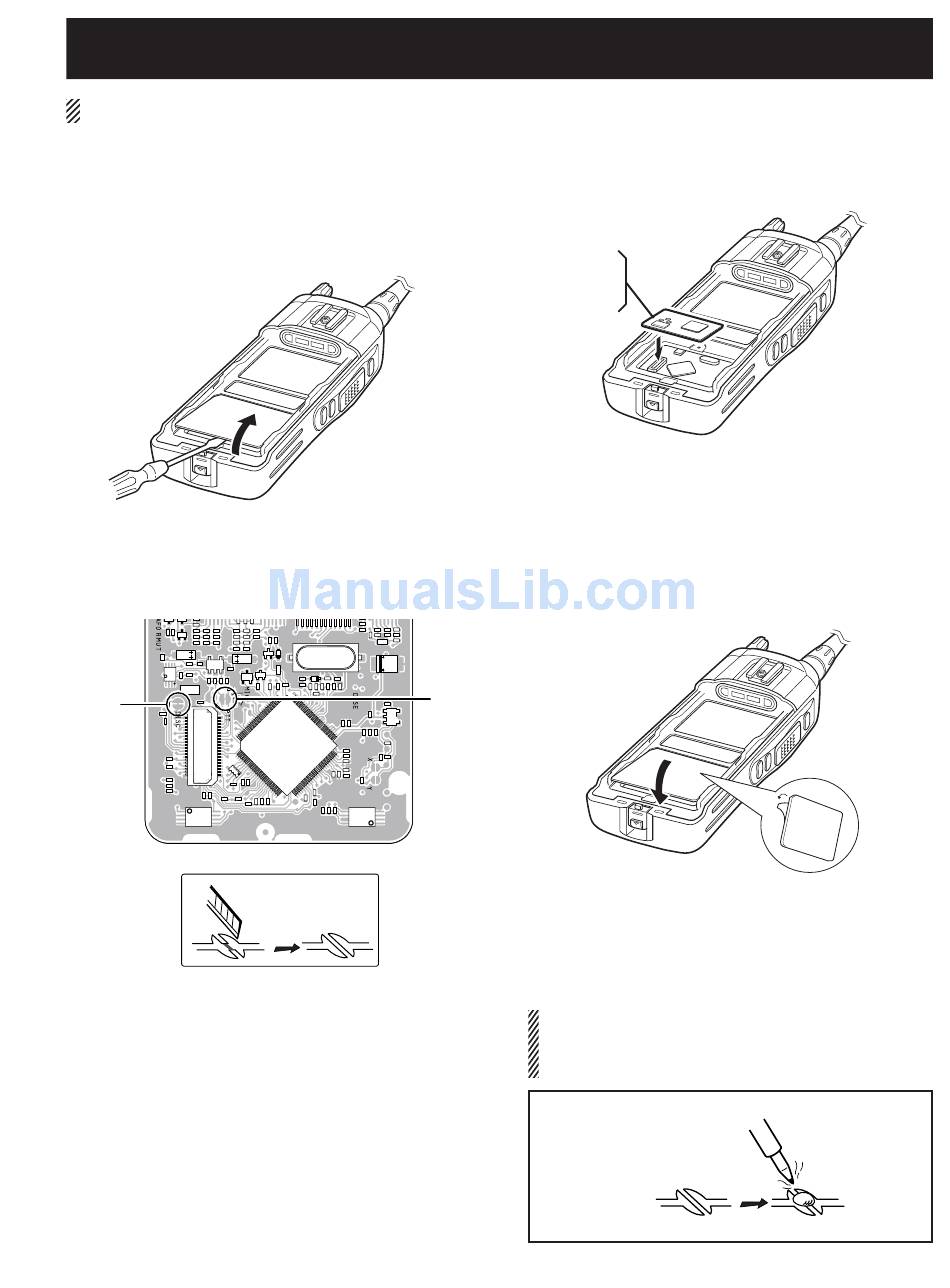

Install the optional unit as follows.
q Rotate [VOL] to turn the power OFF, and remove the
battery pack.
w Remove the unit cover as below. (The removed unit
cover can not be used again.)
e Cut the pattern on the PC board at "MIC" and "DISC"
as below. (This modification is not necessary for
UT-108R installation.)
"DISC"
OPTIONAL UNIT INSTALLATION
"MIC"
r Install the unit as below.
UT-108R
UT-109R
UT-110R
t Remove the paper backing of the supplied unit cover,
and attach the unit cover and the battery pack, then
rotate [VOL] to turn the power ON.
y Set or modify the scrambler or decoder settings using
optional CS-F3020.
NOTE: When uninstalling the unit
Be sure to re-solder the cut points as below when you
remove the unit. Otherwise, no transmit modulation or
receive AF output is available.
Re-solder
4 - 1
