Icom IC-F4021T Service Manual page 16

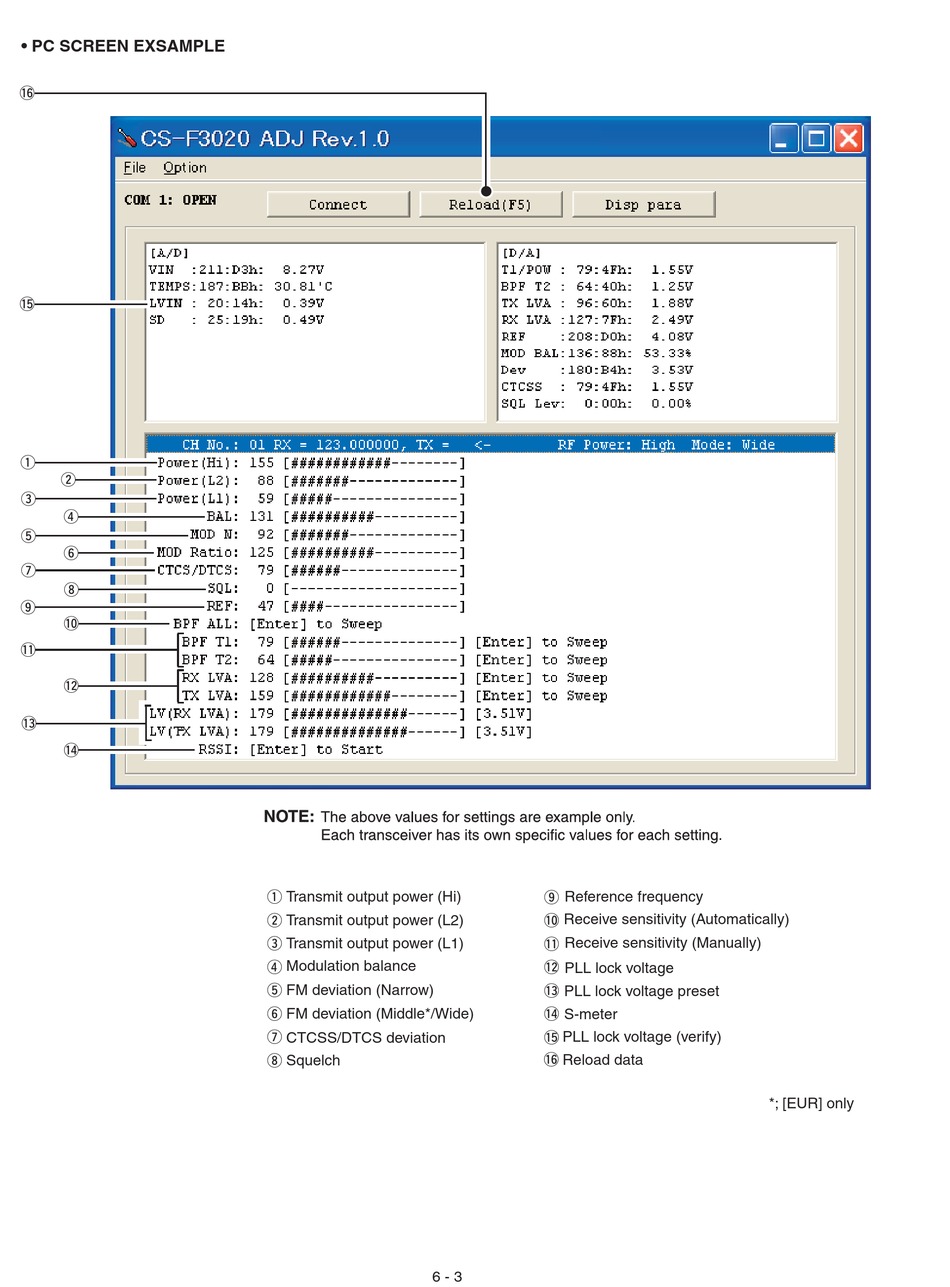

• PC SCREEN EXSAMPLE
!6
!5
Tq
w
e
r
t
y
u
i
o
!0
!1
!2
!3
!4
q
Transmit output power (Hi)
w
Transmit output power (L2)
e
Transmit output power (L1)
r Modulation balance
t
FM deviation (Narrow)
y
FM deviation (Middle*/Wide)
u
CTCSS/DTCS deviation
i
Squelch
6 - 3
o
Reference frequency
!0 Receive sensitivity (Automatically)
!1 Receive sensitivity (Manually)
!2
PLL lock voltage
!3
PLL lock voltage preset
!4
S-meter
!5
PLL lock voltage (verify)
!6
Reload data
*; [EUR] only
