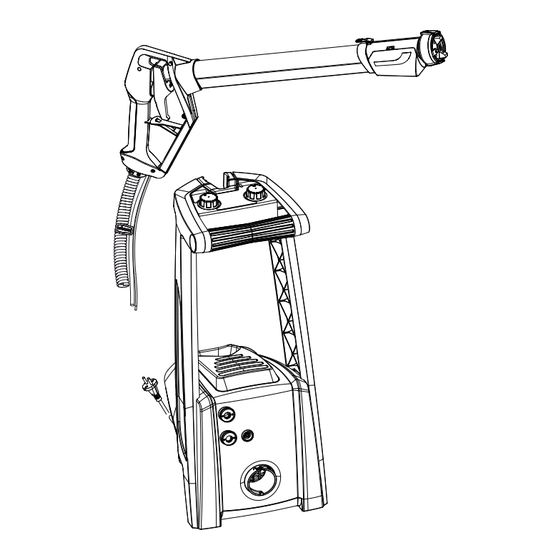

WAGNER WallPerfect Flexio 995 User Manual

Hide thumbs Also See for WallPerfect Flexio 995:
Table of Contents

Advertisement

Quick Links

Originalbetriebsanleitung
2 Jahre
Garantie
2 years
Guarantee
2 ans de
garantie
WallPerfect
2 jaar
Flexio 995
garantie
D/GB/F/NL

Advertisement

Table of Contents
loading

Related Manuals for WAGNER WallPerfect Flexio 995

Summary of Contents for WAGNER WallPerfect Flexio 995

  • Page 1 Originalbetriebsanleitung 2 Jahre Garantie 2 years Guarantee 2 ans de garantie WallPerfect 2 jaar Flexio 995 garantie  D/GB/F/NL...
  • Page 2 WallPerfect Flexio 995 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 31 .

  • Page 3: Table Of Contents

    Translation of the original operating instructions MANY THANKS FOR PLACING YOUR TRUST IN US We would like to congratulate you on purchasing this brand product from Wagner; we are sure that you will enjoy working with it greatly. Please read the Operating Manual carefully and observe the safety information before starting the device.

  • Page 4: Explanation Of Symbols Used

    WallPerfect Flexio 995 WallPerfect Flexio 995 30. Accessories ..............59 31.
  • Page 5 WallPerfect Flexio 995 WallPerfect Flexio 995 b) Never use the tool in hazardous areas that contain flammable liquids, gases or dusts. Power tools generate sparks that can ignite the dust or vapors. c) Keep children and other persons away when using the power tool. You can lose control of the tool if you are distracted.
  • Page 6 WallPerfect Flexio 995 WallPerfect Flexio 995 d) Remove setting tools or wrenches before switching on the power tool. A tool or wrench that is in a rotating tool part can lead to injuries. e) Avoid an unnatural posture. Ensure that you are standing securely and have your balance at all times.

  • Page 7: Safety Instructions For Colour Application Devices

    WallPerfect Flexio 995 WallPerfect Flexio 995 5. Service a) Have your tool repaired only by qualified specialist personnel and only with original spare parts. This ensures that the tool safety is maintained. b) If the supply cord is damaged, it must be replaced by the manufacturer or it’s service agent or a similarly qualified person in order to avoid a safety hazard.

  • Page 8: Scope Of Delivery

    WallPerfect Flexio 995 WallPerfect Flexio 995 • Do not lay the spray gun. With original WAGNER accessories and spare parts, you have the guarantee that all safety regulations are fulfilled. 4. Scope of delivery Scope of delivery (Fig. 1) 1 Basic device, Flexio 995...

  • Page 9: Field Of Application

    5. Field of application With the Flexio 995, interior wall paints can be applied right from the bucket. And that is not all, for the Click&Paint adapter enables all Wagner spray attachments to be used for processing varnish paints and glazes.

  • Page 10: Preparation Of The Coating Material

    Mix the material well in the original container. When using interior wall paint, an agitator is recommended. WallPerfect Flexio 995 has been developed for use with all conventional paints in their undiluted form. If the surface is smooth and the paint you are using is very thick and gel-like, dilute it by 10%.

  • Page 11: Assembling The Spray Lance (Fig. 2)

    WallPerfect Flexio 995 WallPerfect Flexio 995 Assembling the spray lance  (fig. • Take the rolled-up pull wire (fig. 2, 1) out of the grab handle (2) and unwind it. • Put air pipe (3) in grab handle (2). After assembly, the air pipe and grab handle can no longer be separated.

  • Page 12: Connecting The Hoses (Fig.3)

    WallPerfect Flexio 995 WallPerfect Flexio 995 Connecting the hoses  (fig • Insert the control hose (1) into the grab handle (2). • Insert the thin end of the black air hose (3) into the grab handle (2) (watch out for marking) and fix it into position by turning it to the right.

  • Page 13: Multifunction Switch Settings (Fig. 4, A)

    WallPerfect Flexio 995 WallPerfect Flexio 995 4, A) Multifunction switch settings (fig. FILL/  Settings for cleaning and  CLEAN pre-filling the system  System is off  Operating setting Fill/ CLEAN When using the spray attachment for varnish paints...

  • Page 14: Starting Your Work With The Spray Lance

    WallPerfect Flexio 995 WallPerfect Flexio 995 In order to reduce overspray and to improve the sprayed result, the colour on the quantity scale (red or green) should match the colour of the width of the spray jet (red or green).

  • Page 15: Interruption Of Work

    WallPerfect Flexio 995 WallPerfect Flexio 995 The spray jet can pulsate when very liquid materials are being used. However, this does not usually have a negative effect on the results. If the work being performed is of a sophisticated nature (e.g. the borders around plugs) do not pull the trigger through completely.
  • Page 16 WallPerfect Flexio 995 WallPerfect Flexio 995 • Hold the spray lance over the material  container and pull the trigger to pump the remaining paint out of the system into the material container. • Turn the machine off. (Set the multifunction switch to "OFF")
  • Page 17 WallPerfect Flexio 995 WallPerfect Flexio 995 • Loosen the pull wire by the adjustment  screw (fig. 12, 1). Pull the trigger (fig. 12, 2) disengage the pull wire. • Remove the spray head (fig. 12, 3) by pressing the lever (fig. 12, 4).
  • Page 18 WallPerfect Flexio 995 WallPerfect Flexio 995 Reconstruction  • Push the nozzle seal (fig. 14, 6) over the needle (8); the groove (slot) should point towards you. • Insert the nozzle (fig. 14, 5), keeping an eye on the grooves.

  • Page 19: Rectifying Errors When Working With The Spray Lance

    WallPerfect Flexio 995 WallPerfect Flexio 995 19. Rectifying errors when working with the spray lance Problem Cause Remedy • No coating material Nozzle clogged ➞ Clean • emerges from the Material volume setting ➞ Turn to the right nozzle turned too far to the left •...
  • Page 20 WallPerfect Flexio 995 WallPerfect Flexio 995 Problem Cause Remedy • Spray jet pulsates Coating material in ➞ Refill container running out • Nozzle seal worn ➞ Replace • Air filter heavily soiled ➞ Change • Filter clogged at suction ➞ Clean filter hose •...

  • Page 21: Starting Work With The Spray Attachment

    WallPerfect Flexio 995 WallPerfect Flexio 995 The following chapters 20-26 describe working with vinyls and lacquers with the spray attachment. Read chapters 9-19 if you want to use wall paint with the Flexio 995. 20. Starting work with the spray attachment •...

  • Page 22: Setting The Spray Pattern You Require When Working With The Spray Attachment

    WallPerfect Flexio 995 WallPerfect Flexio 995 • Attach the Click&Paint adapter (Fig. 18, 2) with the bayonet coupling to the thinner end of the air hose (1). • Insert the other end of the adapter into the gun handle (3).

  • Page 23: Setting The Flow Rate For The Spray Attachment (Fig. 22)

    WallPerfect Flexio 995 WallPerfect Flexio 995 22. Setting the flow rate for the spray attachment (fig. 22). Set the material volume by turning the regulator on the trigger of the spray gun. lower material volume  turn anti-clockwise higher material volume  turn clockwise (+) 23.

  • Page 24: Interruption Of Work

    WallPerfect Flexio 995 WallPerfect Flexio 995 Interruption of Work • Turn the machine off. (Set the multifunction switch to "OFF") • Put the spray attachment on the floor. • When processing 2-component varnishes, clean the device immediately. • Clean nozzle openings after an interruption in operation.
  • Page 25 WallPerfect Flexio 995 WallPerfect Flexio 995 • Pull the ventilating hose (Fig. 26, 1) at the top from the gun body. Screw off the valve cover (2). Remove the diaphragm (3). Clean all the parts carefully. • Unscrew the union nut (Fig. 27, 1) and remove the air cap (2) and nozzle (3).
  • Page 26 WallPerfect Flexio 995 WallPerfect Flexio 995 • Place the container seal (Fig. 29, 1) from below on the suction tube (2) and slide it over the collar, while turning the container seal slightly. • Insert the suction tube (Fig. 29, 2) with...

  • Page 27: Correction Of Malfunctions

    WallPerfect Flexio 995 WallPerfect Flexio 995 26. Correction of Malfunctions Problem Cause Remedy • No coating material Nozzle clogged ➞ Clean • emerges from the Material volume setting turned ➞ Turn to the right nozzle too far to the left •...

  • Page 28: Maintenance

    WallPerfect Flexio 995 WallPerfect Flexio 995 Problem Cause Remedy • Poor covering Spray material is too cold ➞ The material you are capacity on the wall spraying should be at room temperature • Highly absorbent surface or paint ➞ Cross spray (Fig. 11) with poor covering capacity •...

  • Page 29: Spare Parts

    WallPerfect Flexio 995 WallPerfect Flexio 995 29. Spare Parts The pictures of spare parts can be found on the page that folds out at the end of the operating manual. Spare Parts List: Spray lance (Fig. A1) Pos. Designation Order No.
  • Page 30 For inaccessible places, such as radiators, cupboard corners, recesses etc. 0417 915 WallPerfect I-Spray spray attachment incl. 1800 ml container For processing solvent-based interior wall paint. 2326 477 Further information about the WAGNER range of products for renovating is available under www.wagner-group.com...

  • Page 31: Technical Data

    WallPerfect Flexio 995 WallPerfect Flexio 995 31. Technical Data Technical Data Max. viscosity: Interior wall paint 4000 mPas Power source: 230 V ~ , 50 Hz Power consumption: 630 W Atomizing output: 200 W Max. flow rate: nterior wall paint...
  • Page 32 We expressly reserve the right to fulfil the guarantee. The guarantee expires if the tool is opened up by persons other than WAGNER service personnel. Transport damage, maintenance work and loss and damage due to faulty maintenance work are not covered by the guarantee.

  • Page 33: Ce Declaration Of Conformity

    EN 61000-3-2:2006 + A1:2009 + A2:2009; EN 61000-3-3:2008; EN 62233:2008 i.V. T. Jeltsch i. V. J. Ulbrich Senior Vice President Vice President Engineering Global Product Strategy & Planning Dokumentationsverantwortlicher Responsible person for documents Responsable de la documentation Documentatieverantwoordelijke J. Wagner GmbH Otto-Lilienthal-Str. 18 D-88677 Markdorf...
  • Page 34 WallPerfect Flexio 995 ÜBERSICHT / OVERVIEW / APERÇU GÉNÉRAL / OVERZICHT...
  • Page 35 WallPerfect Flexio 995 Auf der Rückseite dieser Ausklappseite befinden sich die Ersatzteilbilder. Die dazugehörigen Ersatzteillisten finden Sie in Kapitel 29. The pictures of spare parts can be found on the back of this fold-out page. The related spare part lists can be found in chapter 29.
  • Page 36 Hotline 0180 5 59 24 637   +49/ (0) 75 44/ 505-1169  +420 734 792 823  +420 227 077 364 Wagner Spraytech Belgie J. Wagner Spraytech Ibérica S.A. Ctra. N-340, Km 1245,4 Veilinglaan 56-58 08750 Molins de Rei (Barcelona) 1861 Meise-Wolvertem ...
