Martin Professional MAC 2000 Profile User Manual

Hide thumbs Also See for MAC 2000 Profile:
Table of Contents

Advertisement

Quick Links

Download this manual
MAC 2000 Profile
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAC 2000 Profile and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Martin Professional MAC 2000 Profile

Summary of Contents for Martin Professional MAC 2000 Profile

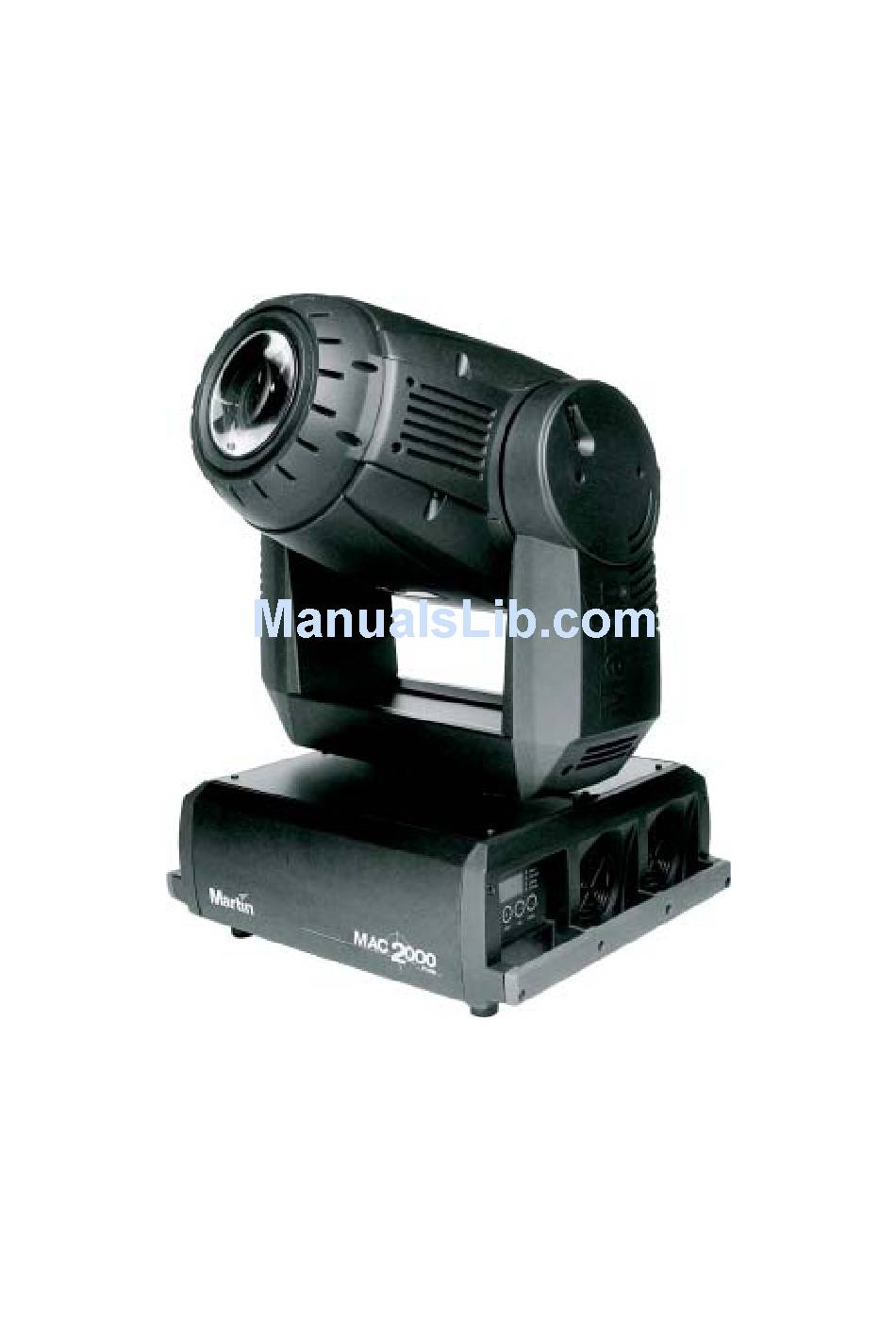

  • Page 1 MAC 2000 Profile user manual...
  • Page 2 270° 270° © 2000 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S, Denmark. Printed in Denmark. P/N 35000090 Rev. H...

  • Page 3: Table Of Contents

    MAC 2000 Profile safety information ........

  • Page 4: Introduction

    NTRODUCTION Thank you for selecting the MAC 2000 Profile. This extraordinary 1200 watt luminaire from Martin Professional provides CMY color mixing, continuous 0 - 178 mireds color correction, a color/gobo wheel with 4 dichroic color filters and 3 fixed glass gobos, 10 indexed-rotation gobos on 2 wheels, a 2-position rotating-effect wheel with 3-facet prism, beam shaper, and variable frost;...

  • Page 5: Transportation

    RANSPORTATION Important! Release the transport locks before operating the fixture. Included items The MAC 2000 Profile is shipped in a 1 or 2 unit flight case that contains the following items. • User manual • 2 clamp attachment brackets Transport locks The head and yoke may be locked for transportation and service.

  • Page 6: Double Flight Case

    2 Pull the test arms all out. Tilt the fixture up and over the slide arms so that the handle cross-braces that are second from the back rest on the arms. The fixture should rest at an angle. 3 Push the transport drawer into the flight case. MAC 2000 Profile...

  • Page 7: Lamp

    About the HMI 1200 W/S lamp The MAC 2000 Profile comes with a double-ended OSRAM HMI 1200 W/S discharge lamp installed. This highly-efficient short-arc source provides an exceptionally stable 6000K color temperature, a color rendering index greater than 90, and an TO P average life of 750 hours.
  • Page 8 15. To align the lamp 1 Switch on the MAC 2000 Profile and allow it to reset. Using either a controller or the control module, turn on the lamp and project an open white beam on a flat surface.

  • Page 9: Ac Power

    Power supply settings for magnetic ballast version In the MAC 2000 Profile with magnetic ballast, both the transformer and the ballast must be tapped correctly for the local AC voltage and frequency. The wrong setting can cause overheating, damage, and poor performance. The factory settings are printed on the serial number label.

  • Page 10: Power Supply Settings For Electronic Ballast Version

    Power supply settings for electronic ballast version In the MAC 2000 Profile with electronic ballast, the transformer must be tapped correctly for the local AC voltage. The electronic ballast automatically adapts to the line voltage and frequency. The wrong transformer setting, though, can cause overheating, damage, and poor performance.

  • Page 11: Data

    Important! Never connect more than 1 data input and 1 data output. The MAC 2000 Profile has both 3-pin and 5-pin XLR sockets for DMX input and output. The pin-out on all sockets is pin 1 to shield, pin 2 to cold (-), and pin 3 to hot (+). There is no connection to pins 4 and 5.

  • Page 12: Rigging

    IGGING The MAC 2000 Profile can be placed on stage or clamped to a truss in any orientation. The Fast-Lock system enables quick and easy fastening of the clamp brackets in 4 positions as shown Figure 11. Figure 11: Clamp bracket positions Warning! Always use 2 clamps to rig the fixture.

  • Page 13: Control Panel

    Navigation The DMX address and any messages (see page 34) are displayed when the MAC 2000 Profile is turned on. To enter the menu, press [Menu]. Press [Up] and [Down] to move within the menu. To select a function or submenu, press [Enter].

  • Page 14: Tailoring Performance

    T R A C K I N G R E S P O N S E The MAC 2000 Profile has a filter algorithm that looks at several position updates in tracking control mode and calculates the ideal response for smooth movement. Tracking response is adjustable to compensate for variations in controller performance.

  • Page 15: Readouts

    Readouts Note: The MP-2 Uploader provides commands to display the time, temperature, and version readouts on the fixture control panel. T I M E IN FO / TI M E H RS L HR L ST provides readouts of fixture hours ( ), lamp hours ( ), and lamp strikes ( ).
  • Page 16 Adjust the offset to focus the image. Press [Enter] to save the setting. S O F T W A R E U P L O A D The software update mode is normally engaged automatically by the upload device. MAC 2000 Profile...

  • Page 17: Optical Configuration

    PTICAL CONFIGURATION Gobos S P E C I F I C A T I O N S All gobo slots including the seven color/gobo wheel positions accept round theatrical size-E glass gobos. Aluminum gobos are suitable for short-term use only. For best results, custom gobos should meet the following criteria. Outside diameter: .
  • Page 18 Access gobos from the bottom of the head. Tilt out and remove the holder. coated side The narrow end is on the inside when the spring is pressed flat. Insert spring with narrow end against gobo. Figure 17: Replacing rotating gobos MAC 2000 Profile...

  • Page 19: Color/Gobo Wheel

    Color/gobo wheel The color/gobo wheel houses four dichroic glass color filters and three static gobos as shown in Figure 16. These are normally installed with the coated side in towards the wheel. To repl ace color filters or go bo s 1 Disconnect the fixture from power and allow it to cool.

  • Page 20: Effects

    FFECTS The MAC 2000 Profile is compatible with USITT DMX512 controllers. The fixture has two DMX operating modes, 8-bit and 16-bit.16-bit mode requires four more DMX channels than 8-bit mode but provides more precise gobo indexing and pan/tilt positioning. All other functions are identical. The complete DMX protocol begins on page 24.

  • Page 21: Effect Wheel

    Effect wheel The effect wheel provides a variable frost filter and two rotating slots that house a beam shaper and a three-facet prism. The position and velocity of the rotating slots are selected on the effect wheel’s Position / Velocity Channel. The effect wheel channel also provides eight preprogrammed effect combinations.

  • Page 22: Routine Maintenance

    OUTINE MAINTENANCE The MAC 2000 Profile requires routine cleaning. The schedule depends heavily on the operating environment; please consult a Martin service technician for recommendations. Refer all service not described here to a qualified Martin technician. Important! Excessive dust, smoke fluid, and particulate buildup degrades performance and causes overheating and damage to the fixture that is not covered by the warranty.

  • Page 23: Software Installation

    R E Q U I R E M E N T S The following are required in order to install software. • The MAC 2000 Profile update file, available for download from the User Support Area of the Martin web site (http://www.martin.dk).

  • Page 24: Dmx Protocol

    Yellow limit for random CMY color At least 0 ! 100% 0 - 127 0 - 50 At most 0 ! 100% 128 - 255 50 -100 Cold ! Warm (0-178 mireds) 0 - 255 0 - 100 Table 5: DMX protocol MAC 2000 Profile...
  • Page 25 DMX channel Start code = 0 8-bit 16-bit Value Percent Function Color/Gobo Wheel Continuous scroll White ! Position 1 0 - 20 0 - 7 Position 1 ! Position 2 20 - 40 7 - 16 Position 2 ! Position 3 40 - 60 16 - 23 Position 3 ! Position 4...
  • Page 26 CW, fast ! slow 128 - 252 50 - 98 253 - 255 99 - 100 No rotation Gobo Wheel 2, Fine Position Fine Position (LSB), Min ! Max 0 - 255 0 - 100 Table 5: DMX protocol MAC 2000 Profile...
  • Page 27 DMX channel Start code = 0 8-bit 16-bit Value Percent Function Effect Wheel Selection and Macros Effect selection Open Variable frost, 0 ! 100% 1 - 175 1 - 68 176 - 183 69 - 72 Effect 1, indexed rotation Set position / velocity 184 - 191 72 - 75...

  • Page 28: Control Menu

    Return all personality settings (not calibrations) to factory defaults F AC T LO AD Load custom configuration d FS E LO Ad C US 1, C US 2, C US 3 Save current configuration SA VE Table 6: Control menu MAC 2000 Profile...
  • Page 29 V ER Decimal value of the DMX start code. The start code must be 0 for ST CO the MAC 2000 Profile to function properly. d MX L DMX value (from 0 - 255) received for each channel. dI M. . E SP...
  • Page 30 CC WM Gobo wheel 1. Clockwise rotation - slow CW S Gobo wheel 1. Counter clockwise rotation - slow CC WS Clockwise rotation of gobo wheel 1. Slow→fast. I /S 1 0- 25 5 Table 6: Control menu MAC 2000 Profile...
  • Page 31 Menu Item Options Notes (Default settings in bold print) Gobo wheel 2. Open position OP EN Gobo wheel 2. Indexed gobos 1→5 g1 I - g5 I Gobo wheel 2. Rotating gobos 1→5 g1 g - g5 R Gobo wheel 2. Indexed gobo shake 1→5 g1 IS - g5 IS Gobo wheel 2.
  • Page 32 Displayed when lamp hours exceed average life (750 hours) R ep la c e la m p S MS G Displayed if head temperature exceeds 120° C (248° F) F ix tu r e ov e rh e at in g Table 6: Control menu MAC 2000 Profile...

  • Page 33: Adjustment Submenu

    DJUSTMENT SUBMENU UT IL / Ad j This menu is located under Menu Item Options Notes Reset fixture RS T Strike lamp L ON Douse lamp Lo FF Turn dimmer to adjustment position (closed mechanical stop) Ad j Open dimmer OP EN d IM Close dimmer...

  • Page 34: Display Messages

    (Color wh. or effect rot. circuit is shorted, or a micro-switch is stuck or assistance. sensor short) connected incorrectly. S7 SC (Yellow or CTC switch short) S8 SC (Cyan or magenta switch short) Table 8: Display messages MAC 2000 Profile...

  • Page 35: Troubleshooting

    ROUBLESHOOTING Problem Probable cause(s) Remedy Check that power is switched on and cables are No power to fixture. plugged in. One or more of the fixtures is Primary fuse blown (located near mains inlet). Disconnect fixture and replace fuse. completely dead. Secondary fuse(s) blown (located on PCB Disconnect fixture.

  • Page 36: Circuit Board Connections

    4 (ROT. GOBO 1) PL804 7 (IRIS) 7 (IRIS) PL501 23 (OPTO 2) 23 (OPTO 2) PL302 PL301 22 (OPTO 1) 22 (OPTO 1) 10 (ROT. GOBO 2) 10 (ROT. GOBO 2) PL805 LD401 LD402 TILT P/N 33120024-B MAC 2000 Profile...

  • Page 37: Specifications

    PECIFICATIONS P H Y S I C A L Length: ............... . . 408 mm (16.0 in) Width: .
  • Page 38 Half-coupler clamp..............P/N 91602005 MAC 2000 Profile...
