ACTi E83 Specifications

D o m e C am e ra
E83
PHOTO INDICATION
1
1 Reset Button
2 MicroSDHC Card Slot
ACCESSORY OPTIONS
Dome Cover
PDCX-1101
w w w . a c t i . c o m
3
2
3 Ethernet Port
4-inch, smoke, vandal proof
* Latest product information: www.acti.com/product/
* Accessory information: www.acti.com/accessory/

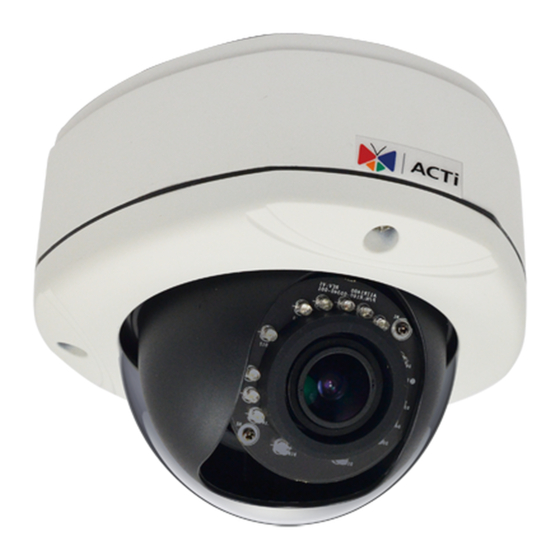

5MP Outdoor Dome with D/N, IR,
Basic WDR, Vari-focal lens
• Progressive Scan CMOS
• Day and night function with mechanical IR cut filter
• Minimum illumination 0 lux with IR LED on
• Built-in f2.8~12mm / F1.4 Megapixel vari-focal lens
• 15 fps at 2592 x 1944 resolution
• Selectable H.264 HP, MJPEG compressions with dual
streaming
• Video motion detection
• Basic WDR
• Vandal proof IK10 rated and weatherproof IP66
ratedcasing
• MicroSDHC card slot for local storage
• Powered by PoE Class 2

DIMENSION DIAGRAM

Popular Mounting Solutions
Surface Accessories not required
Wall PMAX-0308
Pendant PMAX-0101
PMAX-0103
Corner PMAX-0101
PMAX-0303
PMAX-0402
Pole PMAX-0101
PMAX-0303
PMAX-0503
Flush PMAX-1003
* For more mounting solutions, please refer to Project Planner on www.acti.com
Unit: mm [inch]
+
+ +
+ +
130711
