Instruction Manual
USB to SATA Hard Drive Docking Station for
2.5in SATA HDD
SATDOCK25U
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/30/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com SATDOCK25U
Summary of Contents for StarTech.com SATDOCK25U
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/30/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ...................1 Features ................................ 1 Package Contents ............................. 1 System Requirements ..........................1 Installation ....................2 Specifications ..................2 Technical Support ..................3 Warranty Information ................3 Instruction Manual... -
Page 4: Introduction

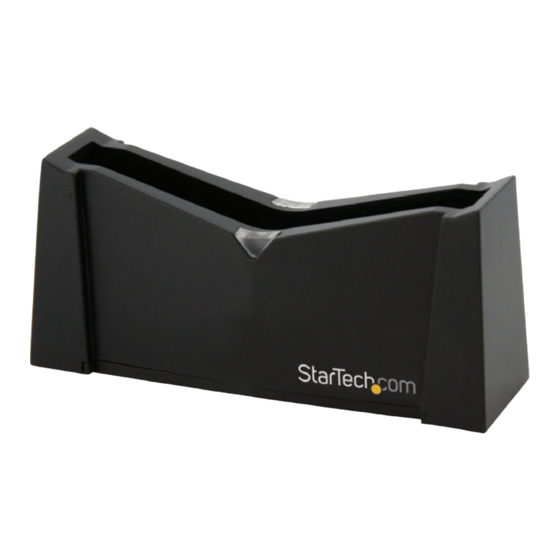

Introduction The StarTech.com SATDOCK25U Hard Drive Docking Station provides full and instant access to any 2.5” SATA (SATA 1.5/3.0Gbps) hard drive or solid state drive, without having to mount the hard drive inside a computer or install it into an enclosure. -
Page 5: Installation
Installation WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Hardware Installation 1. Place the hard drive dock on a flat surface with the drive slot facing upwards. 2. -
Page 6: Driver Installation
4. Connect the USB “Y” cable’s mini-B connector to the hard drive dock. Connect the primary USB connector into the host computer USB port. If the hard drive requires additional power, connect the secondary USB connector into the computer system as well. Driver Installation Secondary connector... -
Page 7: Using The Storage Device
Using the Storage Device Windows 2000/XP/Vista/7 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Disk Management from the left window panel. - Page 8 The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer. If you are installing a hard drive that already has data on it, then after plugging it in, the drive should automatically show up with a drive letter assigned within My Computer.
-
Page 9: Specifications
Specifications Bus Interface USB 2.0 Connectors 1 x USB mini-B LEDs 1 x Power/Activity Chipset ID JMicron JM20329 Maximum Data Transfer Rate USB 2.0: 480Mbps Hard Drive Compatibility 2.5” SATA 1.5/3.0Gbps, 9.5mm height Dimensions 82.0mm x 25.0mm x 36.0mm Weight Compatible Operating Systems Windows 2000/XP/Vista/7 (32/64-bit), Mac OS X, Linux... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
