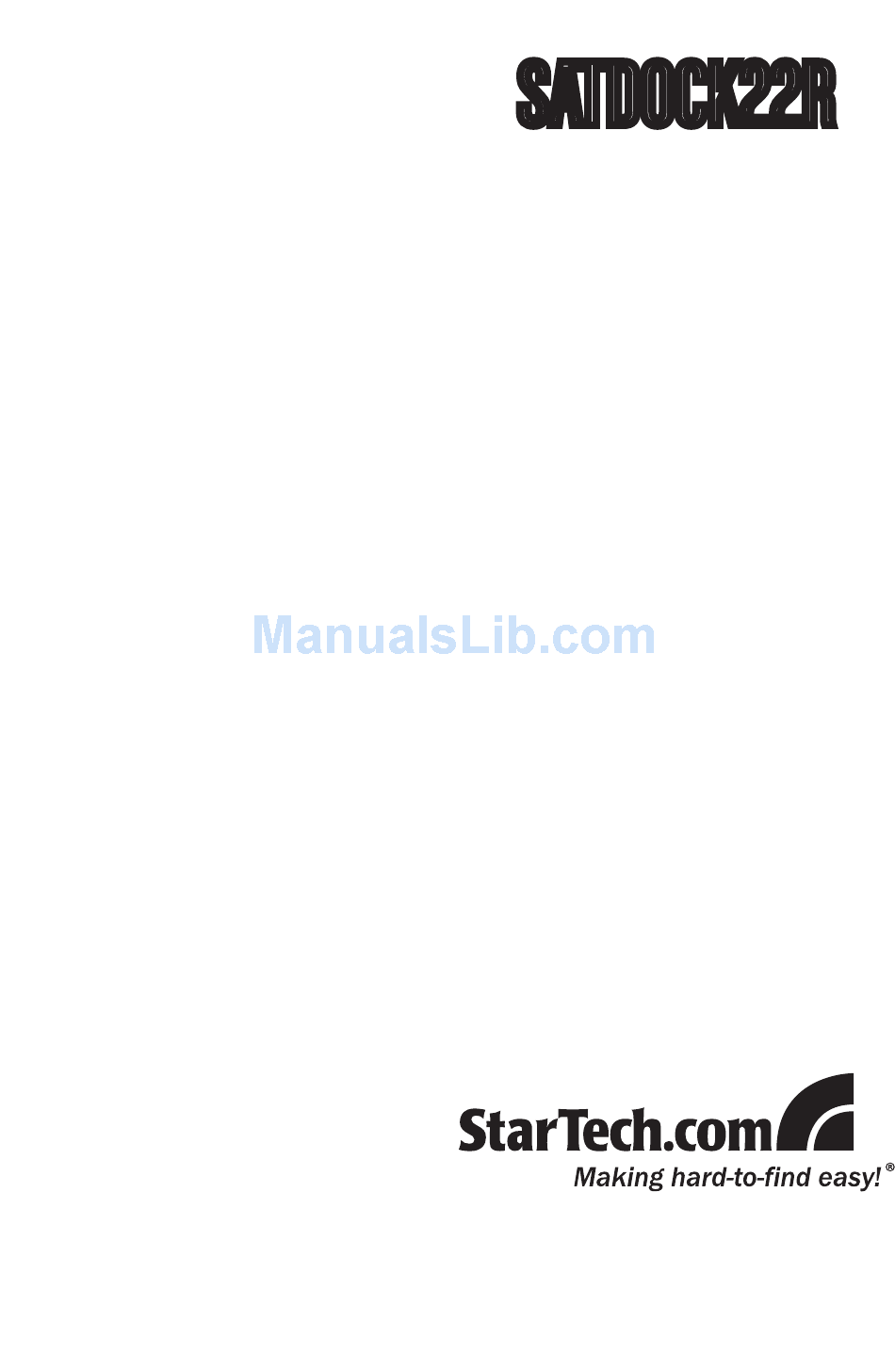

- Page 1 SATDOCK22R Instruction Manual Serial ATA Hard Drive Dock USB to SATA External Dual Hard Drive Dock with Stand Alone Duplicator...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 3 Hardware Installation ..............3 Driver Installation .................3 How to Use ..............4 LED Status ..................4 Buzzer Status ................4 Specifications ..............5 Technical Support ............6 Warranty Information ............6... -
Page 4: Introduction

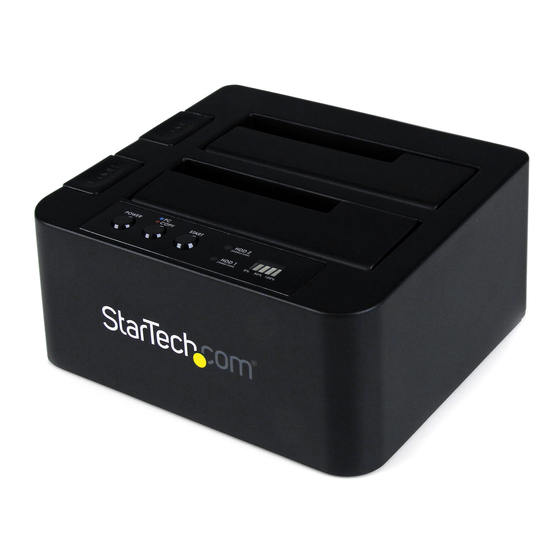

Introduction The SATDOCK22R Dual Drive SATA Hard Drive Duplicator functions as both an external SATA hard drive docking station for 2.5” or 3.5” SATA 1.5/3.0 Gbps hard drives and a convenient standalone hard drive imaging solution, delivering an exact 1 to 1 disk copy. -
Page 5: Installation
Installation Top View Drive Bay (Source) Drive Power/ Drive Activity Ejection Button Drive Bay (Destination) Power Duplicate button/LED Start button Duplicate/JBOD Duplicate Mode button Progress LED Rear View USB type B DIN Power connector connector... -
Page 6: Hardware Installation
Hardware Installation JBOD Mode Connect the external power adapter to the Hard Drive Dock. Install 1 or 2 hard drives into the dock in either drive bay. The Mode button LED should be blue to indicate JBOD mode. Press and hold the Mode button for 3 seconds to switch modes. Connect the USB cable from the hard drive dock to the computer system. -
Page 7: How To Use
How to Use LED Status Name State Description Blue Drive detected Drive Power/Activity No drive detected Flashing Drive activity Hard drive dock is powered off Hard drive dock is powered on Blue JBOD mode Mode Duplicate mode Buzzer Status Mode Status Description Twice per second,... -
Page 8: Specifications
Specifications Bus Interface USB 2.0 1 x USB type B External Connectors 1 x DIN power connector Chipset Acard ARC286 Hard Drive Bays 1 x Power LEDs 1 x Mode 1 x Duplicate progress bar 2.5” and 3.5” SATA 1.5 and Hard Drive Compatibility 3Gb/s up to 1.5TB in capacity Maximum Data Transfer Rate... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
