Instruction Manual

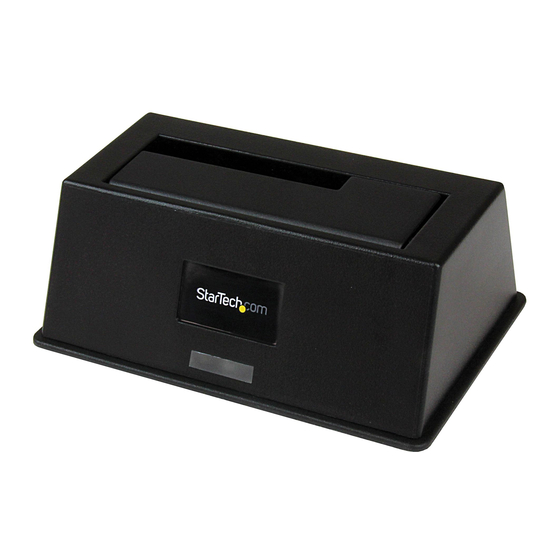

USB 2.0/eSATA to 2.5"/3.5" SATA HDD Dock
SATADOCKU2E
SATDOCKU2EGB
SATDOCKU2EEU
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/28/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SATADOCKU2E
Summary of Contents for StarTech.com SATADOCKU2E
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/28/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ...................1 Features ................................ 1 Package Contents ............................. 1 Disk Installation ..................2 SATA Drive Removal ................2 Preparing the Hard Drives for Use ............3 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction
Introduction This eSATA/USB to SATA External HDD Dock Adapter provides immediate, swappable access to any 2.5in or 3.5in SATA (SATA, SATA II, SATA III) hard drive (HDD) or solid state drive (SSD) - without having to mount the hard drive, or install it in an enclosure! Simply connect this docking station to a computer using either eSATA or USB 2.0, and it’s as simple as inserting your 2.5in or 3.5in SATA hard drive into the dock whenever needed. -
Page 5: Disk Installation
Rear View DC Power eSATA Adapter Port On/Off Switch Port Disk Installation 1. Connect the Dock to an available power outlet, using the provided power adapter. 2. Connect the Dock to the (powered) Host Computer, using the provided USB/eSATA cables. 3. -
Page 6: Preparing The Hard Drives For Use
Preparing the Hard Drives for Use 1. With the hard drives inserted and the dock powered on, right click on the My Computer icon and select Manage. In the left pane of the Computer Management window, click Disk Management. 2. In the bottom right pane of the Computer Management window, you should see your drives listed as unallocated. - Page 7 4. Select the partition type you wish to create by clicking on Primary or Extended, as appropriate. When you have made your selection, click Next to continue. 5. Specify the size of the partition you wish to create. You must select a partition size that is between the maximum and minimum sizes (typically the maximum disk space available).
- Page 8 7. A notification window will appear indicating that you have successfully completed the New Partition Wizard. Click Finish to commence the formatting of the drive. 8. The status of the drive, as shown in the Computer Management window, will be updated to reflect the selections you have made.
-
Page 9: Specifications
10. To access your newly partitioned drive(s), open My Computer. Your drive(s) should be displayed below the heading Hard Disk Drives. Specifications Specification SATADOCKU2E/SATDOCKU2EEU/SATDOCKU2EGB 1 x SATA Power 15-Pin Female Internal Connectors 1 x SATA Data 7-Pin Female 1 x USB B Female... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
