Instruction Manual

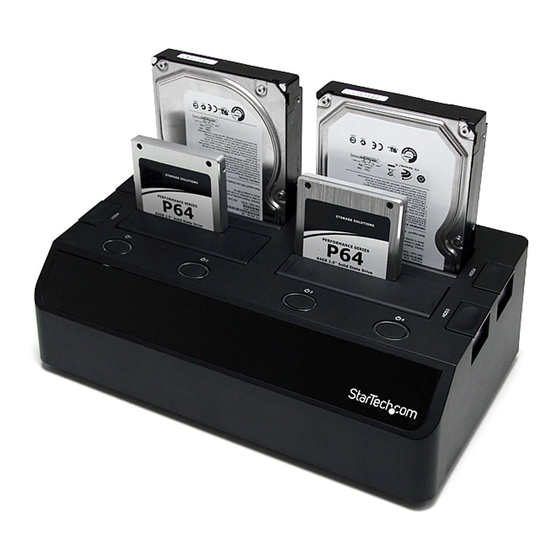

4 Bay eSATA/USB 2.0/3.0 to 2.5in/3.5in
SATA HDD Docking Station
SATDOCK4U2E
SATDOCK4U3E
*SATDOCK4U3E shown
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/25/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com SATDOCK4U2E
Summary of Contents for StarTech.com SATDOCK4U2E
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/25/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 SATDOCK4U2E - Top View ........................2 SATDOCK4U2E - Rear View ........................2 SATDOCK4U3E - Top View ........................3 SATDOCK4U3E - Rear View ........................3 Installation................................4 Hardware Installation ..........................4 Driver Installation ............................4 Using the Storage Device ...........................5 Specifications ..............................7... -
Page 4: Introduction
(HDD) and solid state drives (SSD) allows for up to four drives to be conveniently and quickly accessed from a single device. The SATDOCK4U2E allows four SATA drives to be paired and connected over USB 2.0, with data transfer rates up to 480Mbps, with two USB connections or each drive can be connected individually over a dedicated eSATA connection at up to 3Gbps, allowing for multiple computers to simultaneously interface with a single docking station to access only a specific drive(s). -
Page 5: Satdock4U2E - Top View
SATDOCK4U2E - Top View SATDOCK4U2E - Rear View Instruction Manual... -
Page 6: Satdock4U3E - Top View
SATDOCK4U3E - Top View SATDOCK4U3E - Rear View Instruction Manual... -
Page 7: Installation
SATA docking station. 3. SATDOCK4U2E: Connect the HDD1/2 bays using either a single USB cable (USB1) or separate eSATA cables (eSATA1/2) to a computer(s). Connect the HDD3/4 bays using either a single USB cable (USB2) or separate eSATA cables (eSATA3/4) to the same or different computer(s). -
Page 8: Using The Storage Device
Using the Storage Device Windows 2000/XP/Vista/7 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on “My Computer” (“Computer”... - Page 9 The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer. If you are installing a hard drive that already has data on it, then after plugging it in, the drive should automatically show up with a drive letter assigned within My Computer.
-
Page 10: Specifications
Specifications SATDOCK4U2E SATDOCK4U3E Number of Drives USB 2.0 USB 3.0 Bus Interface SATA revision 2.x SATA revision 2.x Chipset ID Initio INIC1610P JMicron JM321 + JM539 1 x USB 3.0 type B 2 x USB type A female female External Connectors... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
