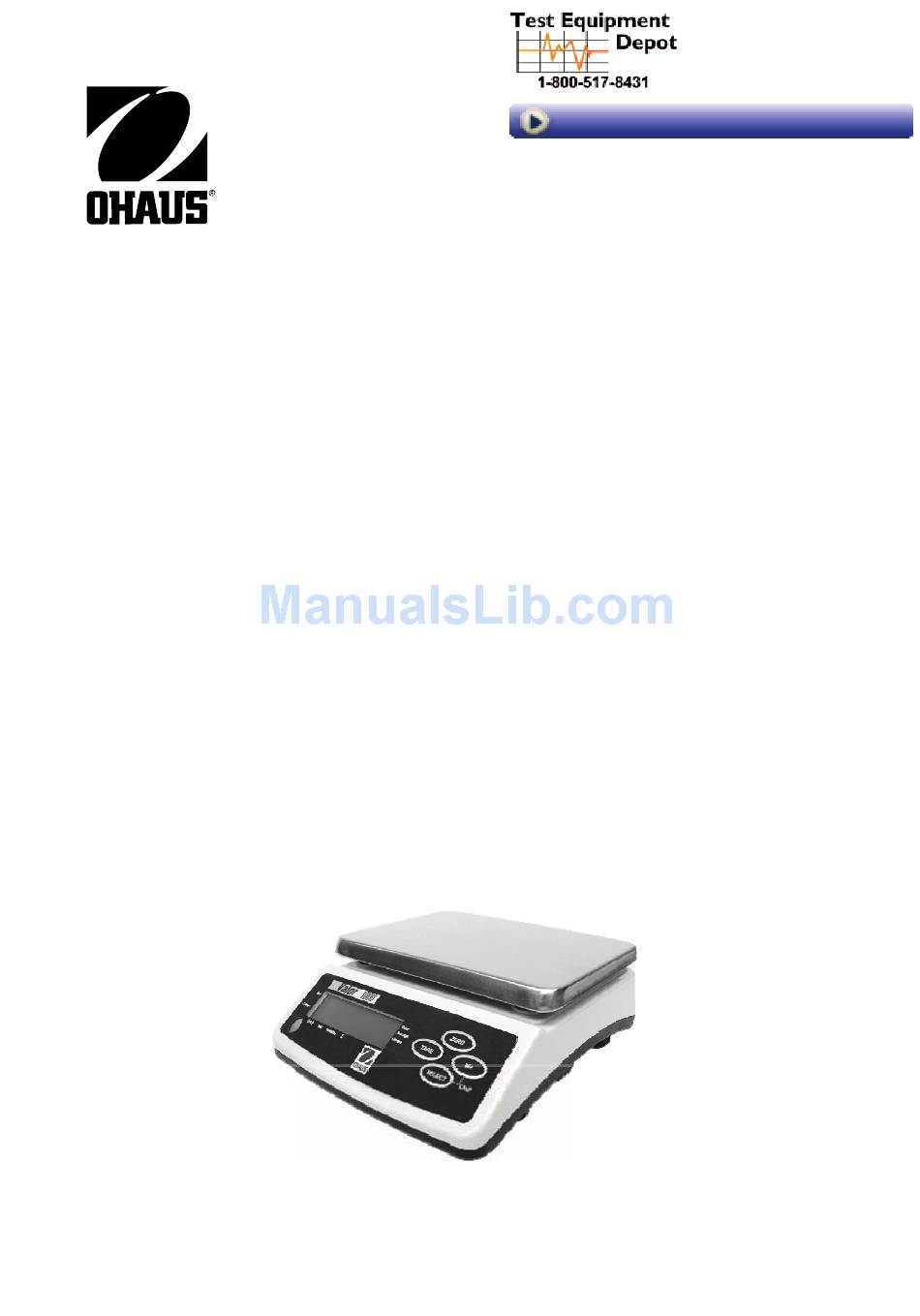

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Valor™ 1000 Series Instruction Manual...
-
Page 3: Safety Precautions
OHAUS Valor 1000 Series EN-1 1. INTRODUCTION This manual contains installation, operation and maintenance instructions for the Ohaus Valor 1000 Series Scales. Please read the manual completely before using the scale. 1.1 Safety Precautions Please follow these safety precautions: • Verify AC Adapter input voltage matches the local AC power supply. - Page 4 EN-2 OHAUS Valor 1000 Series TABLE 1-1. CONTROLS Item Description Low battery indicator Battery charge indicator Level Bubble Center of Zero, NET, Stability Sum icons 7-segment, 6 digit backlit LCD w/ units of measure enunciators Over, Under , Accept Check weigh indicators...
-
Page 5: Installation
OHAUS Valor 1000 Series EN-3 2. INSTALLATION 2.1 Package Contents • Valor 1000 Scale • Stainless steel Pan • AC Power Adapter • Instruction Manual • Warranty Card 2.2 Location Use the scale on a firm, steady surface. Avoid locations with excessive air current, vibrations, heat sources, or rapid temperature changes. -
Page 6: Battery Power
AC power line. NOTE: • Charging the scale must only be performed in a dry environment CAUTION: Battery is to be replaced only by an authorized Ohaus service dealer Risk of explosion can occur if replaced with the wrong type or connected... -
Page 7: Zero Operation
OHAUS Valor 1000 Series EN-5 3. OPERATION 3.1 Turning Scale On/Off To turn the scale on, flip the toggle switch below the right front keyboard. The scale performs a display test, momentarily displays software version, and then enters the active weighing mode. To turn the scale off, toggle same switch to off position. -
Page 8: Accumulate Mode
EN-6 OHAUS Valor 1000 Series 3.5 Accumulate Mode Use this mode to store the weight and HI, LO, SUM statistics from a series of samples. Press ZERO to set the display to zero. Place the sample on the pan, wait for stabilization. - Page 9 OHAUS Valor 1000 Series EN-7 4. SETTINGS The scale allows the user to customize several settings including check weigh limits, backlight operation and calibration. 4.1 Over and Under Limits Press and hold SELECT, and while still pressing SELECT, press ZERO until [SET--HL] is displayed.
- Page 10 EN-8 OHAUS Valor 1000 Series 4.3 CALIBRATION Span Calibration: Turn on the scale. When the display flashes all of the segments ("1~9"), simultaneously press and hold the ZERO and SELECT key. When "999999" is displayed release both buttons. The display reads "CAL ---"...
-
Page 11: Maintenance
5.3 Service Information If the troubleshooting section does not resolve or describe your problem, contact your authorized Ohaus service agent. For service assistance or technical support in the United States call toll-free 1-800-526-0659 between 8.00 AM and 5:00 PM EST. An Ohaus product service specialist will be available to provide assistance. -
Page 12: Technical Data
EN-10 OHAUS Valor 1000 Series 6. TECHNICAL DATA The technical data is valid under the following ambient conditions: Ambient temperature: 0°C to 40°C, Maximum Relative humidity: 80% for temperatures up to 31°1C, decreasing linearity to 50% relative humidity at 40°C. - Page 13 This product conforms to the EMC directive 2004/108/EC and the Low Voltage Directive 2006/95/EC. The complete declaration of Conformity is available from Ohaus Corporation. Disposal In conformance with the European Directive 2002/96 EC on Waste Electrical and Electronic Equipment (WEEE) this device may not be disposed of in domestic waste.
- Page 14 During the warranty period Ohaus will repair, or, at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid, to Ohaus.
