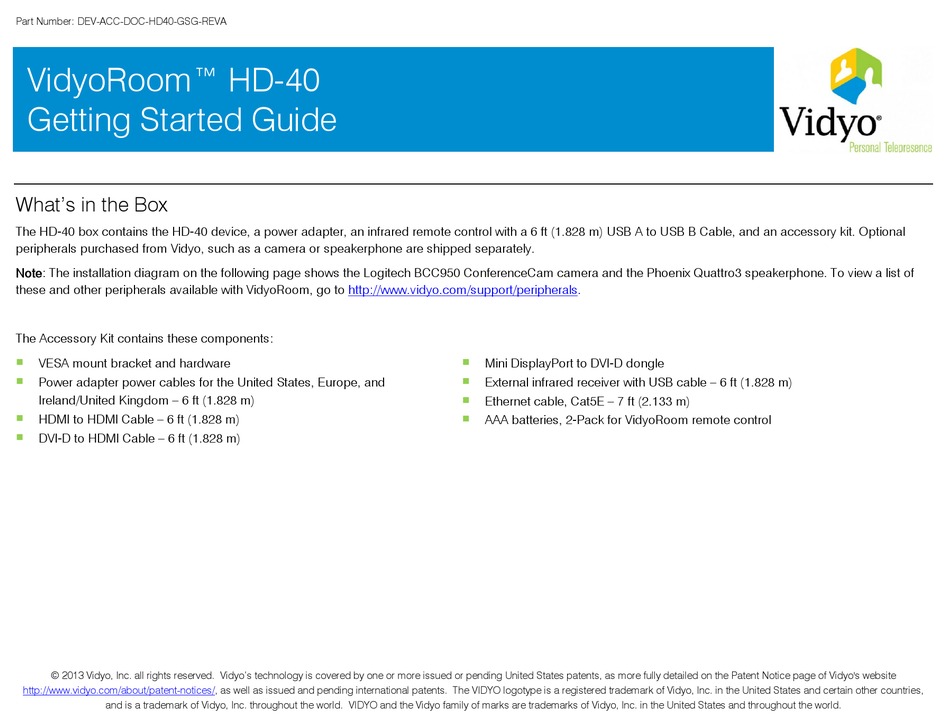

Part Number: DEV-ACC-DOC-HD40-GSG-REVA
VidyoRoom™ HD-40
Getting Started Guide
What's in the Box

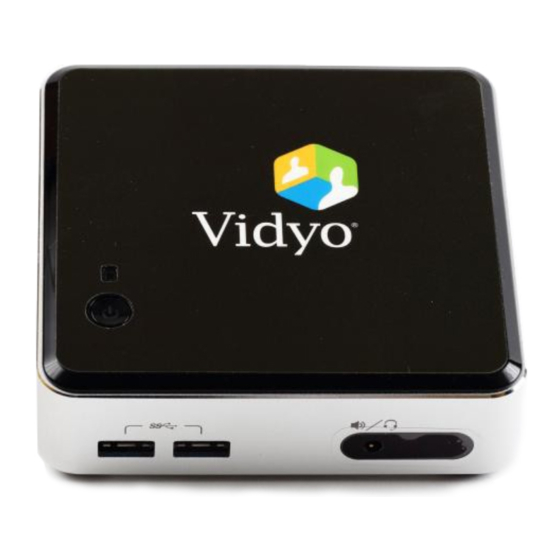

The HD-40 box contains the HD-40 device, a power adapter, an infrared remote control with a 6 ft (1.828 m) USB A to USB B Cable, and an accessory kit. Optional
peripherals purchased from Vidyo, such as a camera or speakerphone are shipped separately.
Note: The installation diagram on the following page shows the Logitech BCC950 ConferenceCam camera and the Phoenix Quattro3 speakerphone. To view a list of
these and other peripherals available with VidyoRoom, go to
The Accessory Kit contains these components:
VESA mount bracket and hardware
Power adapter power cables for the United States, Europe, and
Ireland/United Kingdom – 6 ft (1.828 m)
HDMI to HDMI Cable – 6 ft (1.828 m)
DVI-D to HDMI Cable – 6 ft (1.828 m)
© 2013 Vidyo, Inc. all rights reserved. Vidyo's technology is covered by one or more issued or pending United States patents, as more fully detailed on the Patent Notice page of Vidyo's website
http://www.vidyo.com/about/patent-notices/, as well as issued and pending international patents. The VIDYO logotype is a registered trademark of Vidyo, Inc. in the United States and certain other countries,
and is a trademark of Vidyo, Inc. throughout the world. VIDYO and the Vidyo family of marks are trademarks of Vidyo, Inc. in the United States and throughout the world.
http://www.vidyo.com/support/peripherals.
Mini DisplayPort to DVI-D dongle
External infrared receiver with USB cable – 6 ft (1.828 m)
Ethernet cable, Cat5E – 7 ft (2.133 m)
AAA batteries, 2-Pack for VidyoRoom remote control
