Vidyo VidyoRoom HD-230 Getting Started Manual

Part Number: DEV-ACC-DOC-HD230-GSG-REVD
VidyoRoom™ HD-230
Getting Started Guide
What's Included
Your HD-230 shipped with the HD-230 codec and the following items:

Power cables for the United States, Europe, and
Ireland/United Kingdom – 6 ft (1.82 m)

HDMI to DVI Cable - 6 ft (1.828 m), Qty. 2
Your HD-230 includes a DVI input for video shares. The DVI to USB3 Adapter is required for audio and video shares.

DVI to USB 3.0 adapter – includes 3 ft. (.91 m) USB 3.0 cable
Separate diagrams in this guide show connections for both the Logitech CC3000e and Sony EVI-HD7V cameras with the Phoenix Quattro3 speakerphone. Additional peripherals sold separately. To view a list of
peripherals compatible with VidyoRoom, go to
Logitech CC3000e

Camera, Speakerphone, Remote Control, and Powered Hub

Wall or table camera mount

Speakerphone to hub cable – 16 in (40.6 cm), USB cable
and Remote control

Adhesive (for mounting hub) and Power adapter
© 2015 Vidyo, Inc. all rights reserved. Vidyo's technology is covered by one or more issued or pending United States patents, as more fully detailed on the Patent Notice page of Vidyo's website
http://www.vidyo.com/about/patent-notices/, as well as issued and pending international patents. The VIDYO logotype is a registered trademark of Vidyo, Inc. in the United States and certain other countries,
and is a trademark of Vidyo, Inc. throughout the world. VIDYO and the Vidyo family of marks are trademarks of Vidyo, Inc. in the United States and throughout the world.

DisplayPort to DVI-D adapter

Dual DVI-D to DMS-59 adapter

VISCA to serial cable, EVI control – 6 ft (1.828 m)
For high frame rate shares and projection capabilities
http://www.vidyo.com/support/peripherals.

Camera

Power adapter and power cables for United States, Ireland and
United Kingdom, and Europe – 6 ft (1.82 m)

DVI to DVI Cable – 15 ft (4.57 m)

Remote control

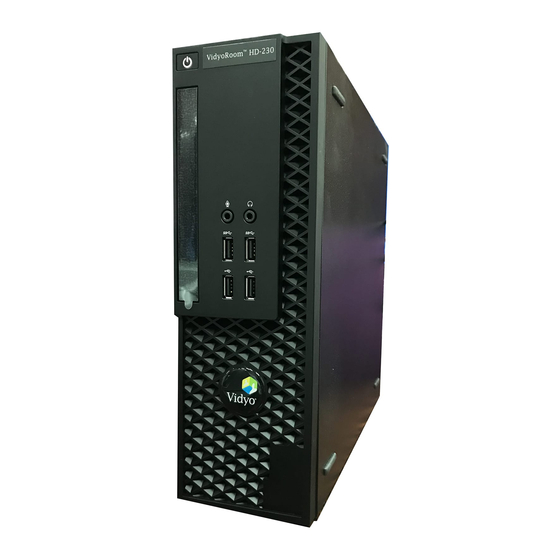

VidyoRoom HD-230
DVI to USB3 Adapter
Part Number: DEV-ACC-RM-DXT-D2U3
Sony EVI-HD7

Ethernet cable, Cat5E – 7 ft (2.13 m)

Infrared remote control with 2 AAA batteries

External infrared receiver with USB cable – 6 ft (1.828 m)
Phoenix Quattro3

Quattro3 unit

USB A to USB Mini B cable

Ethernet Cable
