Vidyo VidyoRoom HD-230 Getting Started Manual

Part Number: DEV-ACC-DOC-HD230-GSG-REVB-DRAFT

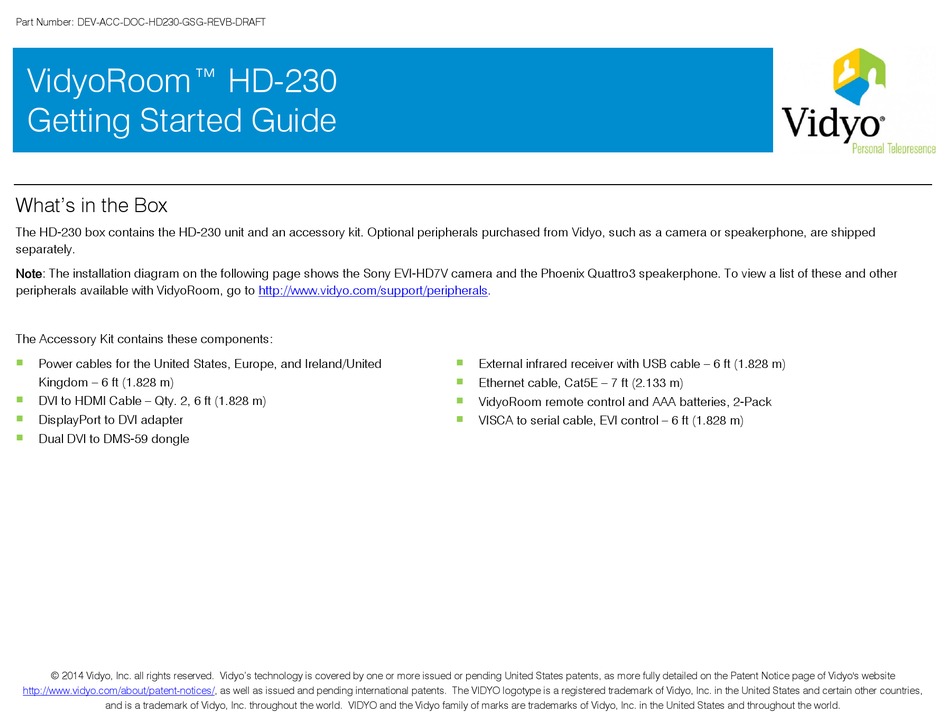

VidyoRoom™ HD-230
Getting Started Guide
What's in the Box

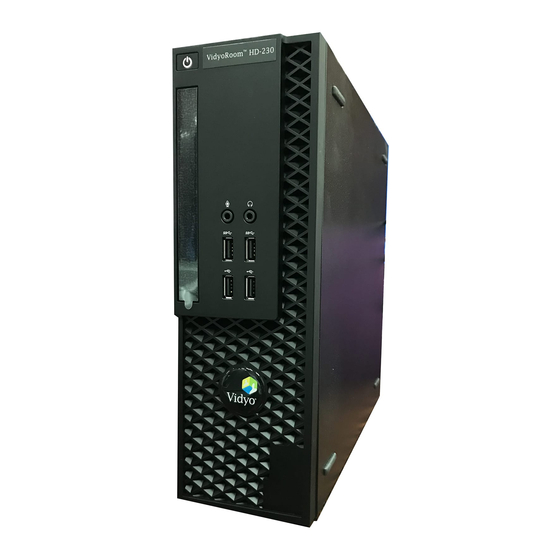

The HD-230 box contains the HD-230 unit and an accessory kit. Optional peripherals purchased from Vidyo, such as a camera or speakerphone, are shipped
separately.
Note: The installation diagram on the following page shows the Sony EVI-HD7V camera and the Phoenix Quattro3 speakerphone. To view a list of these and other
peripherals available with VidyoRoom, go to
The Accessory Kit contains these components:
 Power cables for the United States, Europe, and Ireland/United
Kingdom – 6 ft (1.828 m)
 DVI to HDMI Cable – Qty. 2, 6 ft (1.828 m)
 DisplayPort to DVI adapter
 Dual DVI to DMS-59 dongle
© 2014 Vidyo, Inc. all rights reserved. Vidyo's technology is covered by one or more issued or pending United States patents, as more fully detailed on the Patent Notice page of Vidyo's website
http://www.vidyo.com/about/patent-notices/, as well as issued and pending international patents. The VIDYO logotype is a registered trademark of Vidyo, Inc. in the United States and certain other countries,
and is a trademark of Vidyo, Inc. throughout the world. VIDYO and the Vidyo family of marks are trademarks of Vidyo, Inc. in the United States and throughout the world.
http://www.vidyo.com/support/peripherals.
 External infrared receiver with USB cable – 6 ft (1.828 m)

Ethernet cable, Cat5E – 7 ft (2.133 m)

VidyoRoom remote control and AAA batteries, 2-Pack

VISCA to serial cable, EVI control – 6 ft (1.828 m)
