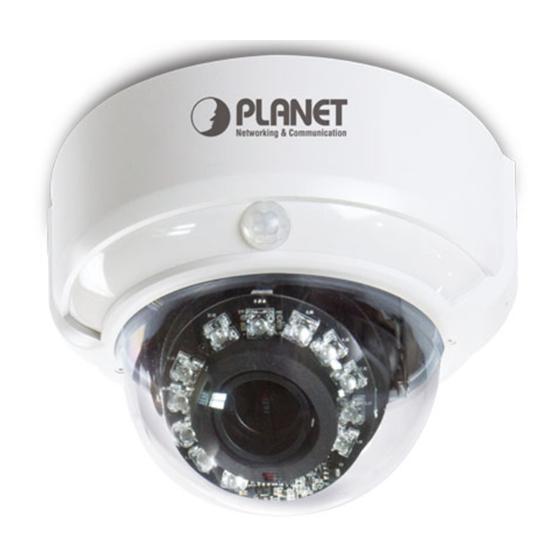

Summary of Contents for Planet ICA-4200V

  • Page 1 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V...
  • Page 2 ICA-4200V Copyright Copyright © 2013 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual for PLANET Full HD 20M IR Vari-Focal Dome IP Camera Model: ICA-4200V Rev: 1.00 (February.2013) Part No. EM-ICA4200V...

  • Page 4: Table Of Contents

    2.3 Initial Utility Installation ................... 20   2.4 Preparation ....................... 22   2.4.1 Search and View by PLANET IP Wizard II........22   2.4.2 Configure Network by PLANET IP Wizard II........24   2.5 Using UPnP of Windows XP or 7 ..............25  ...
  • Page 5 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.6.1 Picture ....................52   3.6.2 Privacy Mask..................55   3.6.3 PTZ Setting ................... 55   3.6.4 Preset Setting ..................56   3.6.5 Tour Setting ................... 57   3.7 System......................58  ...

  • Page 6: Chapter 1. Product Introduction

    To adapt to constantly changing lighting conditions, the ICA-4200V comes with a removable IR-Cut filter and built-in IR illuminators, which enables the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA-4200V is able to maintain clear images 24 hours a day.
  • Page 7 Full HD 20M IR Vari-Focal Dome IP Camera ICA- 4200V Exceptional Image quality Together with powerful image processing attributes like Wide Dynamic Range and 3D Digital Noise Reduction (3DNR) technology, the camera is able to filter the intense backlight surrounding a subject and remove noises from video signal.
  • Page 8 When people pass by or in an emergency situation, the built-in PIR motion detection sensor in the ICA-4200V will “detect” and start recording automatically. It is able to detect movement far from 6 meters away. When motion is detected in the specified areas, the additional function of alarm notification can send an e-mail alert or send captured images via FTP upload to a designated storage server.

  • Page 9: Features

    Flexible Installation and Power Functionality The ICA-4200V incorporates IEEE 802.3af Power over Ethernet standard and able to be powered via the network cable from a PoE power sourcing equipment such as PoE Switch and PoE injector.

  • Page 10: Product Specification

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3GPP for 3G mobile remote applications Micro SD card local video recording supported RS485 interface for P/T scanner control Digital Input/Output for integration with sensors and alarms Cam Viewer 3 Central management software supported 1.4.
  • Page 11 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V RTSP: G.711 64kbps, G.726 32kbps Audio Compression 3GPP: AMR Microphone External microphone input Audio Output Adjustable audio output gain Network and Configuration IEEE 802.3 10Base-T Standard IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T...

  • Page 12: Chapter 2. Hardware Interface

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Chapter 2. Hardware Interface 2.1 Physical Description 2.1.1 Identification of ICA-4200V physical detail Item Description Lens Lens set. Keep this area clean to keep excellent video quality. IR LED Emits infrared light to provide light source in dark places Detects the illumination level or the place where this IP camera is installed, and switches IR LEDs on when it’s required.

  • Page 13: I/O Control Instruction

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 2.1.2 I/O Control Instruction Descriptions for I/O cable set: Interface Description The input power is DC 12V, 1A. Note：ONLY use package power adapter supplied with the internet. DC Power Otherwise, the product may be damaged.
  • Page 14 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 12VDC Brown/White DC 12V (50mA maximum) Blue/White Purple/White RS485 data + Gray RS485 data - Green/White Digital signal input Orange/White Digital signal output...

  • Page 15: Connector Board

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 2.1.3 Connector board Terminal Block Pin12 Factory Pin1  Default Micro SD Reset Card Slot 12VDC in (red) Video out 1  2  Audio in/out (red) Reset & LAN LED DIDO+ RS485 RJ45 6 ...
  • Page 16 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Connect to PC or Hub/Switch. For connect to 10Base-T Ethernet or 100Base-TX or 1000Base-TX Fast Ethernet cabling. This Ethernet port built auto-negotiation protocol can RJ-45 detect or negotiate the transmission speed of the network automatically.

  • Page 17: Hardware Installation

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 2.2 Hardware Installation 2.2.1 Connector board 1. Please select the most suitable position on ceiling to install the camera. 2. Remove two screws to release the top cover of the dome and open it.

  • Page 18: Network Installation

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V NOTE: Use the power adapter, 12VDC, included in the package and connect it to wall outlet for AC power. And connect the other cables and connectors if necessary. 6. When the camera cabling is completed, close the top cover dome housing and secure it by two screws.
  • Page 19 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 4. Attach Speaker to camera (option) If user needs not only video stream but also audio stream, then the speaker should be attached to camera. 5. PoE (Power Over Ethernet) Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure.

  • Page 20: Initial Utility Installation

    NOTE: “Run” and type “D:\Utility\IPWizard II\setup.exe”, assume D is your CD-ROM drive. 3. The “Welcome to the Install Shield Wizard for PLANET IP Wizard II” prompt will display on the screen and click “Next” to continue. 4. Please click “Next” to install with original settings, or you may click “Change…” button to...
  • Page 21 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 5. Please click “Install” to start the installation. Please click “Finish” to complete the installation and launch program immediately.

  • Page 22: Preparation

    When you installed the Internet Camera on a LAN environment, you have two easy ways to search your cameras by PLANET IP Wizard II or UPnP discovery. Here is the way to execute PLANET IP Wizard II to discover camera’s IP address and set up related parameter in a camera.
  • Page 23 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V...

  • Page 24: Configure Network By Planet Ip Wizard Ii

    ICA-4200V View If Planet IP Wizard II finds Internet Camera, View button will be available. Please select the camera you want to view and click the View button. Then you could see the Video from camera directly. Furthermore you could double click the left button of mouse to link to the Internet Camera by browser.

  • Page 25: Using Upnp Of Windows Xp Or 7

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V “<<” perform your setting accordingly. Click button will go back to previous page. If you like to change username and/or password of the device, just click the check button. Then, the related fields will show up as below.
  • Page 26 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V The “Control Panel” will display on the screen and double click “Add or Remove Programs” to continue. The “Add or Remove Programs” will display on the screen and click Add/Remove Widows...
  • Page 27 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V The following screen will appear, select “Networking Services” and click “Details” to continue. The “Networking Services” will display on the screen, select “Universal Plug and Play” and click “OK” to continue.
  • Page 28 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Please click “Next” to continue. The program will start installing the UPnP automatically. You will see the below pop-up screen, please wait while Setup configures the components.
  • Page 29 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Please click “Finish” to complete the UPnP installation Double-click “My Network Places” on the desktop, the “My Network Places” will display on the screen and double-click the UPnP icon with Internet Camera to view your device in an internet...

  • Page 30: Windows 7

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 2.5.2 Windows 7 Go to Start > Control Panel > Network and Internet > Network and Sharing Center, if network discovery is off; click the arrow button to expand the section.

  • Page 31: Setup Activex To Use The Internet Camera

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 2.6 Setup ActiveX to use the Internet Camera The Internet Camera web pages communicate with the Internet Camera using an ActiveX control.

  • Page 32: Internet Explorer 6 For Windows Xp

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V The ActiveX control must be downloaded from the Internet Camera and installed on your PC. Your Internet Explorer security settings must allow for the web page to work correctly. To use the Internet Camera, user must setup his IE browser as follows: 2.6.1 Internet Explorer 6 for Windows XP...

  • Page 33: Internet Explorer 7 For Windows Vista

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V • Allow previously unused ActiveX control to run… • Allows Script lets • Automatic prompting for ActiveX controls By now, you have finished your entire PC configuration for Internet Camera. 2.6.3 Internet Explorer 7 for Windows Vista From your IE browse ”Tools”...
  • Page 34 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V • Enable “Automatic prompting for ActiveX controls” • Prompt “Initialize and script active controls not marked….” By now, you have finished your entire PC configuration for Internet Camera.

  • Page 35: Chapter 3. Web-Based Management

    The Default IP: “http://192.168.0.20“ The login window of Internet Camera will appear, Default login username/password is: admin / admin NOTE: If the User name and Password have been changed with PLANET IP Wizard II, please enter the new User name and Password here.

  • Page 36: Live View

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V After logged on, you should see the following messages at the top of Internet Explorer: Click on the message, and click Run Add-on When you see this message, click Run’ to install required ActiveX control After the ActiveX control was installed and run, the first image will be displayed.
  • Page 37 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Start-up screen will be as follow no matter an ordinary users or an administrator. Video Profile ActiveX Control Streaming Protocol Language Monitor Image Section Setting Menu Client Menu Fisheye Menu Video Information...

  • Page 38: Activex Control

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Setting Menu This function is detail setting for the camera that only available for user logged into camera as administrato Item Action Configure Network settings such as IPv6, ONVIF, Network DHCP, DDNS, 3GPP, PPPoE and UPnP.
  • Page 39 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V The plug-in ActiveX control supports a lot of functions by clicking the left mouse button. ote that this feature only supports on the ActiveX control within Microsoft® Internet xplorer. On the ActiveX contro l icon, click the Left Mouse Button, then a menu pop-up.

  • Page 40: Digital Zoom

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.4.1 Digital Zoom Click Digital Zoom to active this function as above. User can drag or scale the box over the video to adjust zoom ratio and position. 3.4.2 Snapshot Click Snapshot to activate this function. Press Snapshot button to take a picture. The image file is saved as JPEG format into your local PC.

  • Page 41: Volume

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V After stop recording, list the files, this file is named as Video_yyyymmddhhmmss.asf The ASF files can be display by the standard Windows Media Player, but it needs the DixectX 9.0 or later version to be installed.

  • Page 42: Network Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.5 Network Configuration Use this menu to configure the network to connect the device and the clients. 3.5.1 Network This section provides the menu of connecting the device through Ethernet cable.
  • Page 43 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V separated by periods, for example: 192.168.0.200 Subnets allow network traffic between hosts to be separated based on the network's configuration. In IP networking, traffic takes the form of packets. IP subnets advance network security and performance to some level by organizing hosts into logical groups.

  • Page 44: Ipv6

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V NOTE: If you log in the camera as an ordinary user, setting function will be not available. If you log in the camera as the administrator, you can perform all the settings provided within the device.

  • Page 45: Ddns Server

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V To enable or disable the HTTPS service here. Note that the HTTPS HTTPS function of this device is not only encrypted the web content but also audio/video data. Port Choose the HTTPS port. The default value is 443.

  • Page 46: Pppoe

    The user name is used to log into DDNS. Password The password is used to log into DDNS. This model adds Planet easy DDNS that when this function enable will occur hostname with PLANET DDNS and end six of MAC automatically. User don’t go to web of www.planetddns.com apply new account.

  • Page 47: Streaming

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V the PPPoE information first, and then connect to the xDSL modem. Power on again, then the device will dial on to the ISP connect to the WAN through the xDSL modem.

  • Page 48: Upnp

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Choose the RTSP port. The RTSP protocol allows a connecting client to RTSP Port start a video stream. Enter the RTSP port number to use. The default value is 554. Specify the range of transmission port number of video stream. The default RTP Port range is 50000 to 50999.

  • Page 49: Bonjour

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V be detected and a new icon will be added to “My Network Places.” If you do not want to use the UPnP functionality, it can be disabled In addition, this device also provides UPnP IGD function for NAT traversal easily. Use NAT traversal when your device is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router.

  • Page 50: Ip Filter

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Bonjour To enable or disable the Bonjour service here. Friendly Name Shows the friendly name of this device here. 3.5.9 IP Filter You can enter different user’s IP address which are allowing enter or denying by the device.
  • Page 51 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V If enable this function, then the “Send to“ and “Subject” field SMTP Notification (e-mail) need to be filled. Type the receiver’s e-mail address. This address is used for Send To reply mail.

  • Page 52: Camera Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Proxy Port Set port number of Proxy. Proxy Login name Type the user name for the HTTP Proxy. Proxy Login Password Type the password for the HTTP Proxy. Custom parameter User can set specific parameters to HTTP server.
  • Page 53 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Auto: will adjust the white balance automatically. White Balance Hold: will hold the white balance. Auto Exposure: will adjust the internal gain automatically. Hold Exposure: will hold the internal gain. Auto Iris: This Camera is built-in a DC-Iris lens.
  • Page 54 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V brightness value (Exposure Value). This value is dependent to “Auto Exposure” only Color Level Large value will be colorful. Change the value will result to color tuning. Brightness Large value will brighten camera.

  • Page 55: Privacy Mask

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V compensation stronger. Default Settings Restore to factory image settings. 3.6.2 Privacy Mask Use this page to specify privacy mask window 1 to window 8 and set the name and gray level for selected window.

  • Page 56: Preset Setting

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V This device can connect to a PTZ camera or speed dome camera and Camera Protocol controls them thru RS-485 interface. This is the camera ID set in PTZ camera or speed dome camera.

  • Page 57: Tour Setting

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.6.5 Tour Setting Up to 64 positions can be preset, and the camera can be programming to move to the preset position sequentially. The group name of the sequence of camera tour. The maximum number of Tour Name camera tour is 16.

  • Page 58: System

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Running Enable or disable this camera tour. Set the sequence of the tour. Maximum 16 points can be assigned. The Preset selected preset position is added in the Sequence list from 1 to 16.

  • Page 59: Date & Time

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V camera is transferring data. Power LED Switch the LED light of this Internet Camera on or off. User can check the system log information of the device, including the Main Info, Appended Info, Operator IP, and so on …...

  • Page 60: Maintenance

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Select an interval between 1 and 23 hours at which you want to NTP sync. Interval adjust the device’s time referring to NTP server Set the time difference from Greenwich Mean Time in the area Time zone where the device is installed.
  • Page 61 8. A message will be shown while the firmware upgraded. Once the upgrading process completed, the device will reboot the system automatically. 9. Please wait for 80 seconds, and then you can use PLANET IPWizard II to search the device again. Warning!!! The download firmware procedure cannot be interrupted.

  • Page 62: Video

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.8 Video This device provides 2 modes of video profile. The first one is 2Mega mode which supports video resolution up to 2 Mega-pixel. The second one is 2Mega mode which supports video resolution up to 2 Mega-pixel.

  • Page 63: Video Profile

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Upload own image Select your picture to upload Coordinates Select the location of the picture 3.8.3 Video Profile User can modify the detail parameter for each video profiles in this page.
  • Page 64 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Video Type Video codec of the selected profile. Resolution Resolution of the selected profile. Assign the selected profile as a ROI stream or not. (Only available for the profiles with max resolution) Rate Control Defines the rate control method of this profile.

  • Page 65: Roi

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Always Enable Multicast streaming is always enabled or by request Multicast Warning!!! To enable the multicast streaming, you shall make sure your Intranet does support multicast function. Otherwise, your Intranet may fall into network storm seriously.

  • Page 66: Audio Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Add and Del To add or delete the AOI windows. User can specify up to 2 AOI windows to change the video quality in specified areas. By dragging mouse on the image, you can change the position and size of the selected AOI window accordingly Name of the specified AOI window.

  • Page 67: User Privilege Access Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Audio To enable or disable audio function. Audio type To select G711 or G726 for audio coding. Audio Mode: To select Simplex or Full duplex (2-way audio) mode. Input Gain: To adjust gain of input audio.

  • Page 68: Protocol

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Select “Anonymous” to allow any one viewing the video once Viewer Login connected. Otherwise, only users in database can view the video after login. Administrator can access every function in this device.

  • Page 69: Snmp

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V To enable or disable the ONVIF interface here. ONVIF Version Currently, the V1.0 or V1.01/1.02/V2.0/V2.1.1 is available. 3.11.2 SNMP SNMP provides a simple framework for administering networked hardware. To manage the IP camera, you have to prepare a MIB browser or similar tools first.

  • Page 70: Mail Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V from the manager. Trap address The IP address of SNMP traps station. Trap Community means the community that can receive the trap Trap community message. The camera reboots. Available traps Cold start...

  • Page 71: Event Detection

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V SMTP Server Type the SMTP server name or the IP address of the SMTP server. Send a test mail to mail server to check this account is available or Test not.

  • Page 72: Camera Tampering

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V To add or delete the motion windows. User can specify up to 4 Included and /or Excluded windows to monitor the video captured by Add and Delete this device. By dragging mouse on the image, you can change the position and size of the selected motion window accordingly.

  • Page 73: Audio Detection

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V images/files to remote server or email. Minimum duration Define the minimum triggered duration by camera tampering detection. The triggered duration less than target value will be ignored to filter false alarms.

  • Page 74: Storage Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Audio Alarm Level Define the threshold value of audio detection. 3.14 Storage Configuration This page shows the status of attached SD card and Samba server. You may setup related parameters to manage the attached SD card or Samba server also.

  • Page 75: Samba Server

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Status This information of SD card. Delete old recorded files while the conditions are reached as Enable automatic disk cleanup below. Remove recordings order than Delete old files by days. Remove oldest recordings Delete old files by left capacity.

  • Page 76: Recording List

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.16 Recording List This page shows the files list information, files list inside the SD Card. User may reload file from SD card that play or remove the selected file. This page shows the files list information, files list inside the SD Card or Samba server. User may...

  • Page 77: Event Server Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.17 Event Server Configuration 3.17.1 FTP Server You may setup FTP parameters for further operation of Event Schedule. That’s, if users want to send the alarm message to an FTP server, it will need to configure parameters here and also add...

  • Page 78: Tcp Server

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Name User can specify multiple FTP paths as wish. Therefore, user needs to specify a name for each FTP setting. FTP Server Type the server name or the IP address of the FTP server.

  • Page 79: Http Server

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.17.3 HTTP Server The device also can send event message to specified HTTP server. Name User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting.
  • Page 80 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Name User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. SAMBA Server Type the server name or the IP address of the SAMBA server.

  • Page 81: Event Schedule Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.18 Event Schedule Configuration This menu is used to specify the schedule of Events and activate the some actions provided by this device. 3.18.1 Setting Name Name of the Event or Schedule.
  • Page 82 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Example1. Send file to FTP server by motion triggered always: Select event trigger Enable time: start from 00:00 to 24:00 every day Trigger by: Motion Area (Added in Object Detection page)
  • Page 83 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Example2. Send file to E-Mail server by motion triggered from Friday 18:00 to Saturday 06:00 Select event trigger. Enable time: start from Friday 18:00 and keep work in 12 hours, so it will stop on Saturday 06:00.

  • Page 84: Record Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Example3. Enable Voice Alert every 10-minute during 18:00 to 24:00 from Monday to Friday. 1. Type: Select schedule trigger and interval is 10-minute. 2. Enable Time: Select Monday to Friday, and set start time from 18:00 and keep work in 6 hours.

  • Page 85: Port Status

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Record File Type Choose AVI or JPEG file format for record file. Record File Prefix Define the prefix of recorded filename. Pre-Trigger Duration Define the maximum duration of pre-alarm. Best Effort Duration Define the best effort duration of post-alarm.

  • Page 86: Appendix A: Ping Ip Address

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Appendix A: PING IP Address The PING (stands for Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm Internet Camera installed or if the IP address conflicts with any other devices over the network.

  • Page 87: Appendix B: 3Gpp Access

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Appendix B: 3GPP Access To use the 3GPP function, in addition to previous section, you might need more information or configuration to make this function work. That to use the 3GPP function, it strongly recommends to install the Networked Device Note with a public and fixed IP address without any firewall protection.

  • Page 88: Appendix C: Bandwidth And Video Size Estimation

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Appendix C: Bandwidth and Video Size Estimation The frame rate of video transmitted from the Internet Camera depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements for your Internet Camera.

  • Page 89: Appendix D: Ddns Application

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Appendix D: DDNS Application 1. Configure PLANET DDNS steps: Step 1: Enable DDNS option through accessing web page of NAS Step 2. Select on DDNS server provide, and register an account if you do not use yet.

  • Page 90: Appendix E: Configure Port Forwarding Manually

    Manually setup the device with a fixed IP address, for example, 192.168.0.100. 2. Access the Router with Your Web browser The following steps generally apply to any router that you have on your network. The PLANET WNRT-620 is used as an example to clarify the configuration process. Configure the initial settings of the router by following the steps outlined in the router’s Quick Installation Guide.
  • Page 91 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Your WAN IP Address will be listed here. 3. Open/set Virtual Server Ports to enable remote image viewing The firewall security features built into the router and most routers prevent users from accessing the video from the device over the Internet.
  • Page 92 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Enter valid ports in the Virtual Server section of your router. Please make sure to check the box on this line to enable settings. Then the device can be access from WAN by the router’s WAN IP Address.

  • Page 93: Appendix F: Power Line Frequency

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Appendix F: Power Line Frequency COUNTRY VOLTAGE FREQUENCY COMMENTS *Neutral and line wires are reversed from that Argentina 220V 50 Hz used in Australia and elsewhere. *Outlets typically controlled by adjacent switch.

  • Page 94: Appendix G:troubleshooting & Frequently Asked Questions

    5 seconds on the device. 2. Reconfigure the device. Check IP address of device by using the PLANET IP Wizard II Forgot the IP address of the program or by UPnP discovery or set the device to default by Reset device.
  • Page 95 Do not connect device over a router. PLANET IP Wizard II program cannot detect device over a router. If IP address is not assigned to the PC which running PLANET IP Wizard II program, then PLANET IP Wizard II program cannot PLANET IP Wizard II program find device.
  • Page 96 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V is forward to the Internet Camera’s private IP address. The port number assigned in your Internet Camera might not be available via Internet. Check your ISP for available port. The proxy server may prevent you from connecting directly to the Internet Camera, set up not to use the proxy server.
  • Page 97 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V server running on your LAN. Check the configuration of the router settings allow the device to be accessed outside your local LAN. Check the bandwidth of Internet connection. If the Internet bandwidth is lower than target bit rate, the video streaming will not work correctly.
  • Page 98 Windows Media Player 11.0 or later to play the AVI filed recorded by the Device. When stop continuous recording can’t run unmount SD card Cannot unmount SD card immediately. Because of ICA-4200V series need about two immediately after stop continuous minutes to stop recording procedure. Please wait two minutes recording later then run unmount SD card.
