Summary of Contents for Scansonic R3

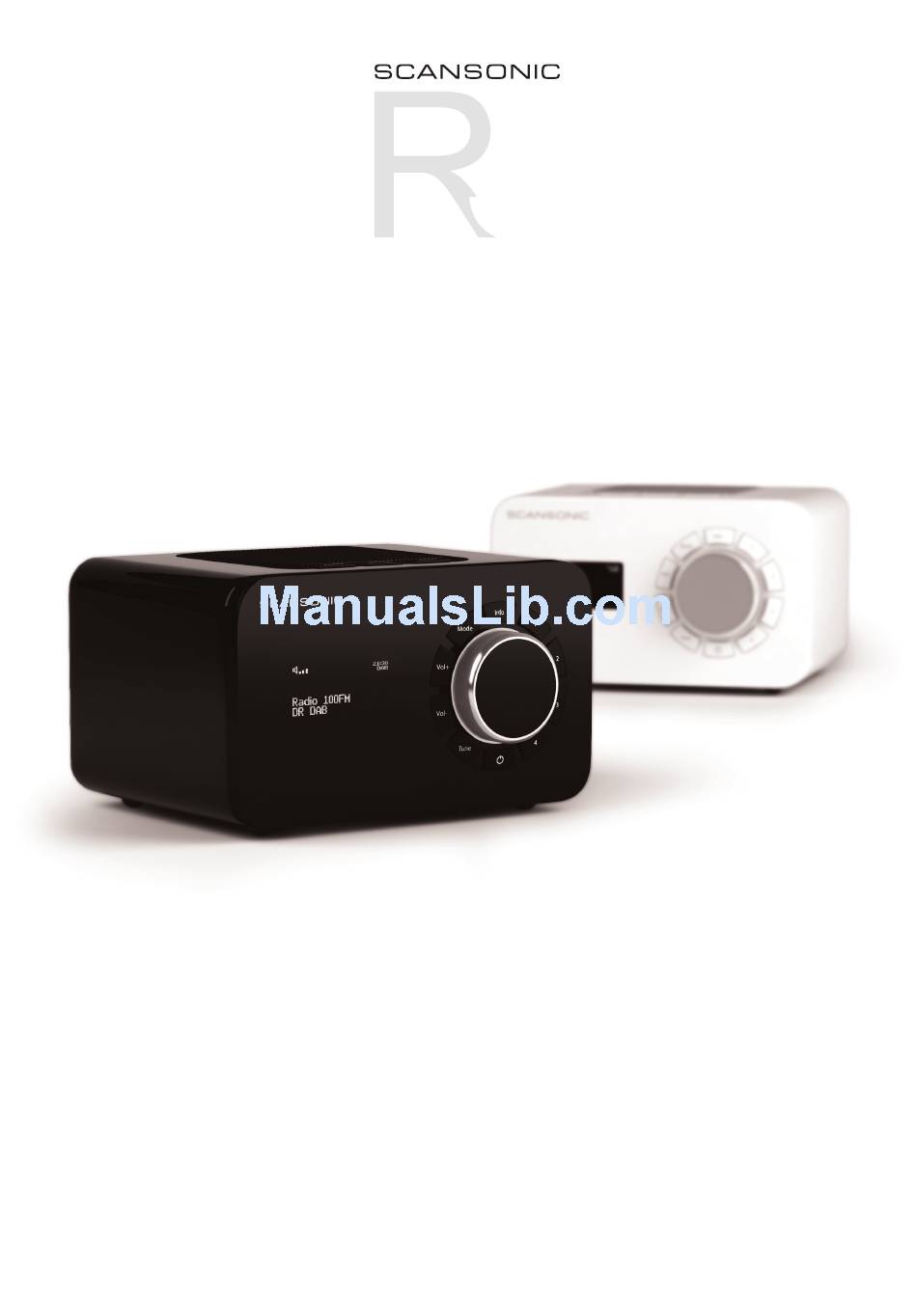

  • Page 1 USER MANUAL...

  • Page 2: Table Of Contents

    C on te n t s CONTENTS INFORMATION FRONT PANEL OVERVIEW REAR PANEL OVERVIEW CONNECTING YOUR RADIO OPERATING YOUR RADIO - DAB SELECTING A STATION - DAB INFORMATION SERVICES - DAB OPERATING YOUR RADIO - FM DISPLAY MODES - FM AUX MODE, CONNECT YOUR IPOD MUTE AND SNOOZE FUNCTION SETTING THE ALARM...

  • Page 3: Information

    Unplug the radio before cleaning it. Disclaimer Despite our best efforts we cannot guarantee that the technical data indicated are correct, complete and updated. We, Scansonic, reserve the right to make technical changes without notice.
  • Page 4 F ro n t p a n el 05 06 R ea r p a n e l 18 19...
  • Page 5 Connect a separate stereoheadset to this input to listen to the radio with headset. Inserting a headset will turn off the main speaker 12v DC Use this input to the Scansonic R3 DC power supply Antenna The radio comes with a telescope antenna. To improve FM reception, adjust the antenna for best reception.

  • Page 6: Connecting Your Radio

    C o n n e ct i n g y our r adi o Your radio is supplied with a Mains Adapter. Place your radio on a flat surface Insert the adapter plug into the DC socket on the back of your radio Plug the adapter into the 230 volts mains socket outlet Important: The AC adapter should be disconnected from the mains supply and the radio when not in use.

  • Page 7: Selecting A Station - Dab

    S el e c ti n g a s tati on - D AB The display show the name of the station selected. Turn the ROTARY KNOB to scroll the station list and find next station. Press ROTARY KNOB to select the desired station. I nf o r m a ti o n s er vi c es - D AB Your radio has seven different modes which can be selected by pressing the INFO button.

  • Page 8: Operating Your Radio - Fm

    O pe r a t i n g y our r adi o - F M Carefully extend the telescopic antenna. Press ON/OFF to power on the radio (note that the radio automatically starts in DAB mode). Press MODE button to select FM mode. Press AUTO button briefly to automatically scan upwards.

  • Page 9: Aux Mode, Connect Your Ipod

    A UX m o d e , c onnec t y our iPod The radio has an auxiliary stereo input. This input can be used to connect an external source such as iPod, iPhone, MP-3 player and many others by using the enclosed 3,5mm minijack cable. For connecting iPod, iPhone or MP-3 player connect the players output for headphones to this radios AUX input with the enclosed 3,5mm minijack cable.

  • Page 10: Sleep Timer

    S le e p t i me r The radio has a sleep timer function that allows your radio to shut off automatically after a selected number of minutes. Press SLEEP button to check status of sleep function. Press SLEEP button for 2 seconds to start sleep setting. ON/OFF is now flashing –...

  • Page 11: Specifications

    S p e c i f i c a t i ons Band DAB, DAB+ & FM Output power 7 watts rms Loudspeaker 3½” full range Antenna FM and DAB telescopic, removeable Power DC 12volts Inputs DC 12 volts (for net adapter) AUX in –...
  • Page 12 en j oy w w w.s c a n s o ni c . dk...
