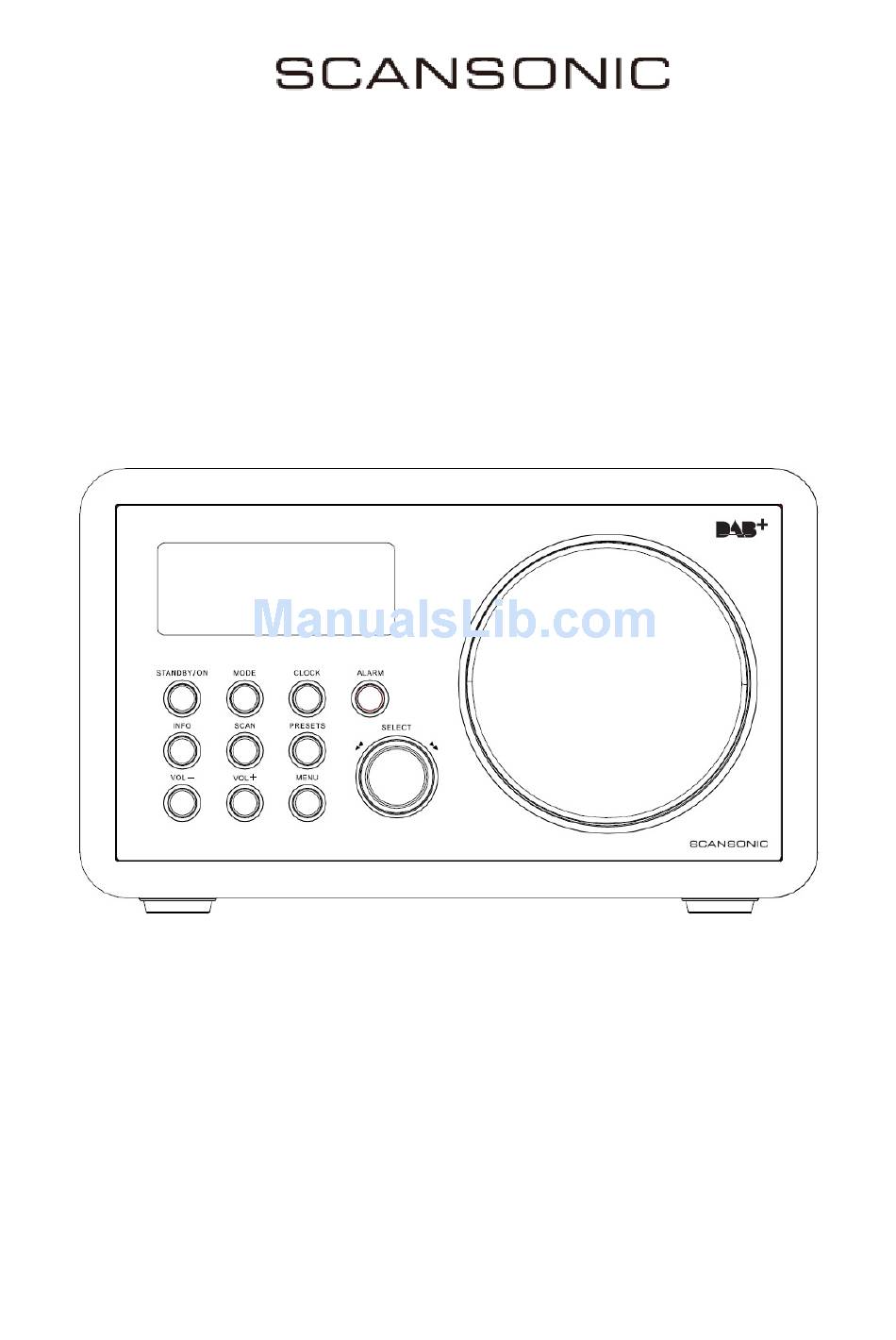

- Page 1 DAB200 D A B / D A B / D A B / D A B / D A B D A B D A B D A B + , D i g i t a l D i g i t a l...
-
Page 2: Safety Precautions
Safety Precautions To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate the unit, this will assure you years of faithful, trouble free performance and listening pleasure. Important Notes This safety and operating instruction should be retained for future reference. -
Page 3: Safety Information
Safety Information Some Do’s and Don’ts on the safe use of equipment This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. -
Page 4: Table Of Contents
Table of Contents Safety Precautions ____________________________________________________ 2 Table of Contents _____________________________________________________ 4 Package Content _____________________________________________________ 5 Front Overview __________________________________________________________ 6 Back Overview ___________________________________________________________ 7 DAB+, DAB MODE _____________________________________________________ 8 Turn on _________________________________________________________________ 8 Shift to another DAB/DAB+ Station __________________________________________ 8 Update Stations List ______________________________________________________ 8 To Show the Signal Strength ________________________________________________ 8 DAB+ Menu Tree _________________________________________________________ 9... -
Page 5: Package Content
Package Content Main Unit Adapter Instruction booklet... -
Page 6: Front Overview
Front Overview Control mode STANDBY/ON Press to power on/off When alarm is coming, press to turn alarm off MODE Press to shift to another mode CLOCK Press to set clock ALARM Press to set alarm INFO DAB/DAB+ and FM mode: Press to browse the queue information of currently playing station DAB/DAB+ and FM mode: S C A N... -
Page 7: Back Overview
Back Overview A 3.5mm Headphone Socket is available for either headphones or an Headphone earpiece. socket: Once a plug inserted, the internal loudspeaker will be mute automatically. AUX IN It’s for connection of external audio device. socket: Power cord Please use the power adaptor provided by manufacturer only. Socket: a. -
Page 8: Dab/Dab+ Mode
DAB/DAB+ MODE Turn on 1. Extend the antenna found on the back of radio, press STANDBY/ON to switch on radio. 2. For initial use, radio will make a full scan and store detected stations into its memory. 3. Once the scanning is completed, the DAB/DAB+ stations will be displayed in alphanumeric order and radio will access the first station in the list. -
Page 9: Dab+ Menu Tree
DAB+ Menu Tree DRC (Dynamic Range Control) value You can set the compression level of stations to eliminate the differences with dynamic range or sound level between radio stations. Note: Set DRC to off indicates no compression, set DRC to low indicates little compression, set DRC to high shows maximum compression. -
Page 10: The Way To Prune
The way to Prune Note: want to remove all inactive stations? it’s easy! 1. Press MENU turn the scroll knob to < Prune >, press this knob to confirm. 2. Turn the scroll knob to ‘Yes’, press this knob to confirm. View Station Information It is possible to view the information that is displayed on the second line of the display when listening to a DAB/DAB+ or FM program by pressing INFO repeatedly. -
Page 11: Audio Settings
Audio Settings By default, all stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, 2 steps: 1. Press MENU turn the scroll knob to ‘Audio setting’, press this knob to confirm. 2. -
Page 12: Station Presets (Dab/Dab+ And Fm Mode)
Station Presets (DAB/DAB+ and FM mode) Note: the way of ‘Station preset’ and ‘Preset Recall’ applies to both DAB/DAB+ and FM mode. 1. While playing your favourite station, press and hold PRESETS button and then turn the scroll knob to your target preset no. 1-10. 2. -
Page 13: System Setup
System setup The Way to Enter System Setup 1. Press MENU Turn the scroll knob to < System >, Press this knob to confirm. 2. Turn the scroll knob to cycle through the System Menu options: ‘Sleep’, ‘Alarm’, ‘Time’, ‘Equaliser’, ‘Backlight’, ‘Language’, ‘Factory Reset’ and ‘SW Version’. Set Sleep Note: your radio is smart;... -
Page 14: Set Alarm
Set Alarm Note: Setting Alarm, make sure Clock time is set at first. 1. Press ALARM, it will invite you “Alarm 1 Setup”, press ALARM again to access to “Alarm 2 Setup”, meanwhile, relevant alarm icon will be twinkling. 2. Take set alarm 1 as an example, while it shows: “Alarm 1 Setup”, press the scroll knob to confirm. -
Page 15: Set Equaliser
Set Equaliser Note: Equaliser is a user-defined setting through Bass and Treble adjustment: Treble : +5 to -5. Bass : +5 to -5. 1. It can be activated from < System > < Equaliser >. Press the scroll knob to confirm. 2. -
Page 16: Specification
Specification ITEMS SPECIFICATIONS Description: DAB/DAB+, FM Digital radio Audio Output: 4Wrms FM: 87.5-108MHz Frequency Ranges: DAB/DAB+: 174 – 240MHz LCD Display: High resolution display AC Power Input: 100-240VAC, 50-60Hz Power Supply: (please use our provided adapter) Dimension: 212mm x 111mm x 123mm This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste.
