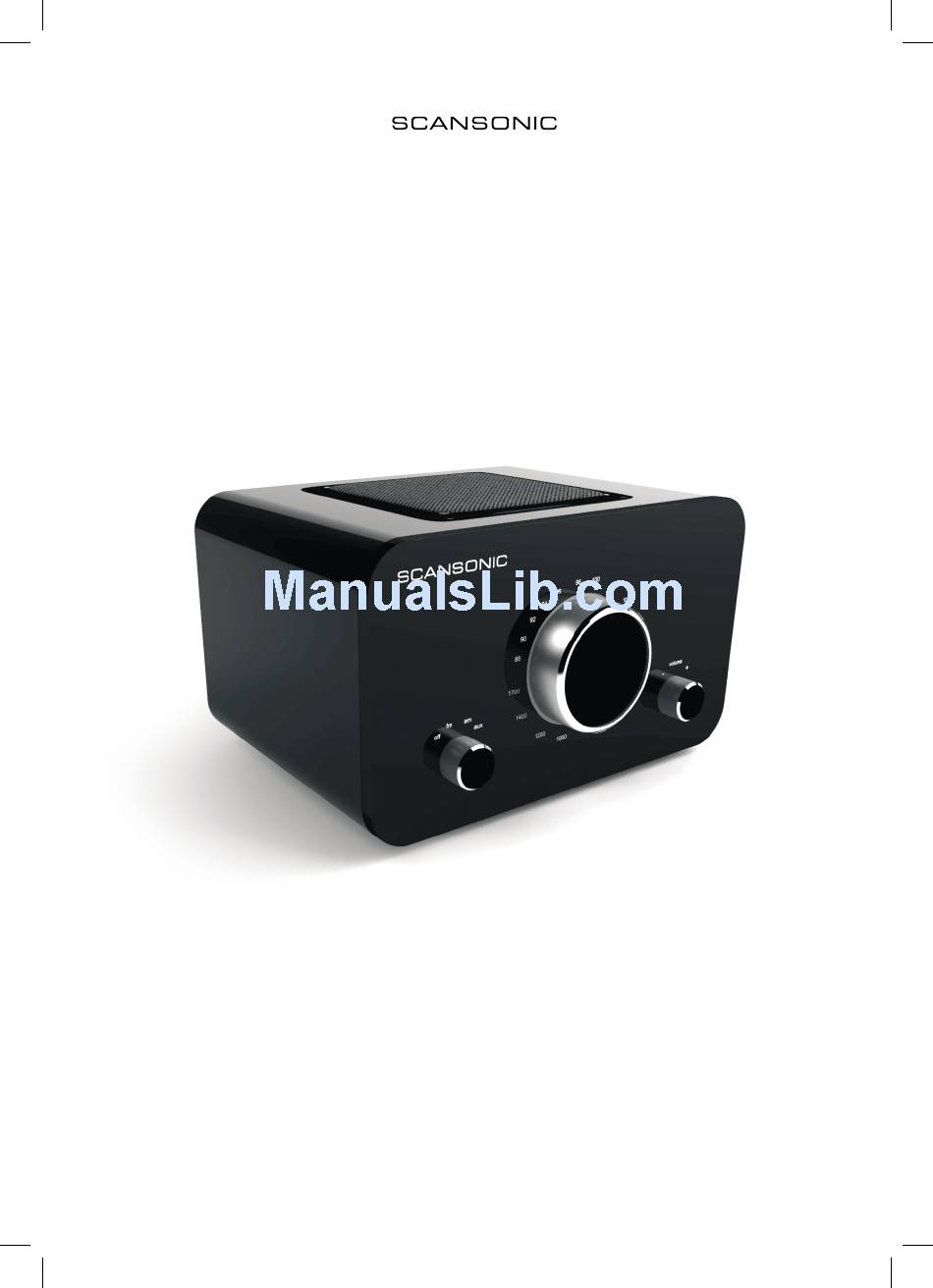

- Page 1 USER MANUAL MODE D’EMPLOI BEDIENUNGSANLEITUNG INSTRUCTIEHANDLEIDING BETJENINGSVEJLEDNING BRUKSANVISNING KÄYTTÖOHJE ISTRUZIONI PER L’USO MANUAL DEL USUARIO MANUAL DO UTILIZADOR...
- Page 2 C o n t e n t s 02CONTENTS 03INFORMATION 04FRONT PANEL OVERVIEW 05REAR PANEL OVERVIEW 06DETAILS...
- Page 3 Please store this instruction manual for future reference. • Place the unit on a solid surface Unplug the radio in following cases: • Do not expose Scansonic R2 to high humidity, direct • Foreign objects or liquids has penetrated the sunlight, dirt, heavy vibration or extreme temperatures.
-
Page 4: Front Panel
F r o n t p a n el 01OFF / FM / AM / AUX: Turn the knob one click to the right to select the FM band, two clicks to the right to select the AM band, three clicks to the right to select the AUX input. - Page 5 0212v DC: Use this input to connect the Scansonic R2 DC power supply. 03HEADPHONES: Connect a separate stereoheadset to this connector to listen to the Scansonic R2 with a headset. Inserting a headset will turn off the main speaker. 04LINE OUT: Scansonic R2 can be used as a separate stereotuner by connecting it from the line out to an stereoamplifier.
- Page 6 R 2 d e ta i ls Tec h detai l s AM/FM manual tuning radio Max power: 7W Loudspeaker: 3” full range speaker Frequency response: 100Hz-20KHz Dimensions (WxHxD): 190x110x140mm F eatures Volume control OFF/FM/AM/AUX/selector Manual tuning Power indicator Tuning indicator Headphone output (stereo) DC power supply input jack AUX input...
