Summary of Contents for Scansonic R4

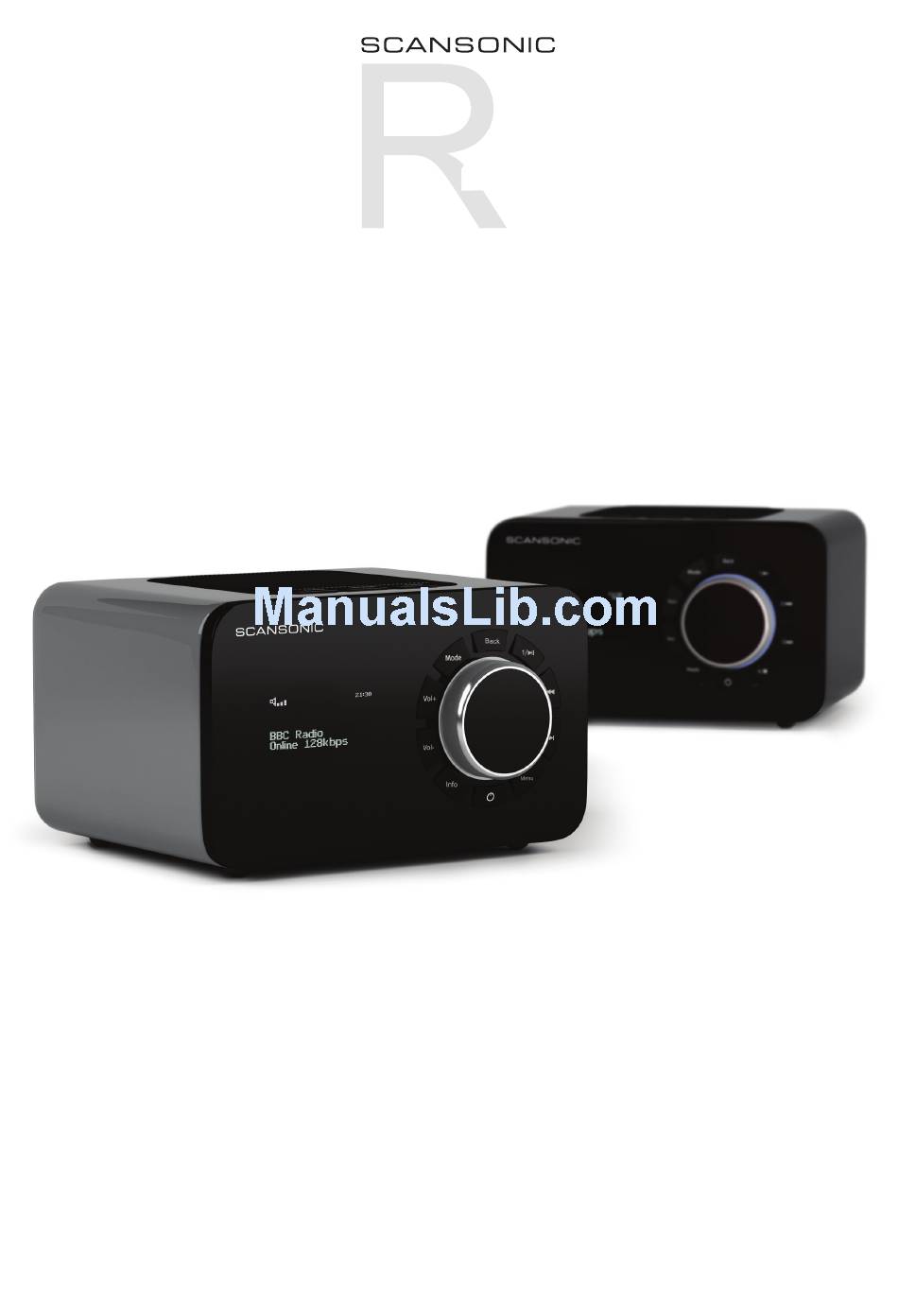

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
C on te n t s CONTENTS INFORMATION FRONT PANEL OVERVIEW REAR PANEL OVERVIEW GETTING STARTED / SETUP NETWORK SETTINGS INTERNET RADIO PORTAL INTERNET RADIO MODE MUSIC PLAYER MODE FM / AUX SETTINGS SPECIFICATIONS... -
Page 3: Information
Unplug the radio before cleaning it. Disclaimer Despite our best efforts we cannot guarantee that the technical data indicated are correct, complete and updated. We, Scansonic, reserve the right to make technical changes without notice. - Page 4 F ro n t p a n el 05 06 11 10 R ea r p a n e l 21 22...
- Page 5 Connect a separate stereoheadset to this input to listen to the radio with headset. Inserting a headset will turn off the main speaker 12v DC Use this input to the Scansonic R4 DC power supply Antenna The radio comes with a telescope antenna. To improve FM reception, adjust the antenna for best reception.
-
Page 6: Getting Started / Setup
Ge t t i n g s ta r t ed / s etup Although the Scansonic R4 is sophisticated, getting started is simple. To play FM radio, all you need is a power source (a 100-240 V mains supply). - Page 7 If your country uses daylight saving, the automatically updated time may be wrong by one hour. When daylight savings are in effect (during the summer), turn on the Daylight savings option. Scansonic R4 will auto-update from the selected source when time information is available Manual set ...
- Page 8 Scansonic R4 is compatible with all common network protocols and encryption methods, including Wi-Fi Protected Setup (WPS). To connect Scansonic R4 to your network, you need either a wired router and an Ethernet (RJ45 network) cable, or a Wi-Fi wireless router, together with password key if set.
-
Page 9: Network
S et t i n g s NETWORK Scansonic R4 remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. You can see the list of registered networks through Menu > System settings > Network > Network profile >. -
Page 10: Internet Radio Portal
I nt e r n e t r a di o por t al REGISTRATION Scansonic R4 radio is equipped with a high quality Internet tuner module from Frontier Silicon. The Frontier Silicon Internet radio portal website allows you to organise your favourites lists and also listen to Internet radio on a computer. - Page 11 SETTING UP A MUSIC SERVER In order for Scansonic R4 to play music files from a computer, the computer must be set up to share files or media. UPnP media sharing allows devices like Scansonic R4 to play music from a shared media library, na- vigating through tag menus such as Artist, Album or Genre.
-
Page 12: Internet Radio Mode
Frontier Silicon radios, you can register them all on the same account so that each radio has access to your favourites lists. It is possible to add favourites either directly through Scansonic R4 or through any computer with a web browser. - Page 13 LAST LISTENED When Internet radio mode restarts, the last-listened station is selected. To select another recently used station, select Menu > Last listened then one of the stations listed. Most recent stations appear at the top of the list. PRESETS Presets are stored in the radio and cannot be accessed from other radios.
- Page 14 You can add your own stati- ons via the portal. These added stations are accessible from Scansonic R4 by selecting Menu > Station list > My added stations > [Station]. NOW PLAYING INFORMATION While the stream is playing, the screen shows its name and description.
-
Page 15: Music Player Mode
Once in music player mode, press Menu, then select either Shared media. Note: Scansonic R4 does not have USB playback as shown on the above image. If you are already playing a music file, you can press Back rather than Menu to quickly return to the last visited branch of the menu tree. - Page 16 SELECTING STATIONS To find a station, press Selection knob . The frequency display starts to run up as Scansonic R4 scans the FM band. Alternatively, you can scan up or down by pressing and holding the >> or << buttons or tune manually with quick presses, or by turning the Select control.
-
Page 17: Fm / Aux Settings
Aux in mode plays audio from an external source such as an MP3 player. To play audio with Aux in mode Turn the volume low on both Scansonic R4 and, if adjustable, the audio source device. Connect the external audio source to the Aux In 3.5 mm stereo socket. -
Page 19: Specifications
S p e c i f i c a t i ons Band Internet & FM Output power 7 watts rms Loudspeaker 3½” full range Antenna FM telescopic, removeable Power DC 12volts Inputs DC 12 volts (for net adapter) AUX in – for iPod, iPhone etc Outputs Line out –... - Page 20 en j oy w w w.s c a n s o ni c . dk...
Need help?
Do you have a question about the R4 and is the answer not in the manual?
Questions and answers
non si collega a internet
The Scansonic R4 may not connect to the internet due to several reasons:
1. Network Connection Lost – If the network connection is lost, the device automatically tries to reconnect, but it may fail if the network is unavailable.
2. Registered Networks Limit – The device remembers only the last four wireless networks. If none are available, it may not connect.
3. Incorrect Network Settings – Manual network settings may not be configured correctly. Users can check and adjust them through *Menu > System settings > Network*.
4. Wired Network Setup – If a wired network is required but not properly set up, the device may not connect.
5. Power Interruption – If power was lost during setup, the setup wizard may need to be run again to configure network settings.
Users can troubleshoot by checking the network profile, verifying settings, and ensuring the internet connection is active.
