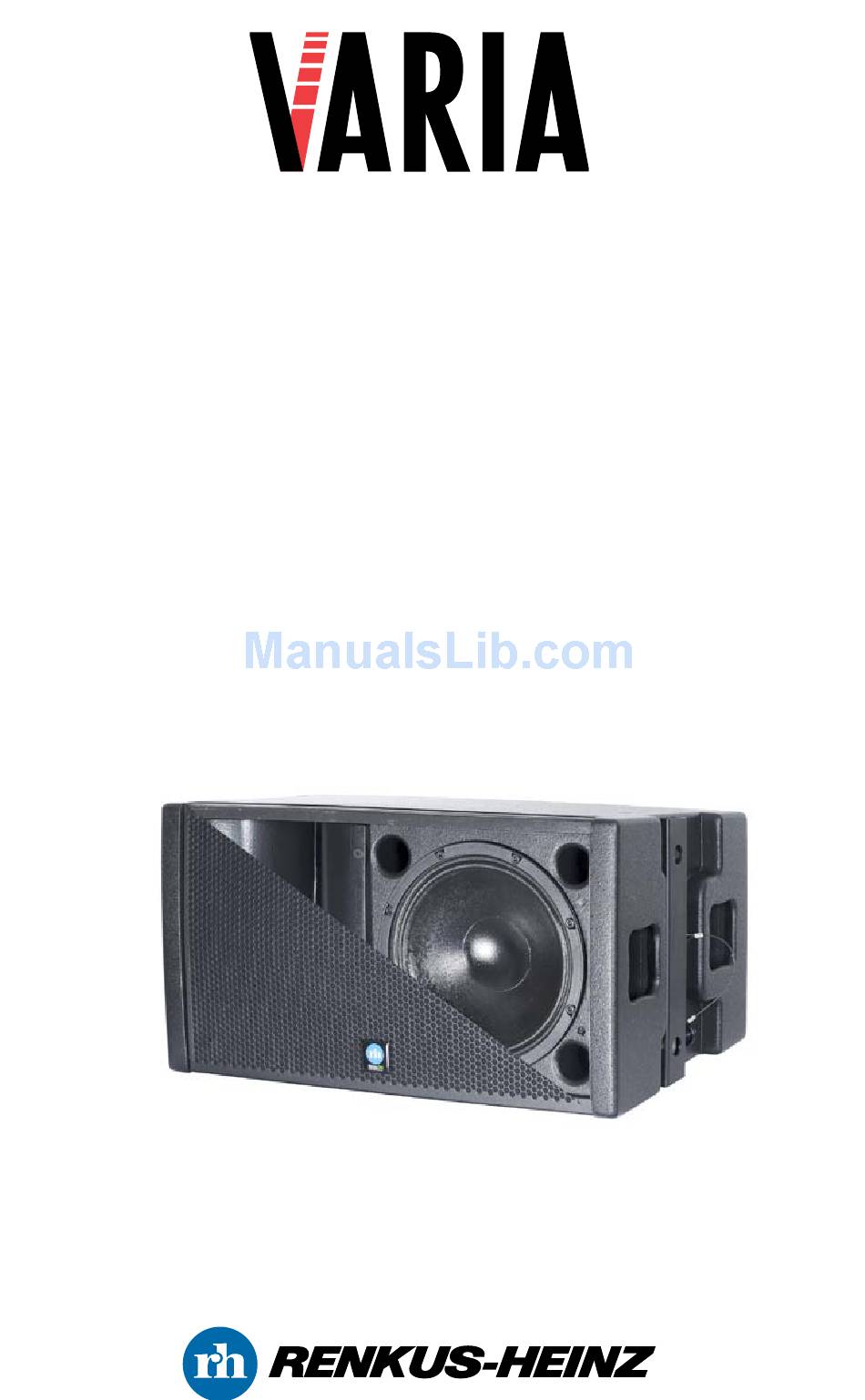

- Page 1 Modular Point Source Array Modules Associated 15 Inch Subwoofer VA101-7 & VAX101-7 Series VA101-15 & VAX101-15 Series VA101-22 & VAX101-22 Series VA15S & VAX15S Subwoofer Users Manual...
- Page 2 The VARIA Concept The VARIA approach is based on the use of 3 different shape cabinets each having a vertical coverage pattern that is complementary to the cabinet shape. Thus, the VA/VAX101-7 has 7.5º...
- Page 3 Point Source Array Modules The VARIA Hardware Concept The array modules have heavy metal side channels and each module is provided with 2 heavy joining bars (one for each side) and associated quick release pins so it can easily be stacked with similar modules For example , -7 modules with other -7 modules.
- Page 4 VA/VAX101-7 Array Module VA / VAX15S Subwoofer “Stand Alone” Applications VARIA array modules are equipped with dual Met- ric M10 attachment points top and bottom so they can be easily flown using eye bolts. Multi-angle pole sockets bottom mounted and side mounted flying hardware add further to their versatility.
- Page 5 Point Source Array Modules Stand Alone Applications (cont) The array modules and the subwoofers are joined together with heavy-duty tie bars and quick-disconnect pins that provide quick and easy assembly along with metal-to-metal reliability. Ground stacks of this type can easily handle up to 3 array modules and two subwoofers.
- Page 6 The VARIA approach is based on the use of 3 different shape cabinets each having a vertical coverage pattern that is complementary to the cabinet shape.
- Page 7 Point Source Array Modules Assembling Vertical Line Arrays 1. Attach the RHANG101LA Flybar to the top cabinet using the quick release pins. Note the bridle construction which allows you to move the suspension bar laterally and adjust the array’s tilt (aiming angle). Move the bridle toward the rear of the cabinets for more tilt.
- Page 8 Point Source Array Modules Assembling Vertical Line Arrays (continued) One of the situations you may run into is you want to use a number of 7 degree modules at the top of a tall vertical array , but the 7 degree tilt provided when two -7 modules are tight packed provides to much tilt.
- Page 9 Point Source Array Modules This page intentionally left blank for future expansion of ground stacking instructions Page 9...
-
Page 10: Horizontal Arrays
Note that the RHANG-VA101H flying hardware accommodates only the 22.5 degree VA / VAX101-22 Typical Horizontal Array You should not attempt to use it with the other Varia array modules. Warning: The actual rigging of loudspeakers suspended from a truss or from a ceiling is a serious undertaking that is beyond the scope of this document. - Page 11 RHAON puts you in total control of: – A powerful DSP inside each Varia loudspeaker that includes eight bands of parametric EQ, high and low frequency shelving filters, input level control, muting and up to 340 ms of delay.
- Page 12 Point Source Array Modules Rear Panel Connections & Controls VAX101 Connections Screw Terminal Strip Looping In & Out Inputs Neutrik 4-Pin Speakon Connectors Array Module High Frequency Control Not all setups are identical and neither are all rooms. That is why the VAX series non-powered ar- ray modules include a rear mounted high frequency level control.
- Page 13 Point Source Array Modules RHAON Empowered VARIA Array Module Connections Power LED Thermal LED Primary Analog Input XLR female Looping Analog Output XLR male Secondary Analog input & Signal & Overdrive Looping Output LED Status Indicators Input Pad & LED Indicator...
- Page 14 Point Source Array Modules VA101-x-52R & VAX101-x Array Modules Technical Specifications Sensitivity VA101-x-52R: 1.0 V for RPO VAX101-x: 96 dB (1W/1m) Freq. Range: 60 Hz to 20 kHz Max SPL: 126 dB peak @ 1 meter HF Driver: VA / VAX 101-7 & VA / VAX101-15 (2) VA / VAX101-22 (1) 1”...
- Page 15 Point Source Array Modules PF2-500 Digital Amplifier Technical Specifications LF: 500 W RMS @ 4 Ohms Output Power: HF: 100 W RMS @ 4 Ohms Freq. Resp: +0.0, -.5 dB, 20 Hz to 20 kHz THD Distortion: < 0.02% typical <100 dB (A weighted) Hum &...
- Page 16 Point Source Array Modules VA101 & VAX101 Dimensional Drawings VA101-22-52R VAX101-22 Top View 15” 23 3/4” VA101-15-52R VAX101-15 13” 15” Front View VA101-22-52R VAX101-22 End Views Bottom View VA15S-R & VAX15S Dimensional Drawing Metric M10 Attachment Points (typical for 8) 22 1/2”...
- Page 17 Point Source Array Modules VA15SR & VAX15S Technical Specifications Sensitivity VA15S-5R: 115 V AC or 230V AC VA15S: VAX15S: 800 W Pgm @ 8 Ohms 1.0 V for RPO VAX15S: Connectors: 97 dB (1W/1m) See PF1-500R amplifier VA15S-5: below Max SPL Screw terminals, VA15S: VAX15S:...
- Page 18 Point Source Array Modules VAX101-7 & VAX15S DSP Settings Suggested DSP settings for VAX101-7 line array modules and their companion VAX15S subwoofer combinations appear below and on the next page. Note that these would not apply to self-powered VA101-7 modules with their built-in DSP. Page 18...
- Page 19 Point Source Array Modules NOTES: 1. The EQ settings shown are for a single array module and may need “fine tuning” in multi cabinet arrays. 2. When the VAX101-7 is being used with a VAX15S subwoofer the VAX101-7 should be delayed 2.7 ms.
- Page 20 Point Source Array Modules VAX101-5 & VAX15S DSP Settings Suggested DSP settings for VAX101-15 line array modules and their companion VAX15S subwoofer combinations appear below and on the next page. Note that these would not apply to self-powered VA101-15 modules with their built-in DSP. Page 20...
- Page 21 Point Source Array Modules NOTES: 1. The EQ settings shown are for a single array module and may need “fine tuning” in multi cabinet arrays. 2. When the VAX101-15 is being used with a VAX15S subwoofer the VAX101-15 should be delayed 2.7 ms.
- Page 22 Point Source Array Modules VAX101-22 & VAX15S DSP Settings Suggested DSP settings for VAX101-22 line array modules and their companion VAX15S subwoofer combinations appear below and on the next page. Note that these would not apply to self-powered VA101-22 modules with their built-in DSP. Page 22...
- Page 23 Point Source Array Modules NOTES: 1. The EQ settings shown are for a single array module and may need “fine tuning” in multi cabinet arrays. 2. When the VAX101-22 is being used with a VAX15S subwoofer the VAX101-22 should be delayed 2.7 ms.
- Page 24 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions 8.
