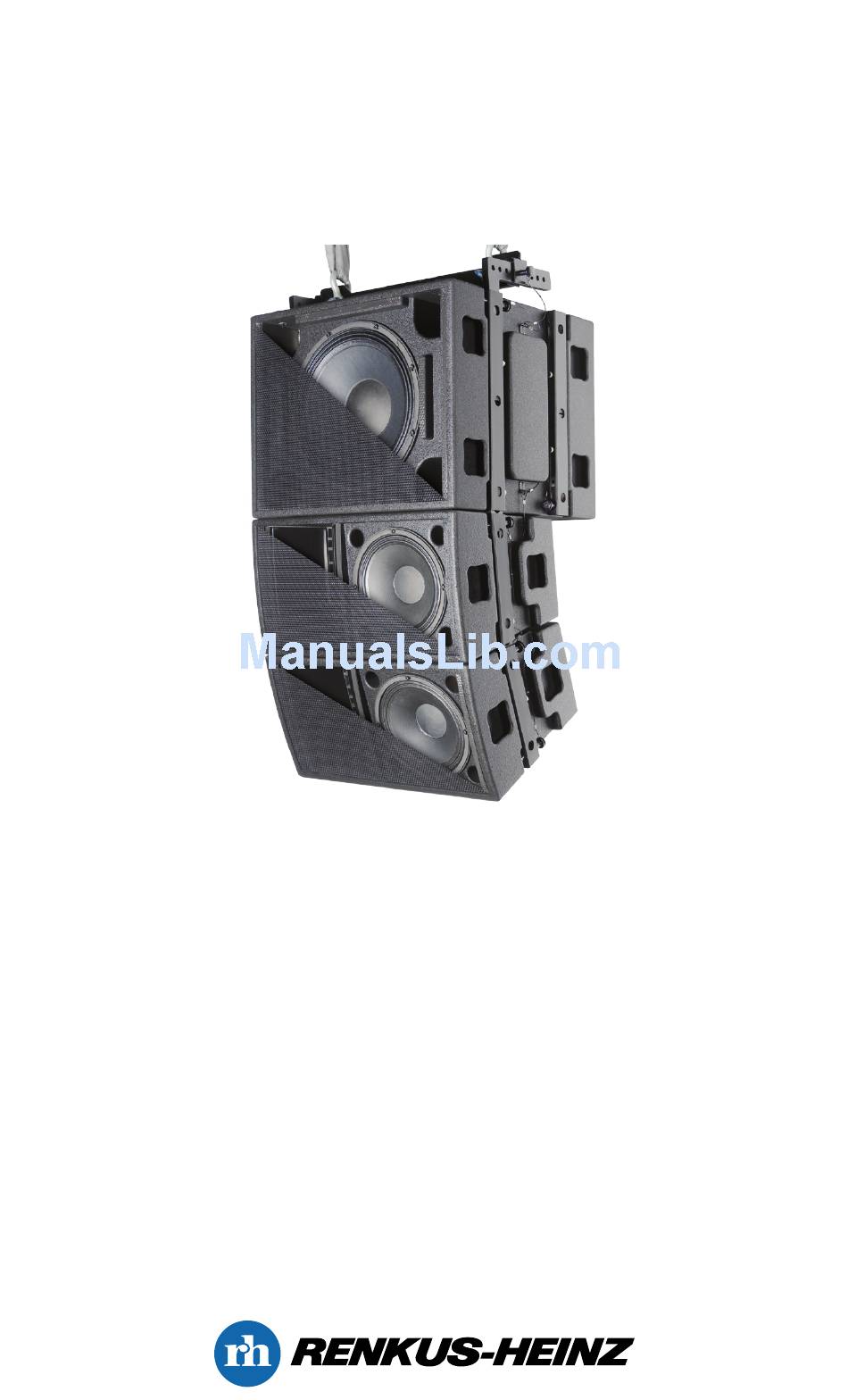

- Page 1 Modular Point Source Arrays & Subwoofers User’s Manual CFX101LA - CFX101LA-8 Externally Powered CF101LA-5 - CF101LA-5R - CF101LA-52R Self-Powered - RHAON Empowered CFX15S - CFX15S-8 Externally Powered CF15S-5 - CF15S-5R Self-Powered - RHAON Empowered...
-
Page 2: Table Of Contents
MPSA Loudspeaker Systems Introduction Congratulations on your purchase of a Renkus-Heinz CF/CFX101LA series point source line array loudspeaker system. Your CF/CFX series loudspeaker has been designed to provide you years of trouble-free high performance listening pleasure. We hope you enjoy it. - Page 3 MPSA Loudspeaker Systems Modular Point Source Line Arrays Designed for power, portability and versatility, CF101LA and CFX101LA modular point source line ar- ray systems from Renkus-Heinz are the ideal solution for today’s small and mid-sized venues, including audi- toriums, night clubs, theaters and houses of worship.
- Page 4 MPSA Loudspeaker Systems Floor Mounted Systems Cf101LA and CFX101LA point source line array modules and their matching CF15S and CFX15S subwoofers were designed for maximum flexibility. They can be used as a single cabinet or in muli- cabinet arrays and can be ground stacked, pole mounted or flown.
-
Page 5: Flying Arrays
Warning: Rigging loudspeakers is a serious undertaking that should be done only by qualified and experienced professionals. Check with an architect or structural engineer to verify any building attachment points. Renkus-Heinz is not responsible for any non Renkus-Heinz products or for any misuse of Renkus-Heinz products. Page 5... -
Page 6: Subwoofer Assembly
MPSA Loudspeaker Systems CF15S and CFX15S Subwoofer Assembly CF15S and CFX15S Subwoofers are equipped with rubber feet that fit into matching cups in the top of the lower subwoofer when two units are stacked together. As a result when the subwoofers are flown in an array such as the one shown above, the subwoofer has to turned upside down. Otherwise the feet prevent the subwoofer and array module from being joined together. - Page 7 Looping In & Out Inputs Neutrik 4-Pin Speakon Connectors Your CFX101LA loudspeaker was shipped to you wired for fully passive operation using the internal crossover. It can be converted to bi-amplified operation by removing the connector plate from the cabinet and changing several internal connections. For detailed instructions, please refer to the Renkus-Heinz Loudspeaker User’s manual, form RH508.
- Page 8 Volume Controls Fault Relay Mute Buttons AC Power On/Off IEC Power AC Line Voltage AC Line Fuse Connector Selector The input panel shown below is for the PF2-500R digital bi-amplifier used in the CF101LA-52R The input panel of the PF1-500R amplifier used in the CF101LA-5R is identical, except for having only a single Mute button. For more detailed information, please refer to the Renkus-Heinz RHAON User’s Manual. Page 8...
-
Page 9: High Frequency Control Settings
Not all setups are identical and neither are all rooms. The high frequency level controls on the rear of each CF101LA and CFX101LA point source array module allow you to adjust the high frequency output of each module to compensate for the increased loss of... -
Page 10: Cfx101La & Cfx15S Dsp Settings
MPSA Loudspeaker Systems CFX101LA & CFX15S DSP Settings Suggested DSP settings for various CFX101LA line array modules and CFX15S subwoofer combinations appear below and on the next page. Note that these would not apply to the CF101LA-5R and CF101LA-52R which include built-in DSP. - Page 11 MPSA Loudspeaker Systems CFX101LA & CFX15S DSP Settings (Continued) Page 11...
-
Page 12: Technical Specifications
CF101LA-5 & -5R: 47.5 Lbs. (20.7 Kg) net POLE-CF101 Mounting Pole CF101LA-52R: 48.5 Lbs (22 Kg) net CFX101LA & -8: 42 1/2 Lbs (19.3 Kg) net Renkus-Heinz, Inc., 19201 Cook Street, Foothill Ranch, CA 92610-3501, USA Tel: +1 949-588-9997 • Fax: +1 949-588-9514 • Sales@renkus-heinz.com • www.renkus-heinz.com RH 767 rev B November2012...
