General Information ...................................................................................................... 1
Installation Check List .................................................................................................. 2
Approved Installations ................................................................................................... 3
Exhaust Venting ............................................................................................................ 4
Venting - Approved Materials ......................................................................... 4
Venting-Typical PL Vent Components ............................................................. 5
Venting - Determining Materials .................................................................... 6
Venting: Through Combustibles ..................................................................... 8
Venting: Into an Existing Chimney ............................................................... 10
Venting: Termination Requirements ............................................................. 12
Combustion Air ........................................................................................................... 14
Electrical Connections ................................................................................................ 15
Floor Protection .......................................................................................................... 17
Clearances to Combustible Materials ......................................................................... 18
Mobile Home Installation ........................................................................................... 20
Thermostat Installation and Operation ........................................................................ 22

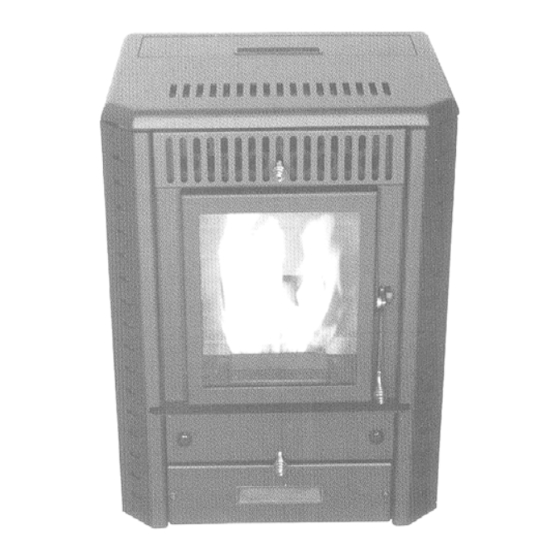

St. Croix
PEPIN
Installation Manual

Table of Contents

1103

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEPIN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for St. Croix PEPIN

  • Page 1: Table Of Contents

    St. Croix PEPIN Installation Manual Table of Contents General Information ...................... 1 Installation Check List ....................2 Approved Installations ....................3 Exhaust Venting ......................4 Venting - Approved Materials ................. 4 Venting-Typical PL Vent Components ............. 5 Venting - Determining Materials ..............6 Venting: Through Combustibles ..............
  • Page 2: General Information

    Since Even Temp Company has no control over the installation of a stove, Even Temp Company grants no warranty, implied or stated, for the installation of a stove and assumes no responsibility for any special, incidental or consequential damages. Pepin installation manual Page 1...
  • Page 3: Installation Check List

    During this time, an odor that is not harmful may be evident. When odors are present, the area around the stove should be well ventilated. 5. Caution: The high temperature paint can be easily scratched prior to burning the stove. Pepin installation manual Page 2...
  • Page 4: Approved Installations

    APPROVED INSTALLATIONS The Pepin is approved for CONVENTIONAL and MOBILE HOME installations as: 1. A FREESTANDING stove 2. A HEARTH MOUNT stove WARNING: The stove must not be installed in a sleeping room when in a mobile home and must have a permanent source of outside air.
  • Page 5: Exhaust Venting

    High temperature ceramic roping reduces potential fly ash escaping through joints. Stainless steel inner liners resist corrosive flue gas damage to the system.. Flex pipe is 430 stainless steel, 4 ply construction with a total thickness of approx. .07 inches. Pepin installation manual Page 4...
  • Page 6: Venting-Typical Pl Vent Components

    TYPICAL PL VENT COMPONENTS RAIN CAP VERTICAL OR WALL THIMBLE CHIMNEY SUPPORT BRACKET HORIZONTAL ADAPTER ADJUSTABLE LENGTH SINGLE TEE SINGLE REDUCTION DOUBLE TEE PIPE w/TEE CAP TEE w/TEE CAP w/TEE CAP PIPE ADAPTER INCREASER ELBOW ELBOW Pepin installation manual Page 5...
  • Page 7: Venting: Determining Materials

    5. The exhaust pipe on all stoves is 2.95” O.D. to accommodate a 3” pellet stove pipe adaptor. Your installation may require the use of 4” vent. (3” to 4” adapters are available for both PL Vent and Single Wall Vent.) Use the following guidelines: Pepin installation manual Page 6...
  • Page 8 D – Side of stove to center of intake tube B – Height of stove E – Side of stove to center of exhaust C – Center of intake tube from floor F – Center of exhaust from floor Pepin installation manual Page 7...
  • Page 9: Venting: Through Combustibles

    An airtight seal is necessary in connecting the vent to the stove. Using a PL Vent pipe adapter, secure the PL vent with at least three sheet metal screws and high temperature silicone adhesive, (RTV), or metal tape at each joint. Pepin installation manual Page 8...
  • Page 10 Install roof flashing (J) and a storm collar (K). Extend the PL vent at least twenty-four inches (24”) above the roof and terminate with a PL listed rain cap (L). Pepin installation manual Page 9...
  • Page 11: Venting: Into An Existing Chimney

    When wall penetration is necessary to access a masonry chimney, use a listed PL vent wall thimble. (Figure 6). 4. When venting into a Class A steel chimney, (Figure 7), use an appropriate PL Vent adapter. Pepin installation manual Page 10...
  • Page 12 Figure 8. Venting to the Top of Chimney 1. When installing as a hearth mount stove into a fireplace the unit must be relined and must terminate above the chimney chase top. An approved flex liner of PL vent must be used. Pepin installation manual Page 11...
  • Page 13: Venting: Termination Requirements

    (see note below), cavity, or air vent 4’ (1.2 m) HORIZONTALLY FROM a door, window (see note below), cavity, or air vent 1’ (305 mm) ABOVE a door, window (see note below), cavity, or air vent Pepin installation manual Page 12...
  • Page 14 2’ (610 mm) FROM any adjacent combustibles such as: Adjacent buildings, fences, protruding parts of the structure, roof eaves or overhangs, plants, shrubs, etc. FIGURE 10. VENTING: TERMINATION CLEARANCE REQUIREMENTS SIDE VIEW (All dimensions show MINIMUM distances) Pepin installation manual Page 13...
  • Page 15: Combustion Air

    6. In the case of a sealed fireplace insert shroud, an outside air inlet to the fireplace cavity is necessary to ensure adequate airflow for combustion. WARNING: OUTSIDE COMBUSTION AIR IS REQUIRED FOR ALL MOBILE HOME INSTALLATIONS! Pepin installation manual Page 14...
  • Page 16: Electrical Connections

    ELECTRICAL CONNECTIONS 1. The Pepin is provided with a grounded electrical power cord that can extend from the rear of side. This should be connected to a standard 120 volt AC electrical outlet. The current requirement is approximately 3 amps. (5 amps with igniter running) 2.
  • Page 17 Wiring schematic Pepin installation manual Page 16...
  • Page 18: Floor Protection

    Hearth models may be placed directly on the noncombustible hearth of a fireplace. Floor protection is required for the area directly under the stove and extending 6” beyond the front of the stove as shown. Figure 12 Floor protection (Top View) Pepin installation manual Page 17...
  • Page 19: Clearances To Combustible Materials

    Floor protection: Sides & back of stove 0” Alcove: Vertical to Combustibles 16” Alcove: Sides 4” 16A, 16B Alcove: Back 4” Figure 13 (Top View) Figure 14. (Top View) Clearances: corners of stove Clearances Sides and Back Pepin installation manual Page 18...
  • Page 20 Floor Pad and Mantle Clearances Alcove Installation (Side View) Figure 15 Figure 16A Alcove Installation (Top View) Figure 16B Pepin installation manual Page 19...
  • Page 21: Mobile Home Installation

    MOBILE HOME! FAILURE TO DO SO MAY CREATE NEGATIVE PRESSURE WITHIN THE MOBILE HOME AND COULD DISRUPT PROPER VENTING AND OPERATION OF THE PELLET STOVE. 3. CAUTION: THE STRUCTURAL INTEGRITY OF THE FLOORS, WALLS, CEILING AND ROOF MUST BE MAINTAINED. Pepin installation manual Page 20...
  • Page 22 9. Floor protection requirement must be followed precisely. 10. PL Vent must be used for exhaust venting. (Single wall vent is not allowed). Follow PL Vent manufacturer’s installation directions and observe all listed clearances to combustibles. Pepin installation manual Page 21...
  • Page 23: Thermostat Installation And Operation

    INSTRUCTION FOR THERMOSTAT HOOK-UP St. Croix wood pellet stove offers our customers the optional feature of thermostatically controlling your new stove. By using a thermostat to control the operation of your wood pellet stove, you can benefit two ways. First of all, after setting the thermostat to your desired heating needs the stove will operate accordingly to uniformly maintain your desired temperature setting.
  • Page 24 Notes: Serial Number: Date of Purchase: Dealer Information: Even Temp, Inc. P.O. Box 127 Waco, NE 68460 PHONE: 402-728-5255 FAX: 402-728-5379 EMAIL: support@eventempinc.com WEB ADDRESS: www.eventempinc.com Pepin installation manual Page 23...
