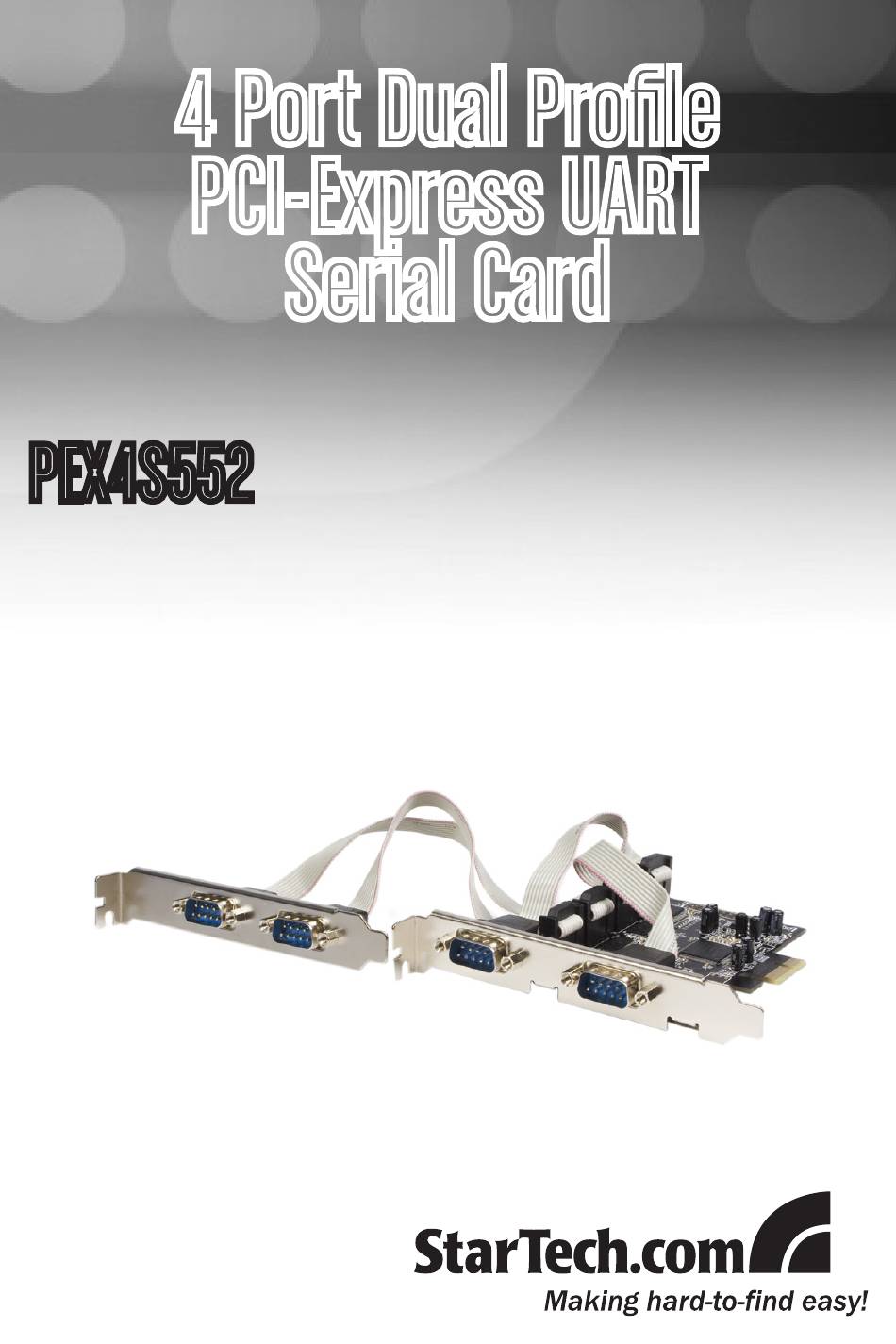

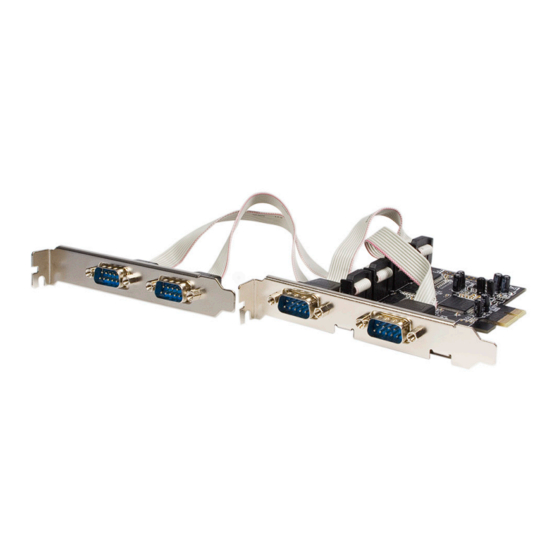

- Page 1 4 Port Dual Profile PCI-Express UART Serial Card PEX4S552 Manual Revision:01/18/2011 For the most up-to-date information, please visit www.startech.com...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Features ..................1 Package Contents ...............1 Installation ..................2 Software (Drivers) ................2 Windows® 2000/XP/Server 2003 ..........2 Windows® XP(x64), Server 2003(x64) ..........2 Windows Vista™ ................3 Windows Vista™ (x64) ..............3 Hardware Installation ..............4 Verifying Windows Driver Installation ...........4 Specifications ................ -
Page 4: Introduction
Compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista™ (32-bit and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4 and above, the PEX4S552 PCI Express Serial Card also features an optional low profile bracket that allows the card to be installed in virtually any computer case regardless of the form factor of the case. -
Page 5: Installation
For further reference, please see the section titled Hardware Installation. 7. Once the PEX4S552 card has been installed within the system, power up the computer. Once the operating system boots, Windows® will automatically start installing the device driver software. -
Page 6: Windows Vista
For further reference, please see the section titled “Hard- ware Installation”. 7. Once the PEX4S552 card has been installed within the system, power up the computer. Once the operating system boots, Windows® will automatically start installing the device driver software. -
Page 7: Hardware Installation
Instruction Manual 6. Install the PCIe card in an available PCI Express slot on the host computer. For further reference, please see the section titled Hard- ware Installation. Hardware Installation 1. Turn off the power to the computer. 2. Unplug the power cord and remove your computer’s cover. 3. -
Page 8: Specifications
Instruction Manual Specifications Specification PEX4S552 Bus Type PCI Express Chipset MOSCHIP MCS9901 Selectable Output from Pin 9 of Power Output Serial Port Windows 2000/XP/2003/Vista™ (x32 and x64) Operating Systems Supported Linux Kernel 2.6.11 & above MAC 10.4 & above... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
