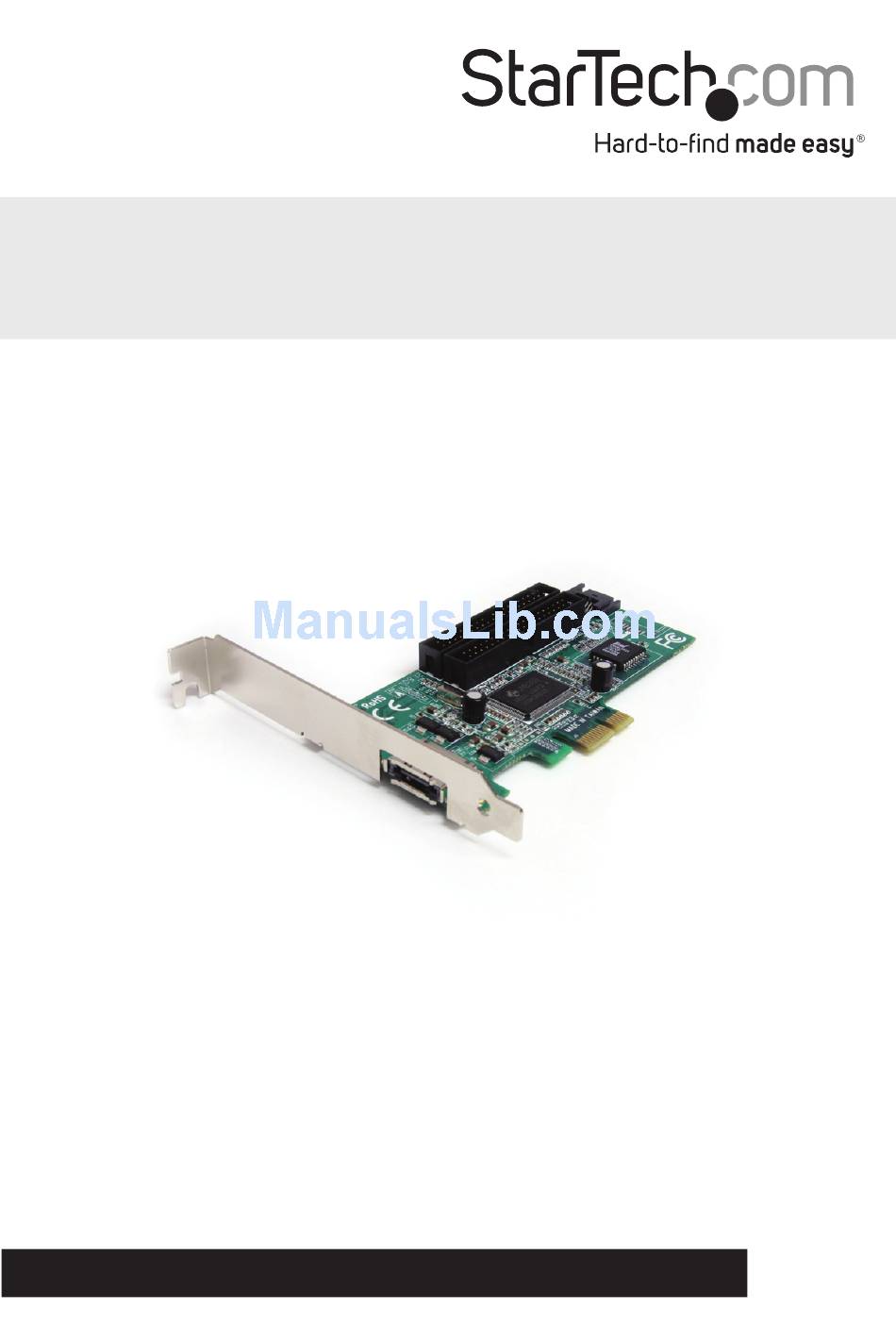

2 port SATA/eSATA + 2 port IDE PCI
Express Controller Card
PEXSAT2IDE2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/05/2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com PEXSAT2IDE2
Summary of Contents for StarTech.com PEXSAT2IDE2
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/05/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Introduction ...............................1 Features ................................1 Before You Begin ..............................1 System requirements ..........................1 Contents .................................1 Installation................................2 installing the PCI Express Card ......................2 Connecting drives to PEXSAT2IDE2 ....................2 Configuring the Onboard BIOS ......................4 Specifications ..............................7 Technical Support ............................8 Warranty Information ............................8 Instruction Manual... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com SATA and IDE PCI Express Controller card, ideal for individuals using both IDE and SATA drives in the same system, this product allows you to connect two SATA drives on independent channels and up to two IDE devices on a single channel. -
Page 5: Installation
Installing the PCI Express Card Please note that aside from the terminology used by each version of the Windows operating system differing slightly during the installation of PEXSAT2IDE2, the installation sequence is virtually identical. 1. Make sure that your system is unplugged and you are grounded. -
Page 6: Connecting Drives To Pexsat2Ide2
SATA Data Port eSATA Port Once PEXSAT2IDE2 and the necessary software have been installed, you can connect your hard drives to the card. You may elect to mount the drives in the computer case prior to connecting them to the card. -
Page 7: Configuring The Onboard Bios
PEXSAT2IDE2. Configuring the Onboard BIOS Once you have connected the drives you wish to use with PEXSAT2IDE2, reattach the sides of the computer case and power up the computer. - Page 8 Creating a RAID configuration To create a RAID configuration, from the main window, select Create RAID Disk Drive, and press Enter. The following window will display, allowing you to configure your RAID setup: New RAID Hard Disk Attributes Drive List Help Menu New RAID Attributes: Here, you can name your RAID configuration for easy reference.
- Page 9 Reverting to non-RAID configuration To return the physical drives to a non-RAID state, enter the Revert HDD to Non-RAID menu, and select the RAID Disk you wish to modify using the up and down arrow keys. Press Enter to select the chosen disk, and press Y (Yes) to accept the change.
-
Page 10: Specifications
Specifications Bus Type PCI Express x 1 1 x SATA II (internal) Connectors 1 x eSATA (external) 2 x Ultra ATA-133/IDE 300 MBps (SATA II / SATA300) Maximum Data Transfer Rate 133 MBps (IDE) Chipset JMicron JMB366 Windows XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ OS Support 7(32/64bit)/ Server 2008 R2, Linux, Mac OS... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
