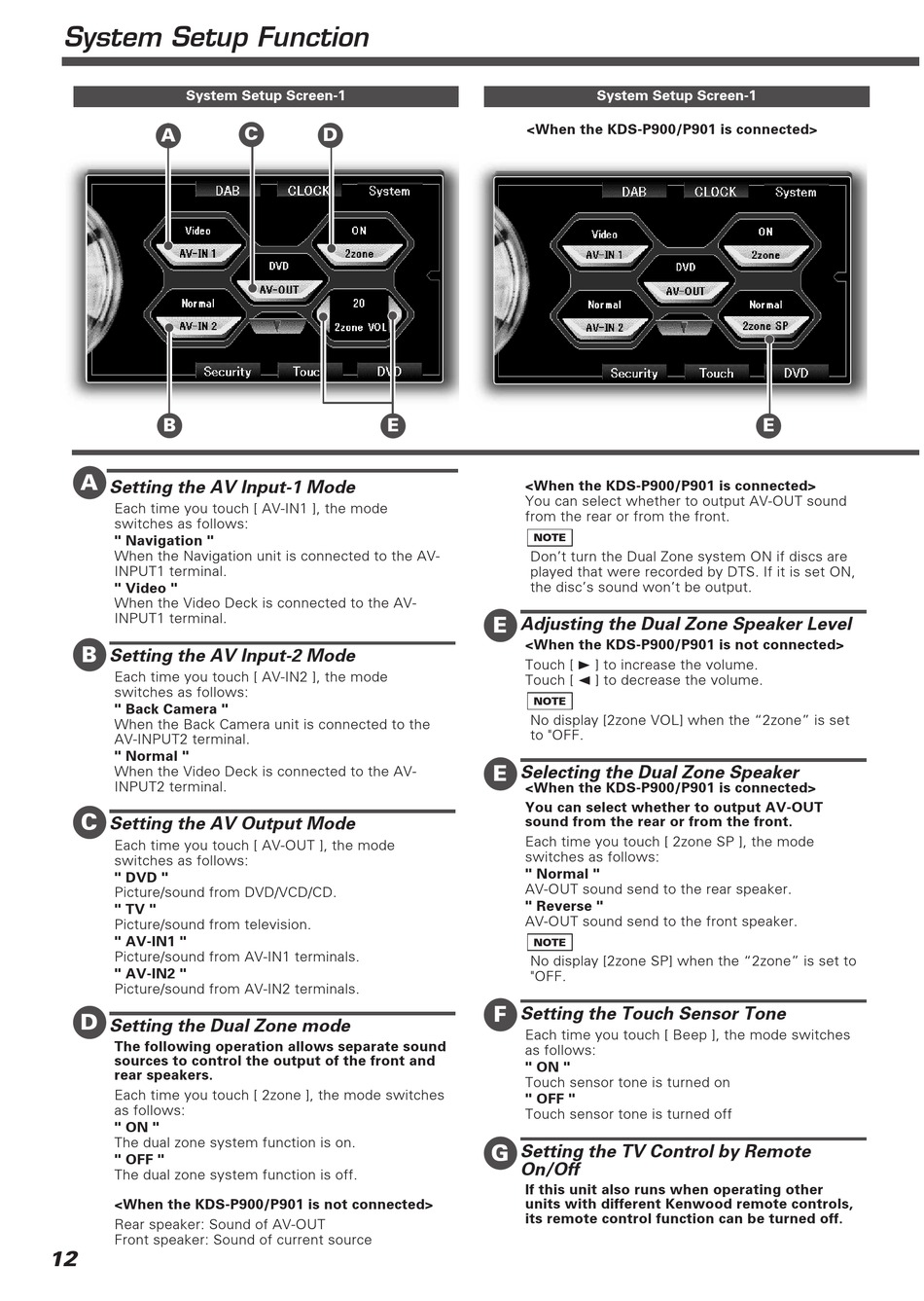

System Setup Function

System Setup Screen-1
A
B
A

Setting the AV Input-1 Mode

Each time you touch [ AV-IN1 ], the mode
switches as follows:
" Navigation "
When the Navigation unit is connected to the AV-
INPUT1 terminal.
" Video "
When the Video Deck is connected to the AV-
INPUT1 terminal.
B

Setting the AV Input-2 Mode

Each time you touch [ AV-IN2 ], the mode
switches as follows:
" Back Camera "
When the Back Camera unit is connected to the
AV-INPUT2 terminal.
" Normal "
When the Video Deck is connected to the AV-
INPUT2 terminal.
C

Setting the AV Output Mode

Each time you touch [ AV-OUT ], the mode
switches as follows:
" DVD "
Picture/sound from DVD/VCD/CD.
" TV "
Picture/sound from television.
" AV-IN1 "
Picture/sound from AV-IN1 terminals.
" AV-IN2 "
Picture/sound from AV-IN2 terminals.
D

Setting the Dual Zone mode

The following operation allows separate sound
sources to control the output of the front and
rear speakers.
Each time you touch [ 2zone ], the mode switches
as follows:
" ON "
The dual zone system function is on.
" OFF "
The dual zone system function is off.
<When the KDS-P900/P901 is not connected>
Rear speaker: Sound of AV-OUT
Front speaker: Sound of current source
12
C
D
E
System Setup Screen-1
<When the KDS-P900/P901 is connected>
<When the KDS-P900/P901 is connected>
You can select whether to output AV-OUT sound
from the rear or from the front.
NOTE
Don't turn the Dual Zone system ON if discs are
played that were recorded by DTS. If it is set ON,
the disc's sound won't be output.
E

Adjusting the Dual Zone Speaker Level

<When the KDS-P900/P901 is not connected>
Touch [ 3 ] to increase the volume.
Touch [ 2 ] to decrease the volume.
NOTE
No display [2zone VOL] when the "2zone" is set
to "OFF.
E

Selecting the Dual Zone Speaker

<When the KDS-P900/P901 is connected>
You can select whether to output AV-OUT
sound from the rear or from the front.
Each time you touch [ 2zone SP ], the mode
switches as follows:
" Normal "
AV-OUT sound send to the rear speaker.
" Reverse "
AV-OUT sound send to the front speaker.
NOTE
No display [2zone SP] when the "2zone" is set to
"OFF.
F

Setting the Touch Sensor Tone

Each time you touch [ Beep ], the mode switches
as follows:
" ON "
Touch sensor tone is turned on
" OFF "
Touch sensor tone is turned off
Setting the TV Control by Remote
G
On/Off
If this unit also runs when operating other
units with different Kenwood remote controls,
its remote control function can be turned off.
E
