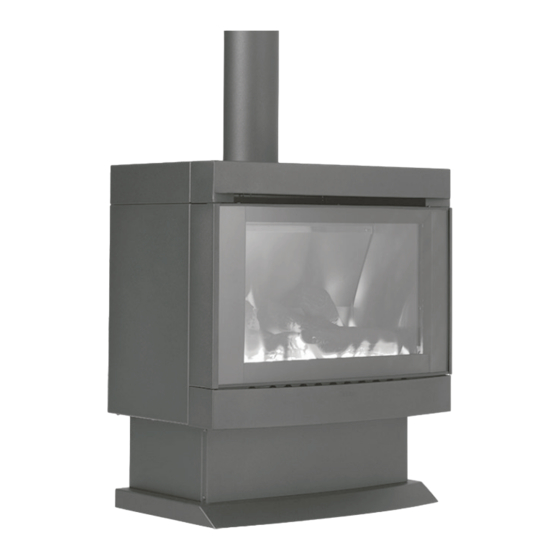

Cannon Canterbury Instruction Manual
Freestanding
Hide thumbs
Also See for Canterbury:
- User instructions (24 pages) ,
- Instruction manual (20 pages) ,
- User instructions (12 pages)
Table of Contents
Advertisement
Quick Links
Gas Log Heaters
This heater is approved for Natural and Propane gases
Distributor
This appliance is designed, manufactured and distributed by:
Tel: 1300 727 421
Sharing a lifetime of cosy moments
Canterbury
Freestanding
Instruction Manual
Please read this manual before
installing and using this heater.
Model: CANTFS-SDEEB
Please leave instruction manual with the owner
Advertisement
Table of Contents
Related Manuals for Cannon Canterbury
Summary of Contents for Cannon Canterbury
- Page 1 Sharing a lifetime of cosy moments Gas Log Heaters Canterbury Freestanding Instruction Manual Please read this manual before installing and using this heater. Model: CANTFS-SDEEB This heater is approved for Natural and Propane gases Please leave instruction manual with the owner...
-
Page 2: Table Of Contents
CANTERBURY FREESTANDING SPECIFICATIONS CANTERBURY FREESTANDING INSTALLATION INSTRUCTIONS FRONT GLASS REMOVAL AND INSTALLATION FLUEING INSTALLATION ELECTRICAL CONNECTION AND GAS CONNECTION LOG INSTALLATION SETTING THE GAS PRESSURE SERVICE INSTRUCTIONS 15 –16 WIRING DIAGRAM TROUBLESHOOTING 18 – 19 2 | Cannon Canterbury Freestanding... -
Page 3: Warranty
This Warranty against defects for your newly purchased c. w ill not apply where the defect in or failure of Cannon product is proudly prepared by Sampford IXL Pty the product is attributable to misuse, abuse, Ltd of 421 Smith Street, Fitzroy, VIC 3065, accident or non-observation of the manufacturer’s... - Page 4 11.Sampford IXL and its Authorised Service Dealers reserve the right to seek reimbursement of any costs incurred by them should your Cannon product be found to be in good working order. Privacy The privacy of your personal information has always been important to us.
-
Page 5: Safety Warnings
Cannon monoxide (CO) poisoning and possible death. distributor listed in this manual. -
Page 6: Operation
High wind gusts can affect the heaters flueing and ON / OFF switch the heater off. If this happens, restart the heater as normal. If the problem persists contact Sampford IXL. NORMAL BOOST FIG 1 FIG 2 6 | Cannon Canterbury Freestanding... -
Page 7: Optional Accessories
OPTIONAL ACCESSORIES Every Cannon heater brings you the optional convenience of being controlled via a remote thermostat. For added convenience the heater can now be connected to a home automation system, such as C-bus. This allows the heater to be turned on or off remotely (normal heat setting only). -
Page 8: Canterbury Freestanding Specifications
Overall dimensions Refer to FIG 3 Please note: The data label is located on the left hand side panel near the electronic control box. 650 mm 425 mm FIG 3 Back View and Side View 8 | Cannon Canterbury Freestanding... -
Page 9: Canterbury Freestanding Installation Instructions
FIG 4 Please make sure that your customer is fully instructed on how to operate the heater. 40 mm minimum 1m min. back clearance Flue outlet 75 mm from rear Rear spacer FIG 5 Cannon Canterbury Freestanding | 9... -
Page 10: Front Glass Removal And Installation
Refer FIG 8. This heater can be placed on either combustible or non combustible floor surfaces. FIG 7 Top: rearward sloping frame Bottom: vertical edge FIG 8 10 | Cannon Canterbury Freestanding... -
Page 11: Flueing Installation
If bends are used, they must fit inside flue on downwards ends. Use no more than two 45° bends in the total flue run and maintain at least 250mm of straight flue pipe between the bends FIG 10 Cannon Canterbury Freestanding | 11... -
Page 12: Electrical Connection And Gas Connection
Connect incoming gas supply pipe to 1 / 2 ” compression fitting at rear of appliance. For inlet position refer FIG 11. Solid copper pipe to be used only. Heater MUST NOT be connected using a flexible hose. 110mm 125mm FIG 11 12 | Cannon Canterbury Freestanding... -
Page 13: Log Installation
#3 log. Refer FIG 16. FIG 13 FIG 14 3. Refit t he inner glass, making sure not to over tighten the screws. 4. Refit the front glass surround. FIG 15 FIG 16 Cannon Canterbury Freestanding | 13... -
Page 14: Setting The Gas Pressure
• Check that the flue is operating correctly. Hold If the heater still does not operate to specification refer to the troubleshooting chart on page 18, or contact Sampford IXL in your state. Adjust FIG 21 14 | Cannon Canterbury Freestanding... -
Page 15: Service Instructions
2 either side. 2. Unplug both fan and main loom from wiring harness. Room Fan Pressure Switch Ignition Module Gas Valve Electronic Controller BEEP FIG 23 FIG 22 Switch Control Diagram highlighting NG/LP settings & audible beep. Cannon Canterbury Freestanding | 15... - Page 16 18 & 19. FIG 24 Securing the burner bed Flame Sense Electrode Spark Plate Clear Silicon Tube Spark Electrode Black Silicon Tube FIG 26 FIG 25 Room Fan 16 | Cannon Canterbury Freestanding...
-
Page 17: Wiring Diagram
WIRING DIAGRAM FIG 27 Cannon Canterbury Freestanding | 17... -
Page 18: Troubleshooting
Make sure that the pressure switch wires are connected correctly. One wire should be to C (Common) and the other should be to NO (Normally Open). If it still doesn’t work after checking the above, change the pressure switch. 18 | Cannon Canterbury Freestanding... - Page 19 • Check that there is gas to the inlet of the gas control. Fuse blowing. • If the fuse continues to blow check the solenoid coils for a signs of them being shorted. • Check the fan and wiring for short circuit. Cannon Canterbury Freestanding | 19...
- Page 20 Installed By: For service to this appliance or spare parts GMK 10113 contact the CANNON distributor: AS4553:2008 Sampford IXL – Spare Parts Phone: 1300 727 421 Part Number: Fax: 1300 727 425 F3842_D Email: aftersalesservice@sampfordixl.com.au 20 | Cannon Canterbury Freestanding...
