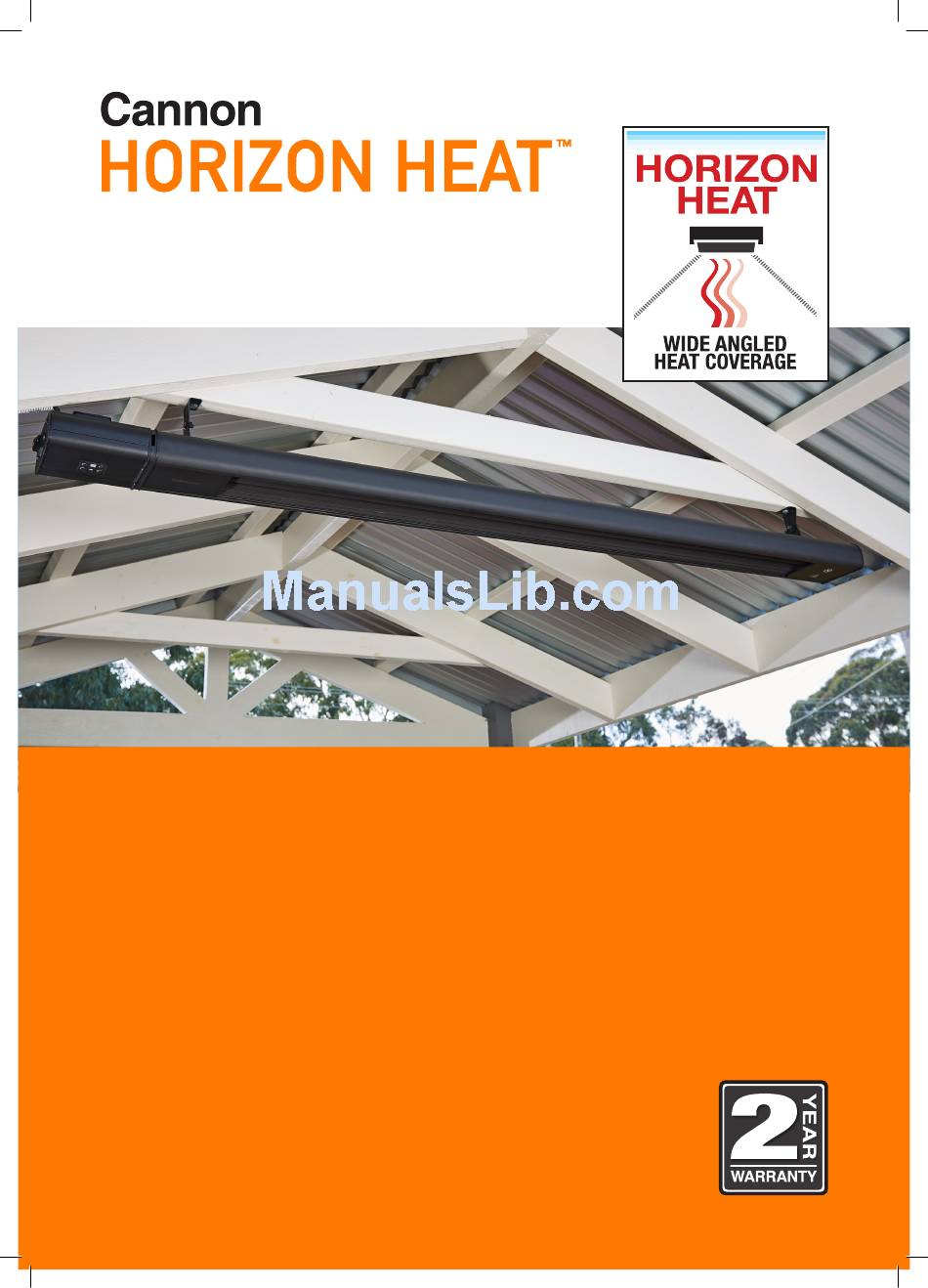

Delivers a wide heat spectrum for consistent
warmth, backed by the strength & rigidity of the
wave element design.
USE, CARE AND INSTALLATION
INSTRUCTIONS
FOR YOUR NEW CANNON HORIZON HEATER

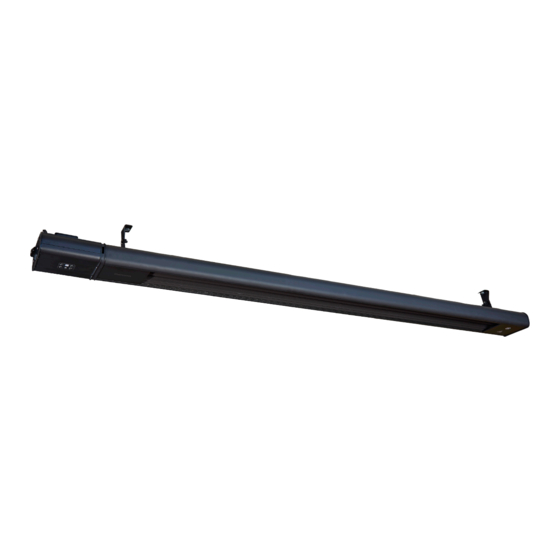

Models: CAST18R, CAST24R, CAST32R
• The heater must be installed in accordance with the manufacturer's
installation instructions.
• The heater MUST ONLY be installed or removed by an
authorised person.
• The heater MUST be installed in accordance with AS/NZS 3000
(wiring rules)and all other applicable local & state building and
OH & S requirements.
™
Advertisement
Table of Contents
Related Manuals for Cannon CAST18R
Summary of Contents for Cannon CAST18R
- Page 1 & rigidity of the wave element design. USE, CARE AND INSTALLATION INSTRUCTIONS FOR YOUR NEW CANNON HORIZON HEATER Models: CAST18R, CAST24R, CAST32R • The heater must be installed in accordance with the manufacturer’s installation instructions.
- Page 3 The Horizon Heat™ range provides a number of options, depending on the area size and heating requirements with an 1800W, 2400W and 3200W models on offer. Backed by a 2 year warranty, the Cannon Horizon strip heater range provides perfect outdoor heating for all occasions.
- Page 4 Models: CAST18R, CAST24R, CAST32R CAUTION Young children must be supervised when in the vicinity of this heater, when in operation. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of knowledge, unless...
- Page 5 IMPORTANT INFORMATION: Models CAST18R and CAST24R are fitted with an Australian / New Zealand flexible 1.8M cord and 3 pin plug. A dedicated 240V 50Hz earthed 10AMP socket outlet must be used with this appliance.
-
Page 6: Accessories Check List
Accessories Check List are included. If anything is missing, ask your retailer to provide it to you, or contact the Cannon distributor. Ensure you have a philips - head screw driver and a spanner (not supplied) suitable for M6 screw nut. -
Page 7: Specification
Models: CAST18R, CAST24R, CAST32R SPECIFICATION 3,4,5 < < PARTS DESCRIPTIONS: PART NAME PART NAME Expansion Bolt M*70 Lower L Bracket Upper L Bracket Main Switch Washer Control Panel Spring Washer Screw M6*8 Screw Nut M6 Allen Key Screw M6* 16 Remote Control MODEL NO. - Page 8 Models: CAST18R, CAST24R, CAST32R HEATING COVERAGE For the majority of outdoor heating applications the most effective method to heat a particular area is displayed below. The diagrams provide an easy selection guide for the approximate coverage capacity in common settings & area sizes.
-
Page 9: Installation
Models: CAST18R, CAST24R, CAST32R INSTALLATION The Cannon Horizon strip heaters use Horizon Heat which use infrared radiant heat, that heats objects and people rather than air, for a more efficient and comfortable heat. Having the optimal placement, where people are within the heated footprint area, will ensure an ideal result. -
Page 10: Installation Requirements
For optimal positioning we recommend a horizontal ceiling mounted unit, directly above the area that requires heating, facing downward. If this position is not possible, then the Cannon Horizon models are supplied with mounting brackets that allow for downward angled wall and ceiling positions. -
Page 11: Installing The Unit
Models: CAST18R, CAST24R, CAST32R INSTALLATION Installing the unit Remove heater and accessories from packaging and inspect for damage. Review area and determine the ideal mounting position taking into account the required clearances. Set the adjustable mounting brackets to the desired angle, based on the clearances and area where it is to fixed. -
Page 12: Ceiling Installation
Models: CAST18R, CAST24R, CAST32R INSTALLATION Clearances See below the minimum recommended clearances Angled Wall Installation LIGHT, FAN OR SPRINKLER MUST NOT BE BELOW THE HEATER > Wall CEILING 57mm Min 177mm Min 1500mm Min < > < > 60mm 1000mm Min... - Page 13 60mm Min < > 1000mm Min 2700mm Max Surface below the heater FLOOR The Cannon Horizon Models come supplied with two mounting brackets, allowing you to adjust the angle, for angled ceiling & wall installation Ceiling Wall > 22.5 PARALLEL 22.5...
-
Page 14: Operation
Models: CAST18R, CAST24R, CAST32R OPERATION Plug in the unit to a socket outlet. Make sure the power supply corresponds to the ratings on the data plate of the appliance. Press Main Switch on left side of the heater. The mark ”-” in the digital display starts flashing showing the heater is on standby. -
Page 15: Warranty
Models: CAST18R, CAST24R, CAST32R WARRANTY Two Year Warranty This Warranty against defects for your newly purchased Cannon outdoor heating product is proudly prepared by IXL Home Pty Ltd of 1/391 Boundary Rd, Truganina, VIC 3029, phone 1300 727 421. Cannon outdoor heating products come with guarantees that do not exclude the following consumer entitlements under the Australian Consumer Law &... - Page 16 IXL Home Authorised Dealer or Reseller and proof of such purchase can be presented at the time of service; b. only applies to Cannon outdoor heating products purchased in Australia or New Zealand from a IXL Home Authorised Dealer or Reseller;...
- Page 17 Models: CAST18R, CAST24R, CAST32R WARRANTY IXL Home will contact you to make arrangements for a replacement product, if applicable. Subject to Point 1, you will be responsible for any costs relating to the provision of your product to a IXL Home Authorised Service Dealer.
- Page 18 Models: CAST18R, CAST24R, CAST32R CAST18R CAST24R CAST32R Whilst every effort is made to provide current information at the time this brochure was produced, continuing product improvements mean the enclosed specifications, images and literature may differ from what is actually available.
- Page 20 Distributed by The Home of Premium Brands AUSTRALIA 1/391 Boundary Road Truganina VIC 3029 1300 727 421 1300 727 425 contact@ixlhome.com.au cannonappliances.com.au NEW ZEALAND 0800 727 421 contact@ixlhome.co.nz cannonappliances.co.nz...
